Product overview
C9900-G05x 15Version: 1.0
2
3
4
2
1
1

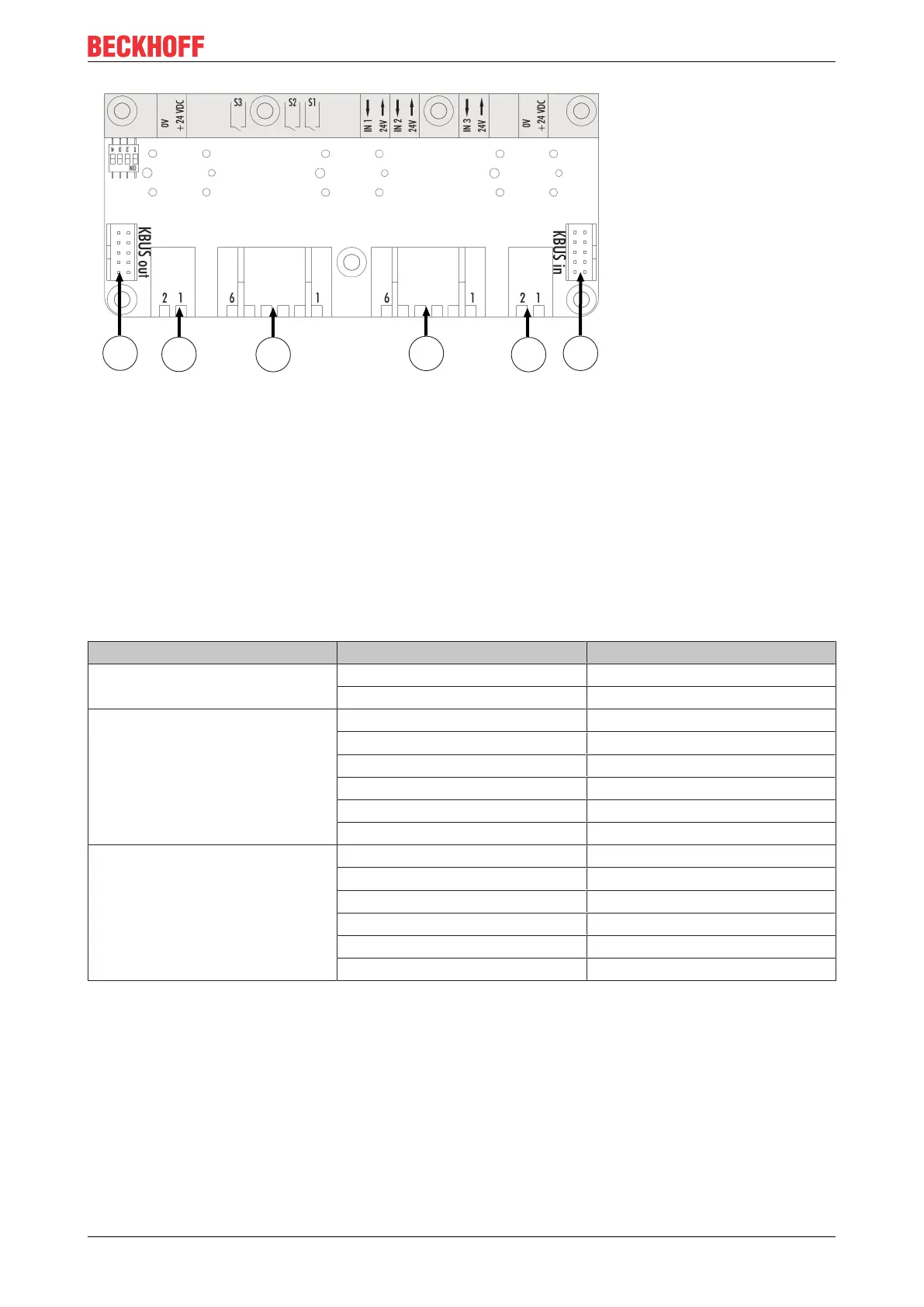

Fig.4: A919 3-button board
The 3-button board has two K-bus interfaces 1, CON400 & CON401. "KBUS IN" connects the board to the
USB-to-KBUS coupler and transmits one make contact and the LED per button. A jumper must be set on
"KBUS OUT" as the terminating resistor. The external connection strips 2, CON600 & CON601, are used to
supply power to the indicator lamps.
The second contact of each push-button is wired to the 19-pin round connector via connection strip 3,
CON603.
Three digital inputs are available on connection strip 4, CON602, which can be assigned ex factory.
Table8: Assignment of connection strip - A919 three-button board
Connection strip Terminal point Description
2 1 24 V DC
2 0 V
3 1 Input make contact 1
2 Output make contact 1
3 Input make contact 2
4 Output make contact 2
5 Input make contact 3
6 Output make contact 3
4 1 24 V output
2 Digital input 1
3 24 V output
4 Digital input 2
5 24 V output
6 Digital input 3
4-button board for the C9900-G054 and C9900-G056 (red, green, blue and white push-buttons)
