Beckhoff KL2 Series User Manual

Product overview
KL2xxx and KS2xxx 17Version: 3.0.0
2.3.3 KL2134 - LEDs and connection

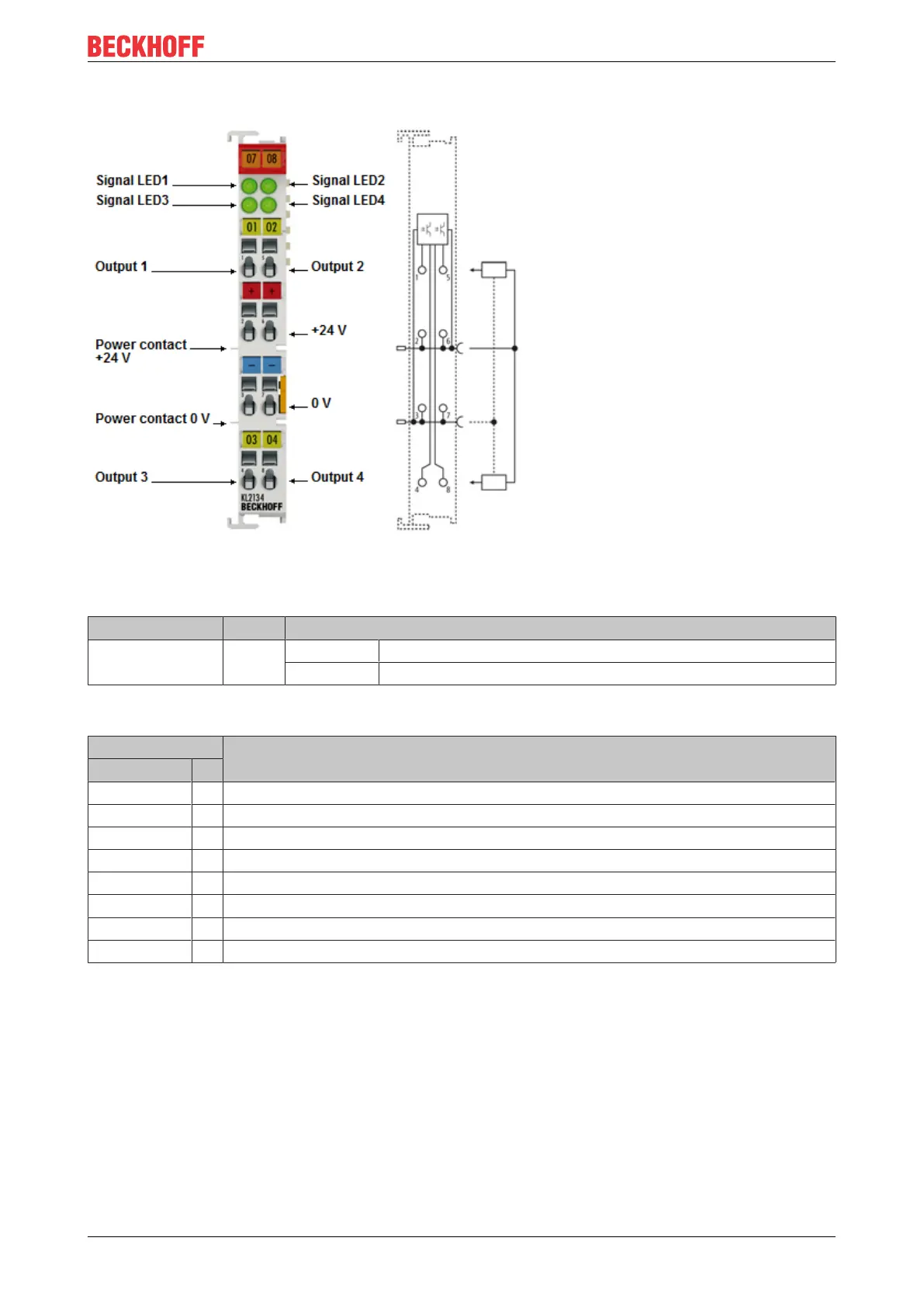

Fig.10: KL2134 - LEDs and connection
KL2134 - LEDs
LED Color Meaning
Signal LEDs 1 - 4 green off Signal voltage "0"
on Signal voltage "1"
KL2134 - Connection
Terminal point Description
Name No.
Output1 1 Output 1
+24V 2 +24V (internally connected to terminal point 6 and positive power contact)
0V 3 0V (internally connected to terminal point 7 and negative power contact)
Output3 4 Output 3
Output2 5 Output 2
+24V 6 +24V (internally connected to terminal point 2 and positive power contact)
0V 7 0V (internally connected to terminal point 3 and negative power contact)
Output4 8 Output 4
