KS2000 Configuration Software

KL6031/KS6031, KL6041/KS604128 Version: 2.1.0

4.4 KL6031 - Common Settings

Common Settings tab for parameterization of the KL6031.

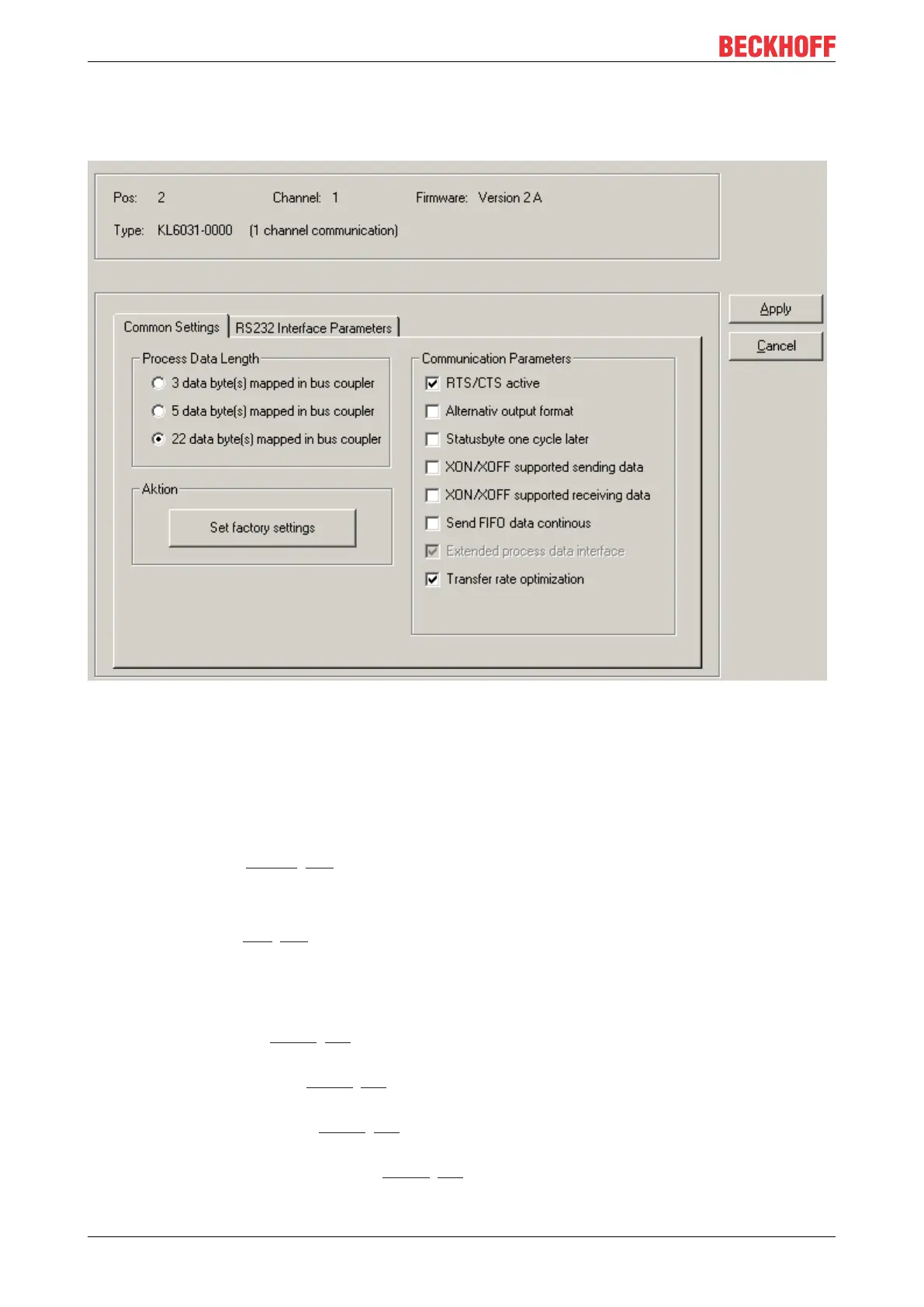

Fig.17: Settings via KS2000

General

Take Settings for all channels of this terminal

The settings made are adopted for all channels of the terminal (default: deactivated).

Process Data Length (R34.7 [

}

39])

Here, you can set the user data length (3, 5 or 22bytes) of the process data image (default: 22bytes).

Set Factory Settings (R7 [

}

38])

Here, you can restore the terminal's factory settings and save them with "Apply".

Communication Parameters

• RTS/CTS activated (R34.0 [}39]),

(default: activated)

• Alternative output format (R34.1 [}39]),

(default: deactivated)

• Status byte one cycle later (R34.2 [}39]),

(default: deactivated)

• XON/XOFF supported sending data (R34.3 [}39]),

(default: deactivated)

Beckhoff KS6031 User Manual
