KS2000 Configuration Software

KL6031/KS6031, KL6041/KS6041 29Version: 2.1.0

• XON/XOFF supported receiving data (R34.4 [}39]),

(default: deactivated)

• Send FIFO data continuously (R34.6 [}39]),

(default: deactivated)

• Extended process data interface (R34.7 [}39]),

(set automatically)

• Transfer rate optimization (R34.8 [}39]),

(default: activated)

4.5 KL6041 - Common Settings

Common Settings tab for parameterization of the KL6041.

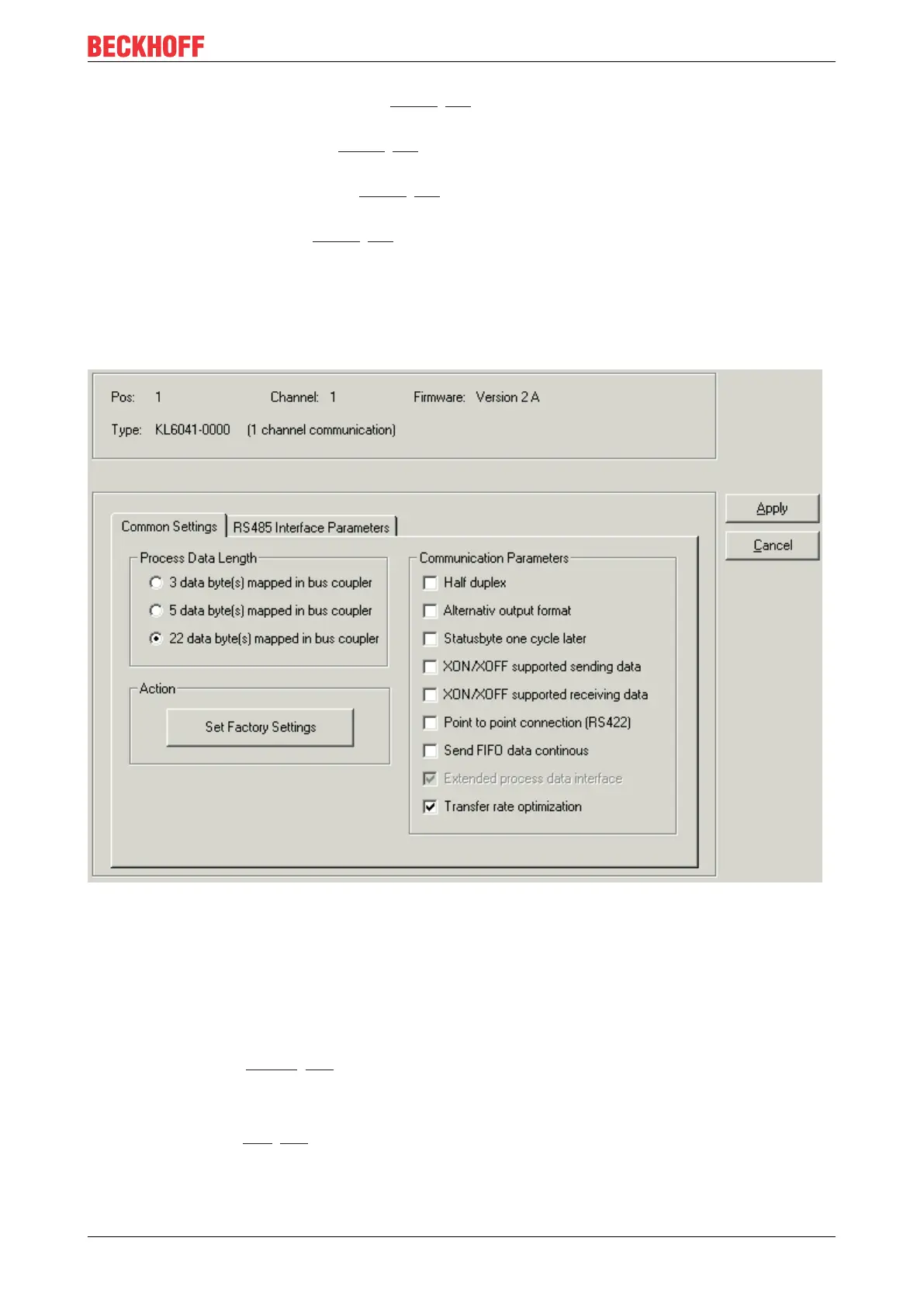

Fig.18: Settings via KS2000

General

Take Settings for all channels of this terminal

The settings made are adopted for all channels of the terminal (default: deactivated).

Process Data Length (R34.7 [

}

39])

Here, you can set the user data length (3, 5 or 22bytes) of the process data image (default: 22bytes).

Set Factory Settings (R7 [

}

38])

Here, you can restore the terminal's factory settings and save them with "Apply".
