Front view Side view
Step 5: To securely fix the connector between two graphics cards, a
retention bracket must be installed.
Step 5-1: Remove any of the bracket cover between the two graphics
cards.
Step 5-2: Align and insert the retention bracket into the slot and then fix it
with a screw.
Notice:
1. Make sure the retention bracket supports the Dual Video Bridge
(BRI-2) firmly.
2. Dual Video Bridge (BRI-2) connector and retention bracket are
optional.
5.3 THINGS TO NOTICE
Normal Mode:
Only PCI-Ex16 slot supports PCI-Express x16 interface graphics
card function.
PCI-EX slot supports PCI-Express x4 interface expansion card
function.
Dual Video Mode:
Use Dual Video Bridge (BRI-2) connector to link two identical
PCI-E x16 interface graphics cards that are NVIDIA certified.
Coordinate with graphics card driver to set Dual Video function.

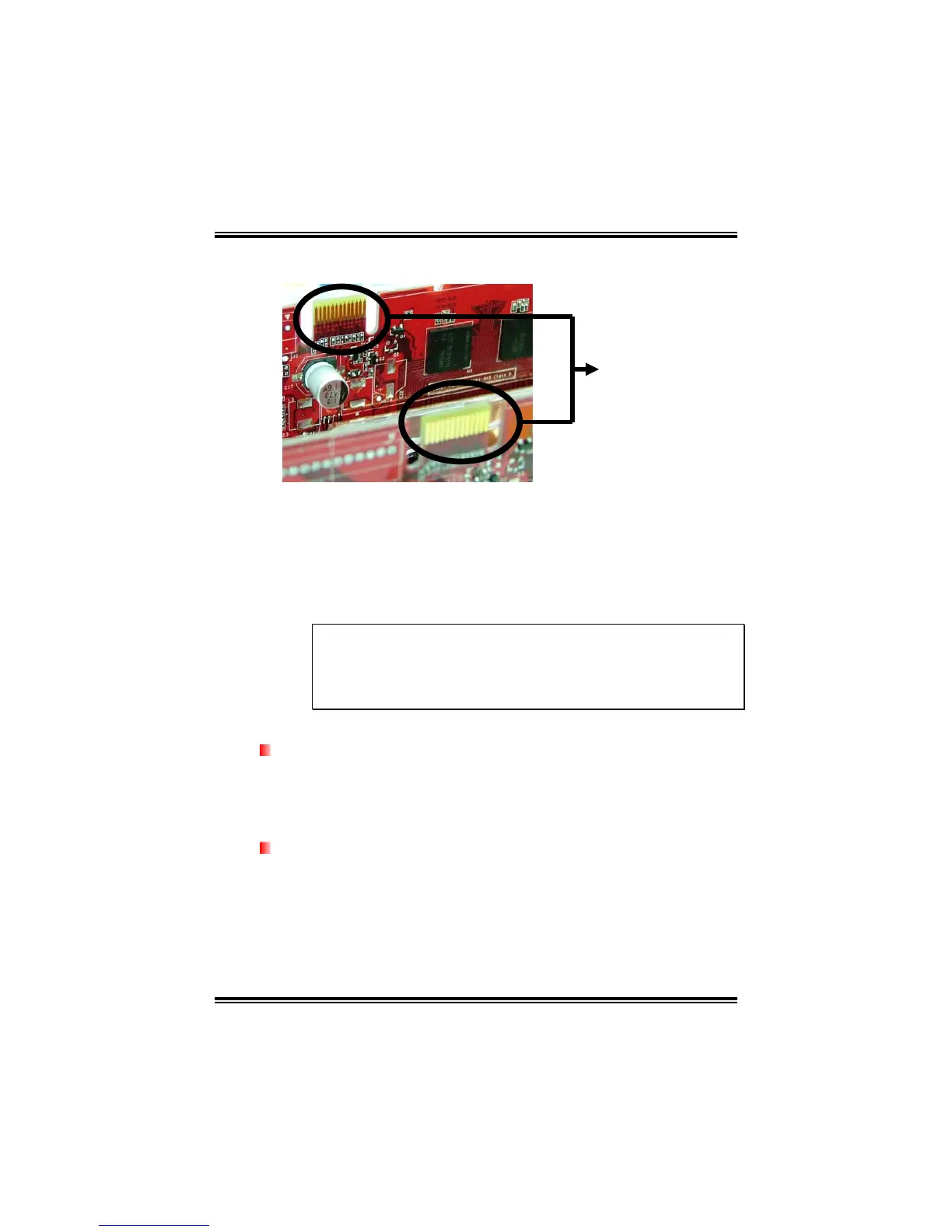

Gold-fingers on
two graphics
To Next Page
