5

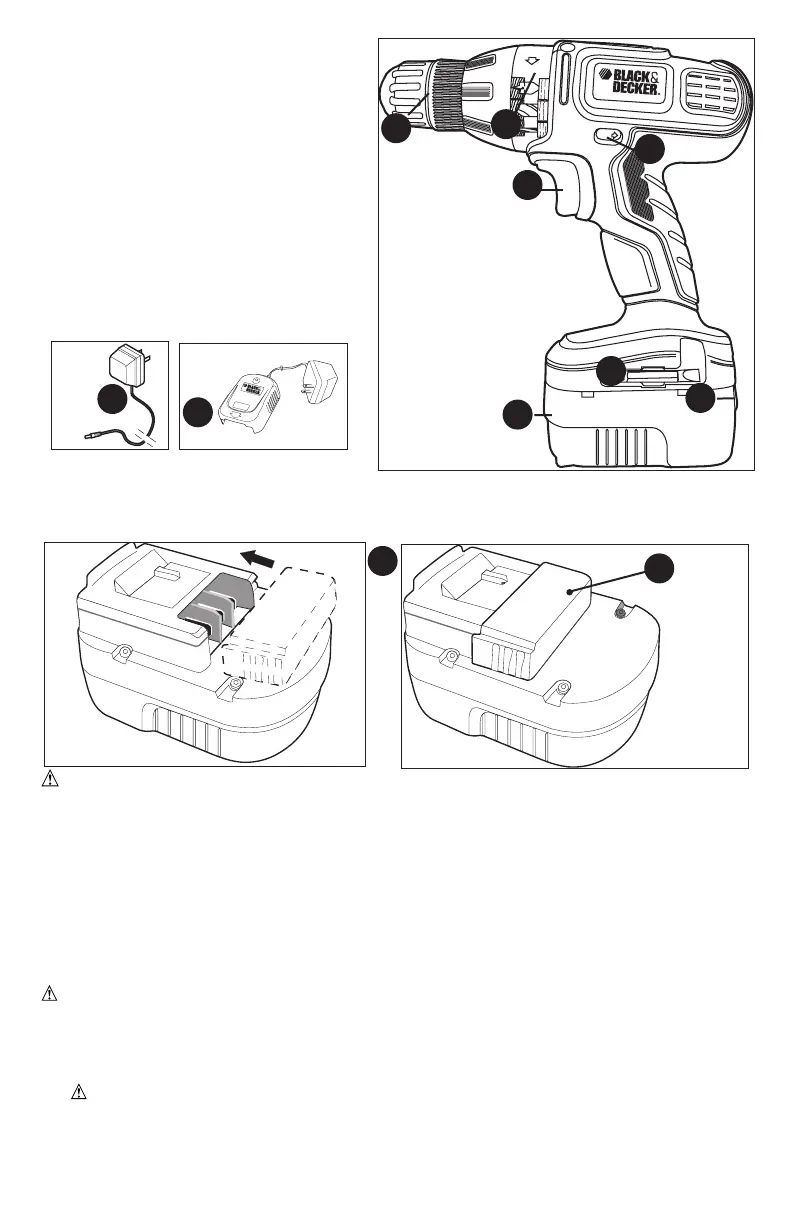

FUNCTIONAL DESCRIPTION
1. Variable speed switch
2. Forward/reverse slider
3. Optimal performance selector (clutch)
4. Chuck
5. Battery
6. Jack Plug Charger
7. Cup Charger
8. Screwdriver bit holder
9. Battery release button
7
6
BATTERY CAP INFORMATION FIGURE A
Battery pack storage and carrying caps (11) are provided for use whenever the battery pack
is out of the tool or charger. Remove cap before placing battery pack in charger or tool.
WARNING: Do not store or carry battery pack so that metal objects can contact
exposed battery pack terminals. For example, do not place battery pack in aprons,
pockets, tool boxes, product kit boxes, drawers, etc. with loose nails, screws, keys, etc.
without battery cap. Transporting batteries can possibly cause fires if the battery pack
terminals inadvertently come in contact with conductive materials such as keys, coins,
hand tools and the like. The US Department of Transportation Hazardous Material
Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes
(i.e. packed in suitcases and carryon luggage) UNLESS they are properly protected from
short circuits. So when transporting individual batteries, make sure that the battery pack
terminals are protected and well insulated from materials that could contact them and
cause a short circuit.
Safety Warnings and Instructions: Charging the Battery pack
1. This manual contains important safety and operating instructions.
2. Before using battery charger, read all instructions and cautionary markings on (1)
battery charger, (2) battery pack, and (3) product using battery pack.
3. CAUTION: To reduce the risk of injury, charge only Black & Decker Power Packs.
Other types of batteries may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by Black & Decker may result in a
risk of fire, electric shock, or injury to persons.
A
11
1
3
2
4
5
8
9
