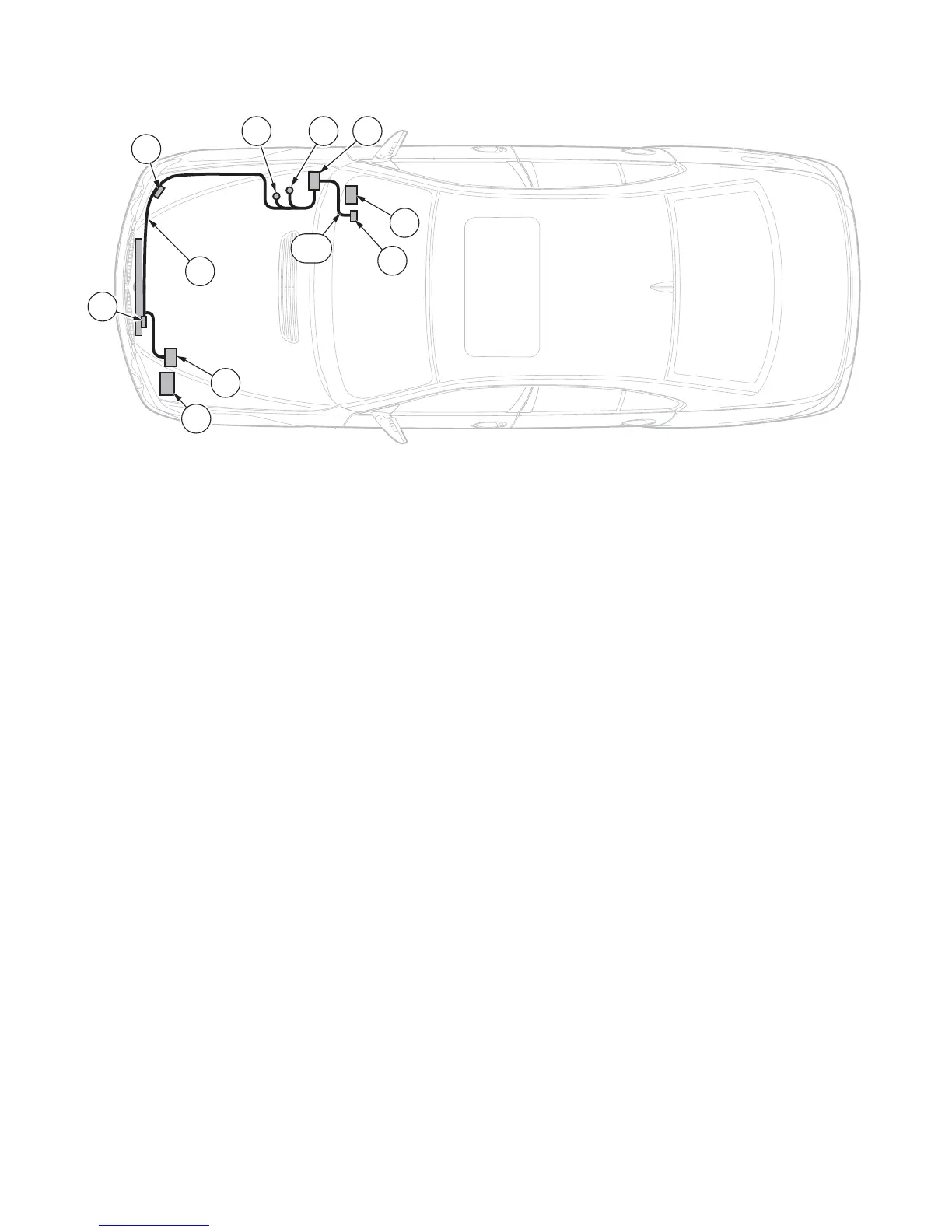

5. Installation and cabling diagram for LHD cars
2/201101 29 2 160 471© BMW AG, Munich. (Z/Z) 12
5. Installation and cabling diagram for LHD cars
A
Retrofit wiring harness
B
Electric fan, plug X18193
C
Additional radiator
K
Fan relay, plugs X17278, X17279 and X1798
BA
Fan relay auxiliary cable (only for cars built before 3/07)
1 Fuse holder A6
2 Strut tower earth support point X175
3 B+ post X2219
4 E-Box (DME control unit A6020 and original fan relay)
5 Fuse holder front, fuse F92
6 Glovebox light E42a (only cars built before 3/07)
E65
A
3 42
1
C
B
K
5
6
BA
090 1487 Z
