13. Installing the fan relay
2/201101 29 2 160 471© BMW AG, Munich. (Z/Z) 25
13. Installing the fan relay

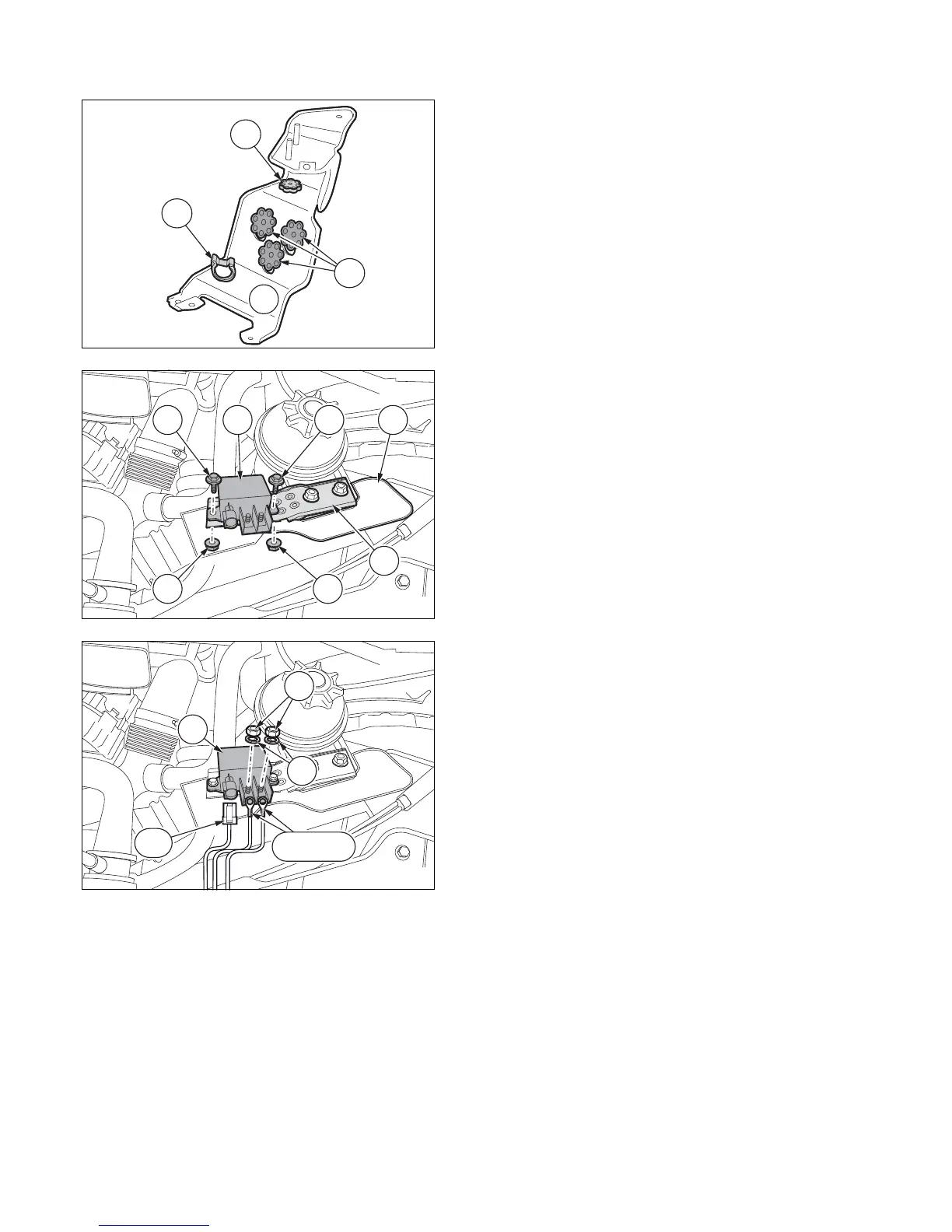

Transfer existing rubber bearing (1) and hose holder (2) of
the removed servo oil tank holder to servo oil tank holder N.
Insert rubber bearing O in servo oil tank holder N.
Install servo oil tank holder N using the original nuts and
original screw.
Using the original nuts, screw fan relay holder J onto
servo oil tank holder N.
Use hexagon screws R and hexagon nuts with collar S
to secure fan relay K to fan relay holder J.
Connect branches A7–A8 using hexagon nuts X and
spring circlips Y to fan relay K.
Connect branch A9 to fan relay K.
