11. Modifying the wheel arch cover
2/201101 29 2 160 471© BMW AG, Munich. (Z/Z) 23
11. Modifying the wheel arch cover
The installation of radiator grille AD is shown as an example.
On E92/E93 LCI cars with M bumper and fog light, the geometric shape differs from the illustrations shown.
Installation must be carried out in a similar fashion.

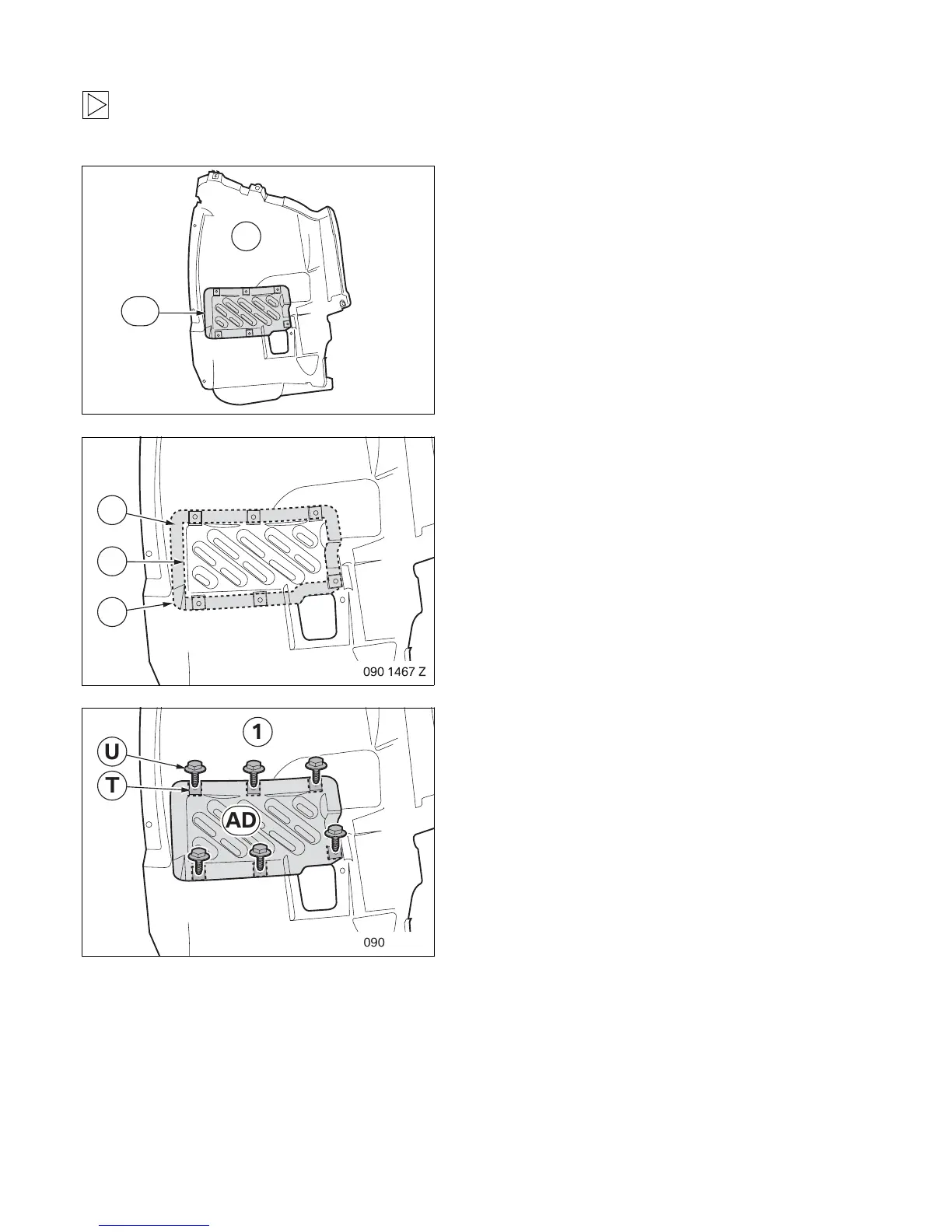

Place radiator grille AD from outside onto the wheel arch
cover (1).
Transfer the contours and holes of radiator grille AD.
Make drill holes of diameter 5 mm.
Mark the cut-out (1) 20 mm inside contour (2) of radiator
grille L and cut out.
Push sheet metal nuts T onto the wheel arch cover (1).
Screw on radiator grille AD using hexagon sheet metal
screws U .
