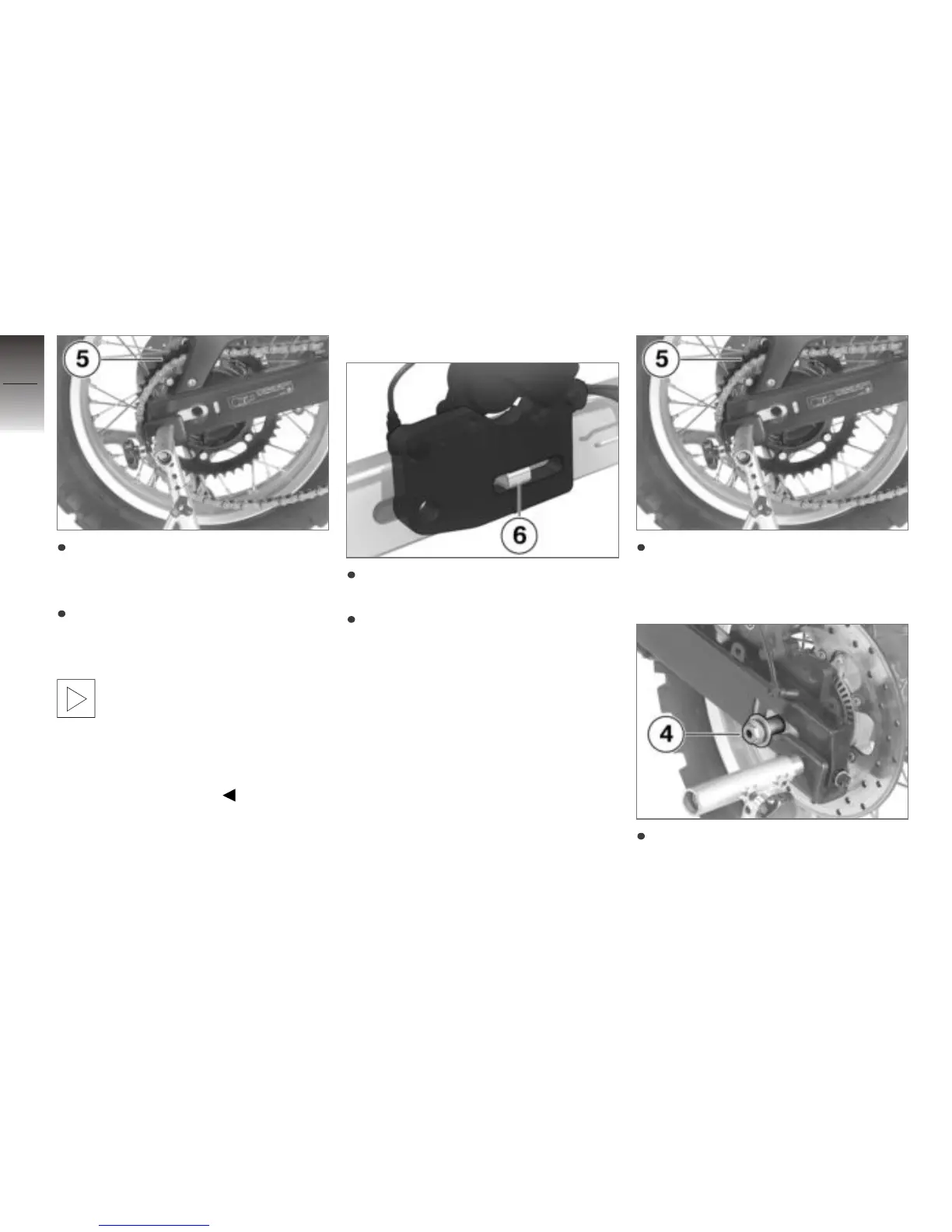

Push wheel as far forward as
possible and remove chain
from chain sprocket 5.
Roll rear wheel out of swing
arm toward rear while holding
brake caliper on left side.
The chain sprocket and
the spacer sleeves on the
left and right are loosely inserted
in the wheel. When removing,
make sure that these parts are
not damaged or lost.
Installing rear wheel
Make sure that brake caliper
runs in guide 6.
Roll rear wheel into swing arm
while guiding brake rotor be-
tween brake pads.
Roll rear wheel as far forward
as possible and lay chain on
chain sprocket 5.
Raise the rear wheel (or sup-
port it with a suitable wooden
block) and guide the quick-re-
lease axle 4 through the swing
8
78
z
Maintenance
