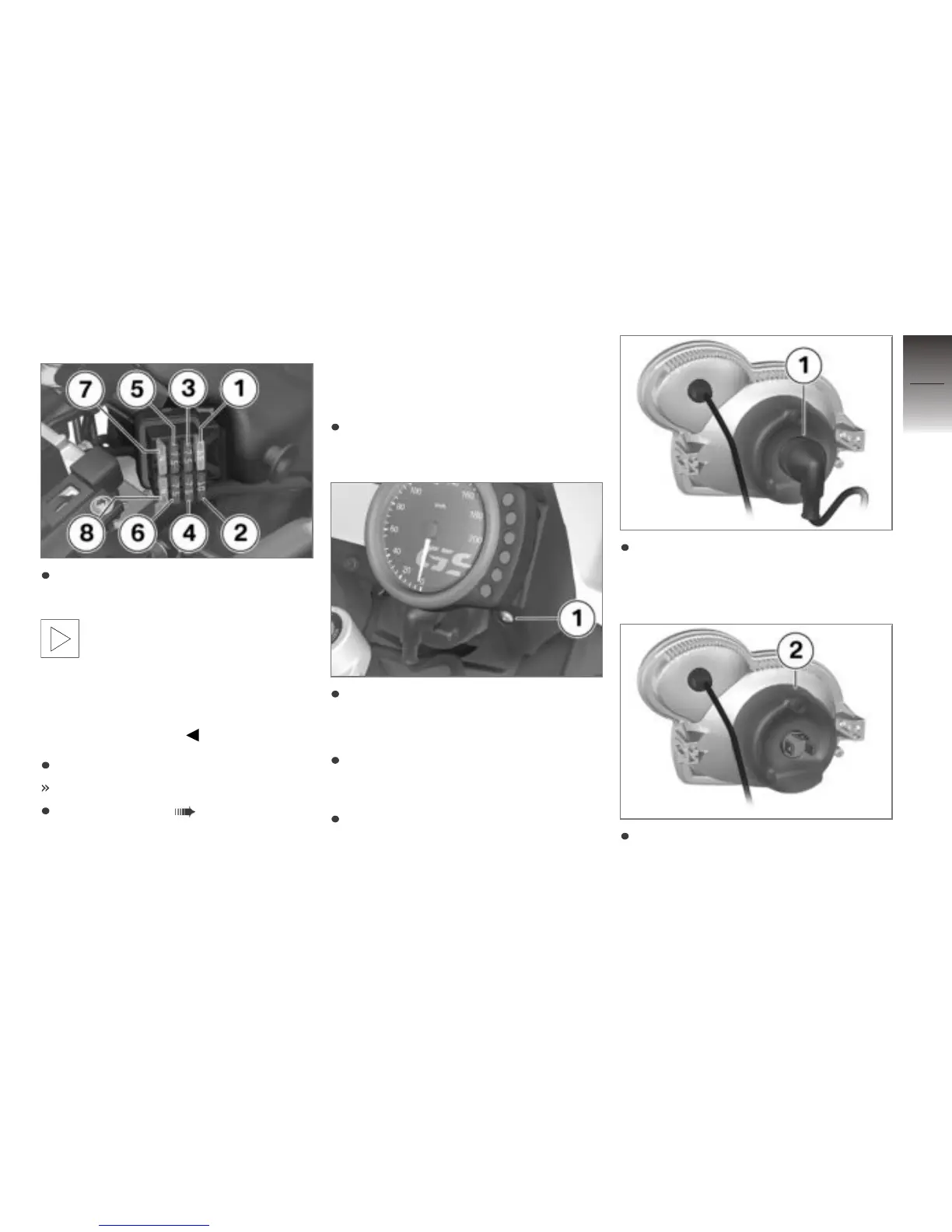

Installing fuse
Replace defective fuse with
fuse with required amperage.
An overview of the fuse as-
signment and the required
amperages is provided in the
chapter "Technical Data". The
numbers in the graphic match
the fuse numbers.
Close fuse cover.
Latch audibly engages.
Installing seat ( 39).
Lamps
Replacing low-beam and
high-beam bulb
Make sure ground is level and
firm and park motorcycle.
Remove screw 1 and pull in-
strument cluster upward out of
holders.
Set down instrument cluster on
side.
Switch off ignition.
Pull off connector 1 while brac-
ing on bulb located below rub-
ber cap.
Remove rubber cap 2.
8
81
z
Maintenance
