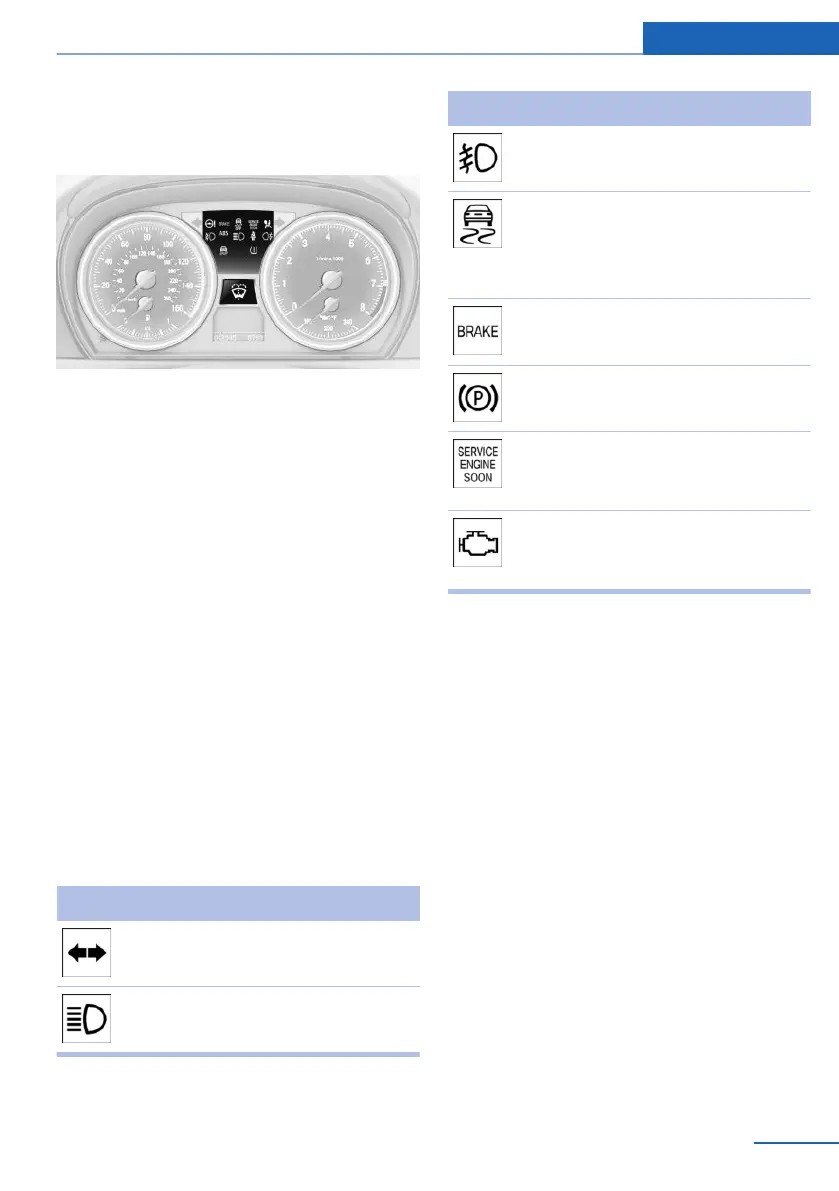

Indicator/warning lamps
The concept
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning when the engine is started or the ig‐
nition is switched on, and light up briefly.
Text messages
Text messages at the upper edge of the Control
Display explain the meaning of the displayed in‐
dicator and warning lamps.
Supplementary text messages
You can call up more information, e.g., on the
cause of a malfunction and on how to respond,
via Check Control, refer to page 77.
In urgent cases, this information will be shown
as soon as the corresponding lamp comes on.
Indicator lamps without text messages
The following indicator lamps notify you that
certain functions are active:
Symbol Function or system
Turn signals, refer to page 59
High beams/headlamp flasher, refer
to page 82
Symbol Function or system
Front fog lamps, refer to page 83
Lamp flashes:
DSC or DTC is regulating the propul‐
sive forces in order to maintain driv‐
ing stability, refer to page 94
The handbrake is set, refer to
page 58
Canada: the parking brake is set, re‐
fer to page 58.
Engine malfunction with adverse ef‐
fect on emissions, refer to
page 244
Canada: engine malfunction with ad‐
verse effect on exhaust emissions,
refer to page 244
