20© BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
7. To install the fan cable (cars without an additional fan in the boot only)

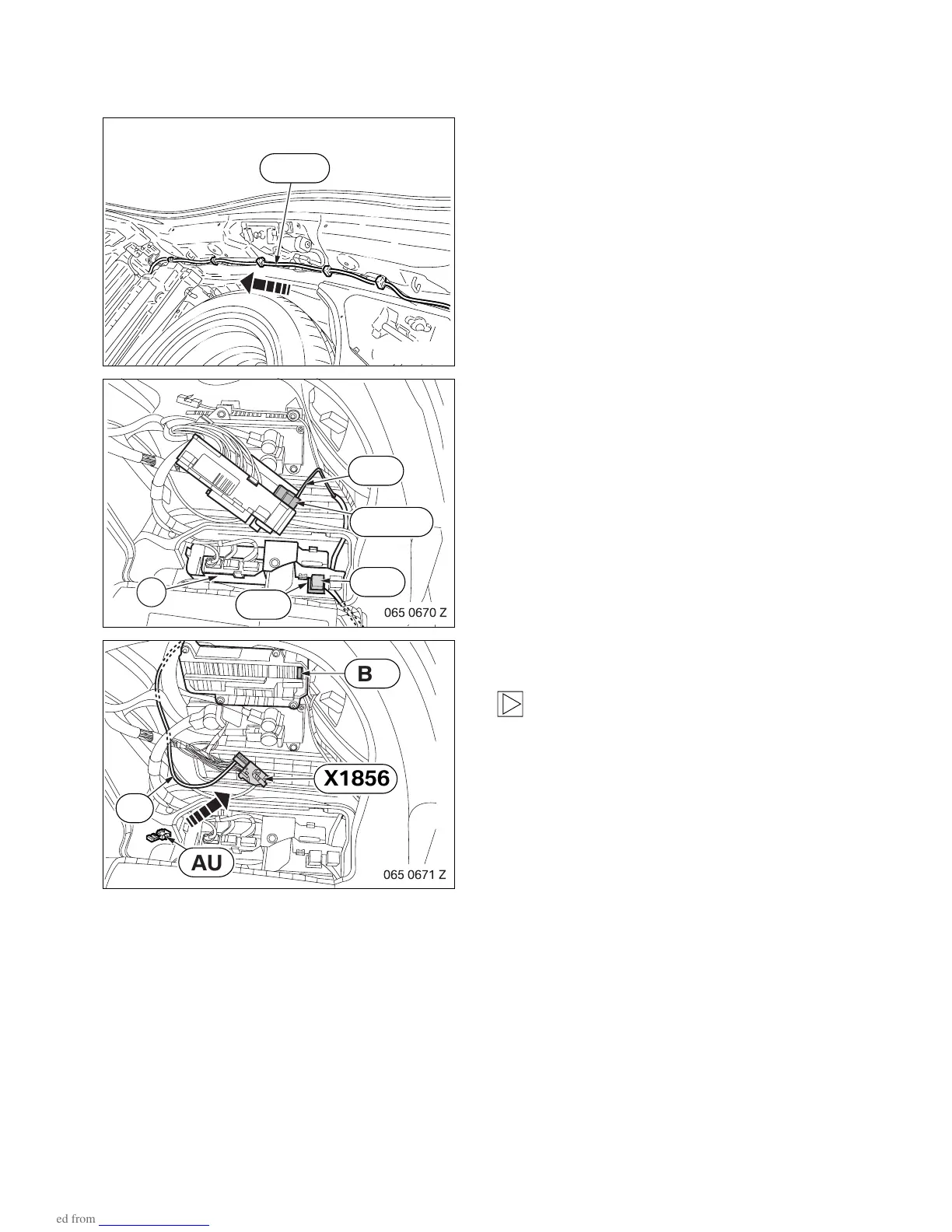

Route branches I4and I6 to the right-hand side of
the boot.
Connect branch I4 to the control module holder (1).
Connect relay BF to branch I4.
Connect branch I5, RT/BL cable, to PIN 1 of plug
X4844, 5-pin SW.
Connect branch I6, GE/RT cable, to PIN 18 of
plug X1856, 32-pin SW.
If pin chamber 18 is occupied, use a mini-
ature connector AU to connect branch I6
to the GE/RT cable from PIN 18.

Insert fusible link BG into slot 71.
I4-I6
065 0740 Z
1
I4
I5
BF
X4844
065 0670 Z
X1856
AU
BG
I6
065 0671 Z
