21© BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

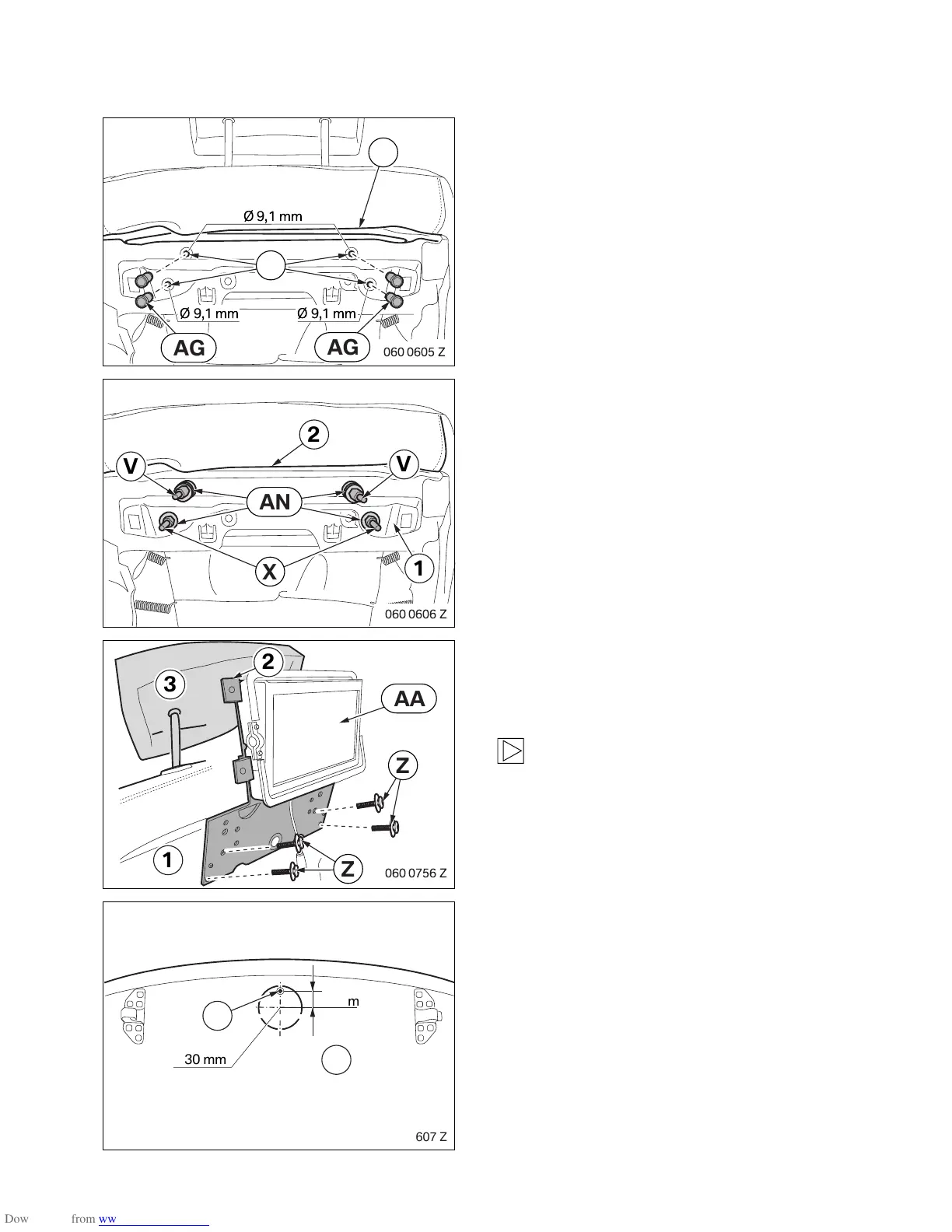

8. To install the monitor
Slide the seat backrest cover (1) upwards.
Enlarge the existing holes (2) using a 9.1 mm
twist drill bit.
Insert rivet nuts AG.
Secure spacer bolts
X
to the seat backrest (1) with
one washer each
AN
and
spacer bolts
V
to the
seat backrest (1) with
four washers each AN
.
Move the seat cover (2) to its initial position.
Cut the seat cover (2) around the spacer bolts
using a knife.
Secure the monitor AA to the seat backrest (1)
using Torx screws Z.
The distance form the top of the monitor support
plate (2) to the headrest (3) must be approx. 10 mm.
The distance can be adjusted by removing
the washers AN or replacing the spacer
bolts V with spacer bolts W. At least one washer
AN must be fitted for each spacer bolt V or W.
Unscrew the monitor AA again
Cars without SA 456 only
Mark the hole at marking (1) on the inside of the
front seat rear panel (2) using the dimensions
shown.
Drill the hole using a 30 mm step drill.
2
1
Ø 9,1 mmØ 9,1 mm
Ø 9,1 mm
AG
AG
060 0605 Z
X
V
V
1
2
AN
060 0606 Z
2
1
3
AA
Z
Z
060 0756 Z
13 mm
30 mm
2
1
060 0607 Z
