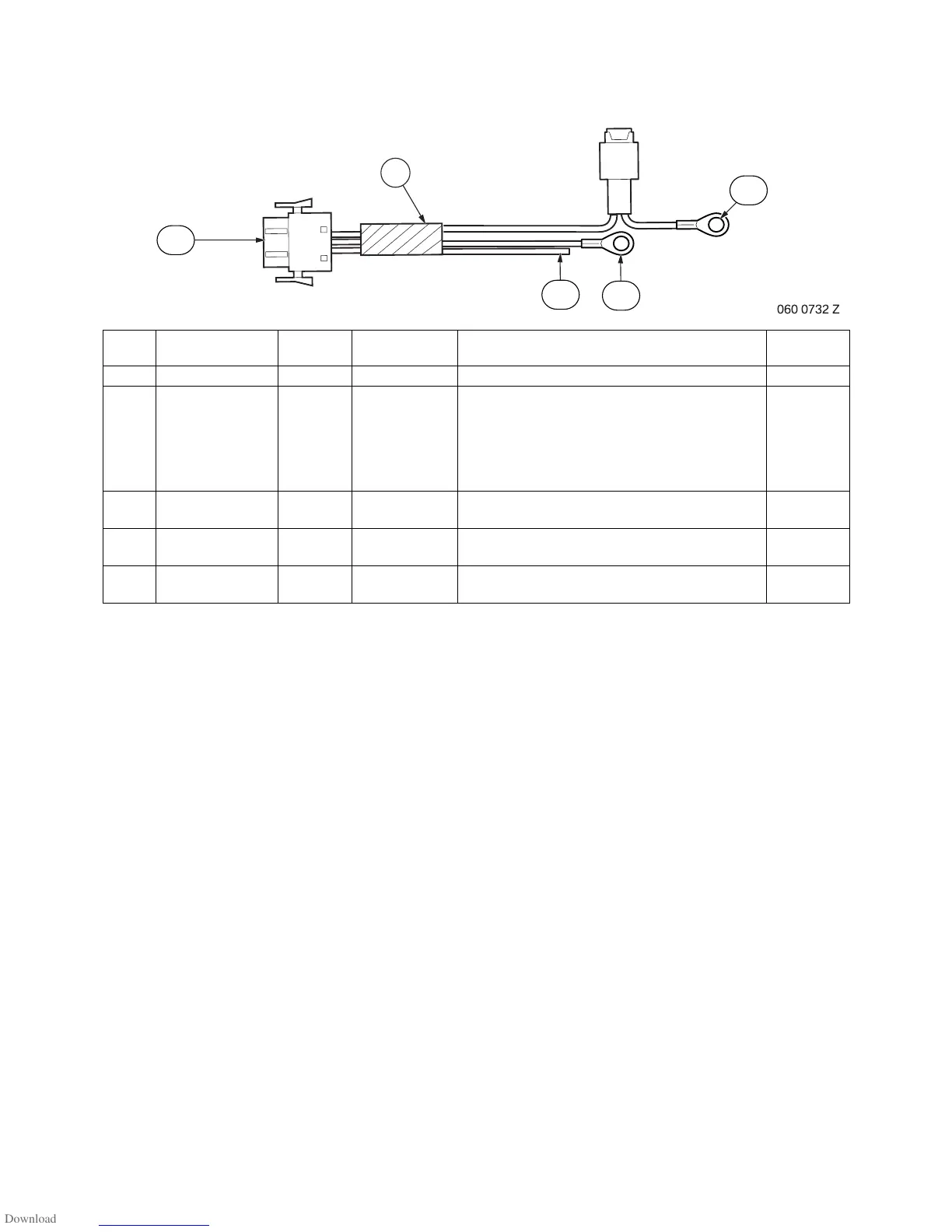

3. Connection diagram
Branch
/Item
Designation Signal Cable colour /
Cross-section
Connection/Installation site
in car
Abbreviation
/ Slot
A Connection cable --- --- --- ---
A1 4-pin plug WS Pin 1
Terminal 31
Pin 2
Terminal VA
Pin 3
Terminal 30
BR
0.75 mm²
VI/WS
0.75 mm²
RT
0.75 mm²
To branch B1
---
A2 Cable eyelet A8 Terminal 30 RT
0.75 mm²
To ca r b a tt e r y
---
A3 Cable eyelet A6 Terminal 31 BR
0.75 mm²
To the earth post in the boot on the left X13094
A4 Open cable Terminal VA VI/WS
0.75 mm²
With miniature connector AU to standard cable, terminal
VA, RT/GE cable, on rear fuse holder.
X1856
Pin 17
A1
A3
A4
A2
A
060 0732 Z
