E93 Complete Vehicle Workbook
Locking Function of Center Console
The storage compartment, contains an actuator motor which locks the storage compartment. This actuator motor is driven directly by the
junction box when central arrest is activated.

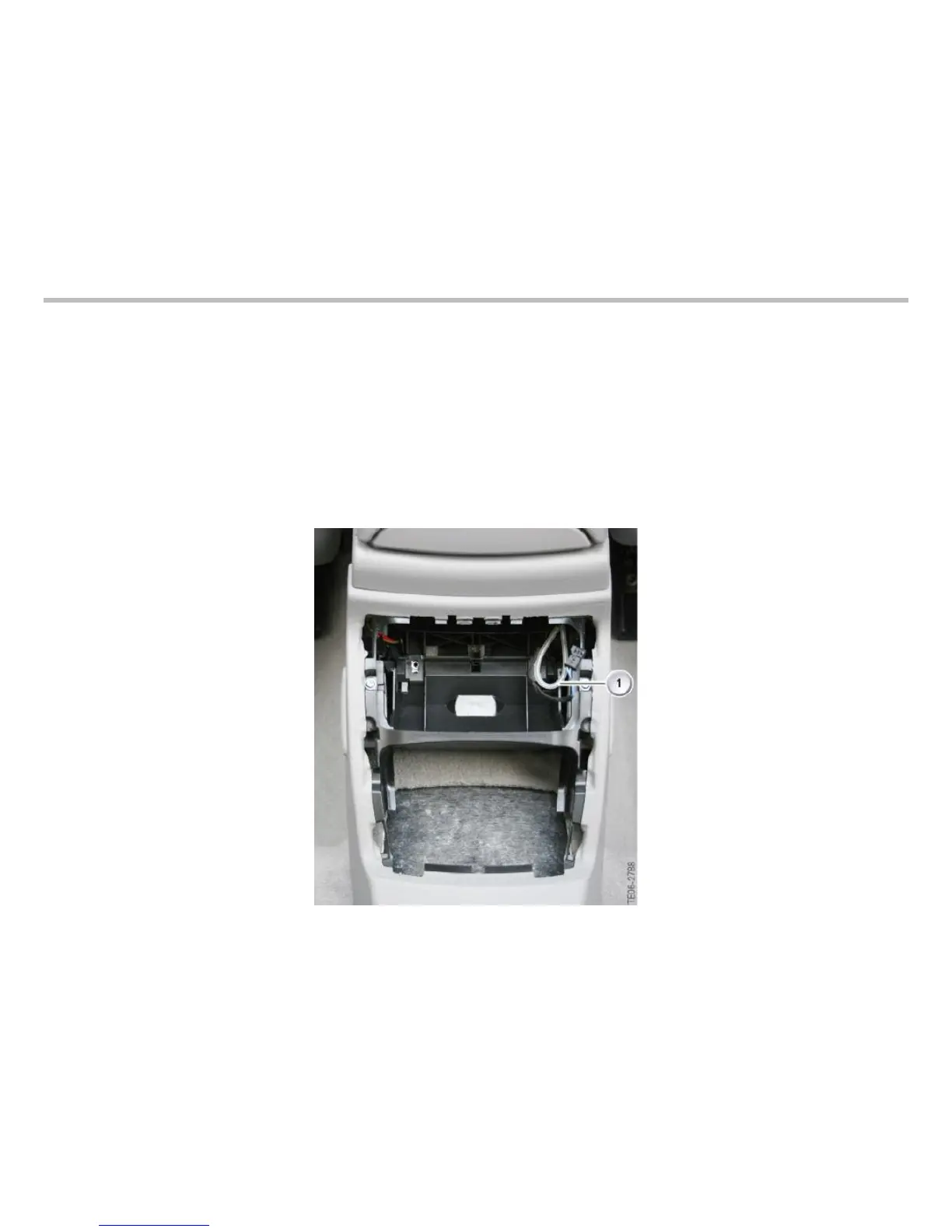

Emergency Release
The storage compartment in the center console can be released by means of a pull cable in the event of the battery discharging or being
defective. For this purpose, the cover must be removed from the rear compartment air outlet, followed by removal of the air outlet.
The storage compartment can then be released by pulling the loop of the pull cable. The central locking system has been adapted to the
specific requirements of the Convertible.
The glove compartment and the storage space in the center console have been integrated in the central locking system. The previous
central locking functions remain unchanged.
