Switch Operation
The RHT is operated by a switch in the center console. The switch
provides a ground input to the CTM for top operation.
The movement of the hard top is carried out as long as the switch
is actuated.
The switch contains two LED’s which indicate the status of the top.
The green LED is illuminated (solid) when the top is moving and
will go out only when the top operation is complete.
The red LED will flash when the switch is released before the top
has completed the full opening or closing operation. If the top
operation is interrupted, operation can be resumed by pressing the
switch until complete (Green LED off).
When the red LED is on continuously (solid), the top is not capable
of operating. This could be due to a malfunction or one of the pre-
conditions is not met. For example, if the luggage compartment
divider not in the fully down position, the red LED will be on contin-
uously as an indication.
When the top is prevented from operation, there will be a check
control message (with CCC), an icon and a gong. This will let the
driver know that there is a condition which is preventing top
operation.
56
E93 Complete Vehicle Workbook

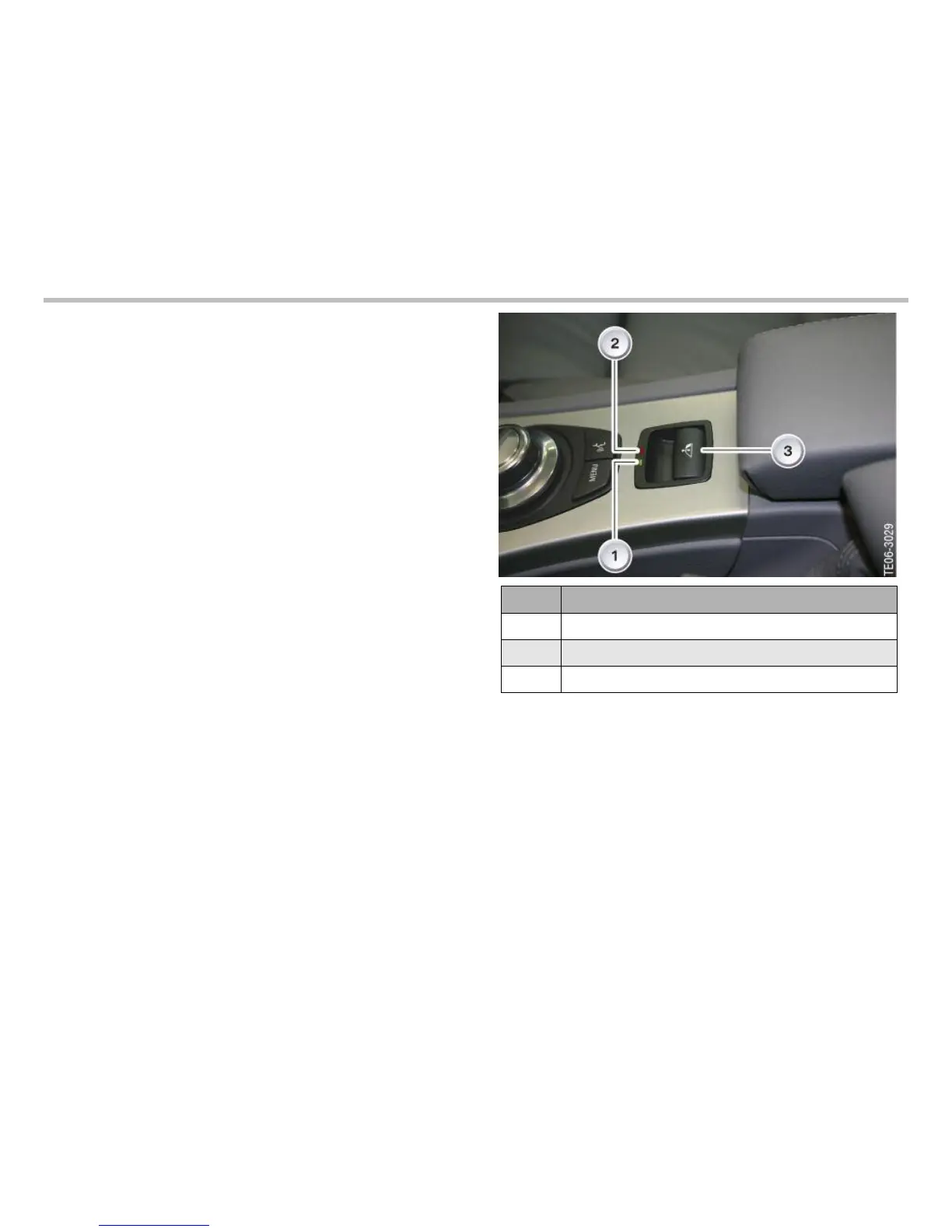

Index Explanation
1
Green LED
2
Red LED
3
Button
Note: The switch on early production vehicles operates
differently than that of later production vehicles.
The early version requires the switch to be pressed in
order to close the top. The top is opened by pulling
the switch up.
On later production models, the operates in the
exact opposite.
