E93 Complete Vehicle Workbook
Drive for Hardtop Locking

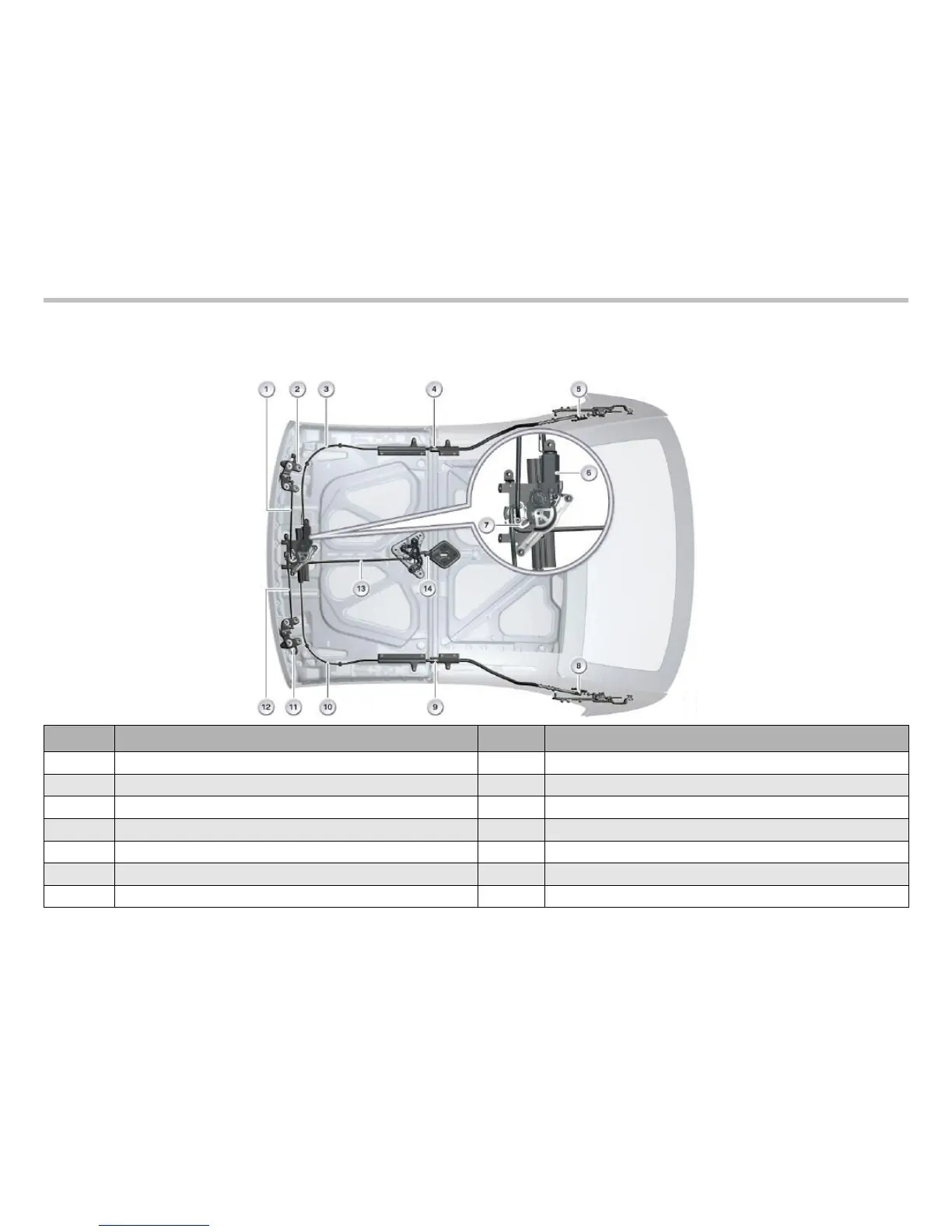

The roof panels of the hardtop are interlocked. In addition, the front roof panel is locked at the cowl panel via two catch hooks.
The electro-motor installed in the center of the front roof panel serves as the drive. The electric motor is activated directly by the CTM.
Index Explanation Index Explanation
1
Connecting rod for right catch hook
8
Locking bolt for center roof panel to rear left roof panel
2
Right catch hook
9
Locking bolt for front center roof panel to center left roof panel
3
Right drive cable
10
Left drive cable
4
Locking bolt for front center roof panel to center right roof panel
11
Left catch hook
5
Locking bolt for center roof panel to rear right roof panel
12
Connecting rod for left catch hook
6
Electric motor
13
Connecting rod for locking hook
7
Control disc
14
Locking hook
