E93 Complete Vehicle Workbook

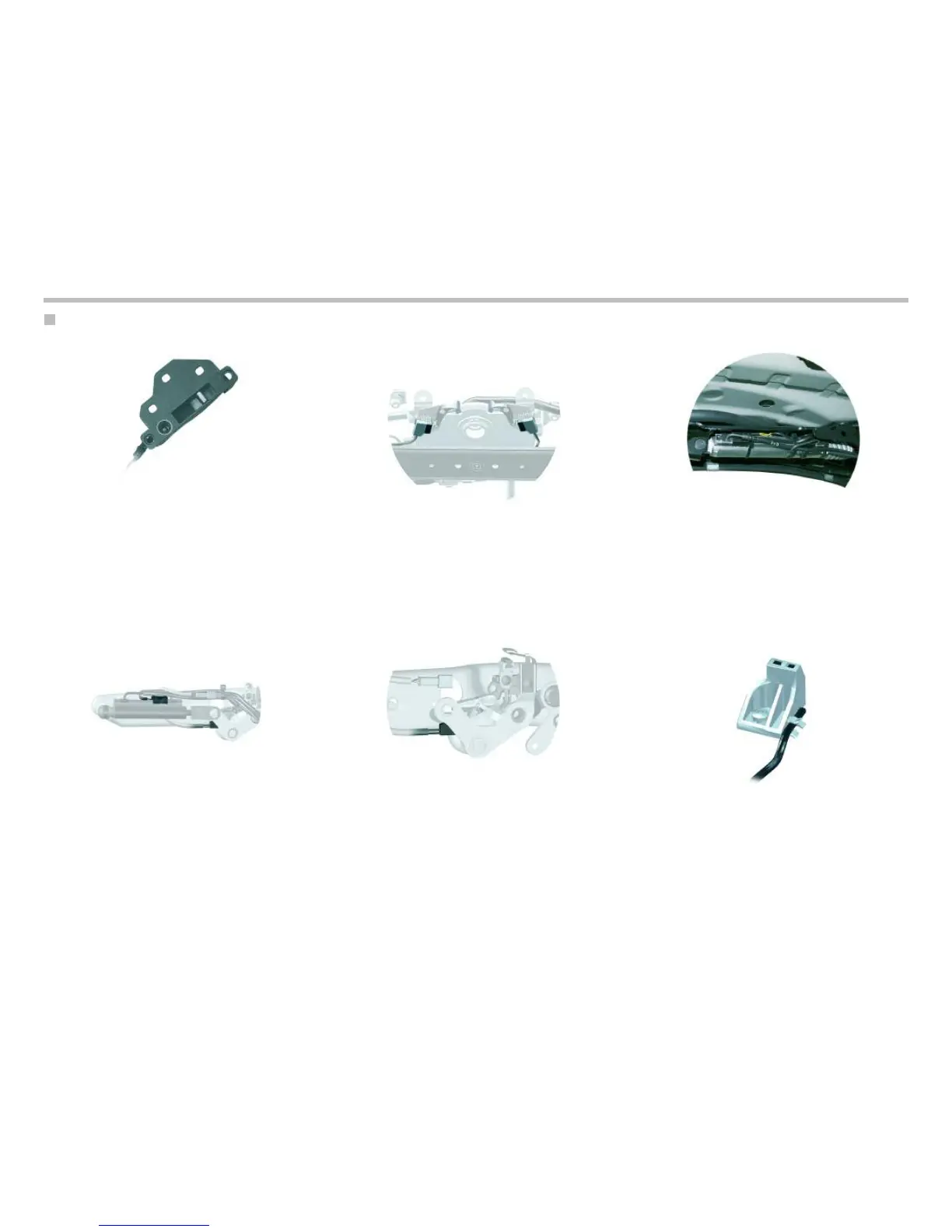

Microswitch and Hall Sensor Locations
“Cowl panel reached” microswitch
This microswitch is built into the left cowl
panel on the vehicle.
“Catch hooks locked” microswitch
“Catch hooks unlocked” microswitch
Both of these microswitches are located below
the electric motor for hardtop locking
“Roof shells partially open”
“Roof shells partially closed”
Hall Sensor
These two hall sensors are located on the right
hand roof shell cylinder
“Right closure open” Hall Sensor
“Right hand closure closed” microswitch
The right hand closure cylinder area contains
both a Hall sensor and a microswitch
“Left hand closure closed” microswitch
The microswitch for “left hand closure closed” is
on the left hand closure cylinder area
“Rear module closed” Hall Sensor
The hall sensor for “rear module closed” is
locat
ed on
the right hand side of the partition for
the RPS system
