workshop, preferably an
authorised BMW Motorrad
dealer.
Headlight beam throw and
spring preload
Headlight beam throw is gener-
ally kept constant when spring
preload is adjusted to suit load.
However, a spring preload ad-
justment might not suffice if
the motorcycle is very heavily
loaded. Under these circum-
stances, headlight beam throw
has to be adjusted to suit the
weight carried by the motorcycle.
If there are doubts about
the correct headlight range,
seek the advice of a specialist
workshop, preferably an author-
ised BMW Motorrad dealer.

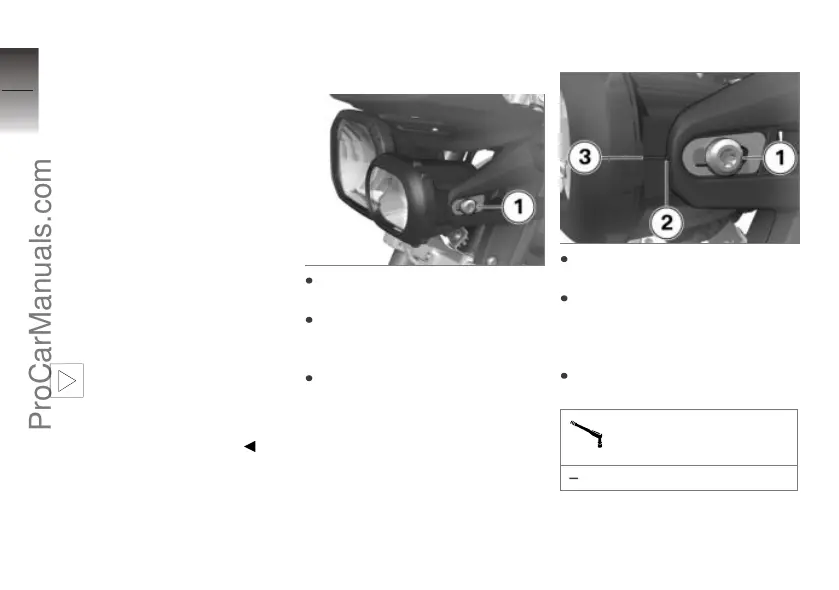

Adjusting headlight beam
throw
Slacken screws 1 on left and
right.
Adjust beam throw by tilting
the headlight slightly about its
horizontal axis.
Tighten screws 1 on left and
right.
Beam-throw basic setting
Slacken screws 1 on left and
right.
Tilt the headlight slightly
about its horizontal axis until
arrowhead 2 is pointing toward
marker 3.
Tighten screws 1 on left and
right.
Headlight to headlight
bracket
8 Nm
