BMW HP2 ENDURO User Manual

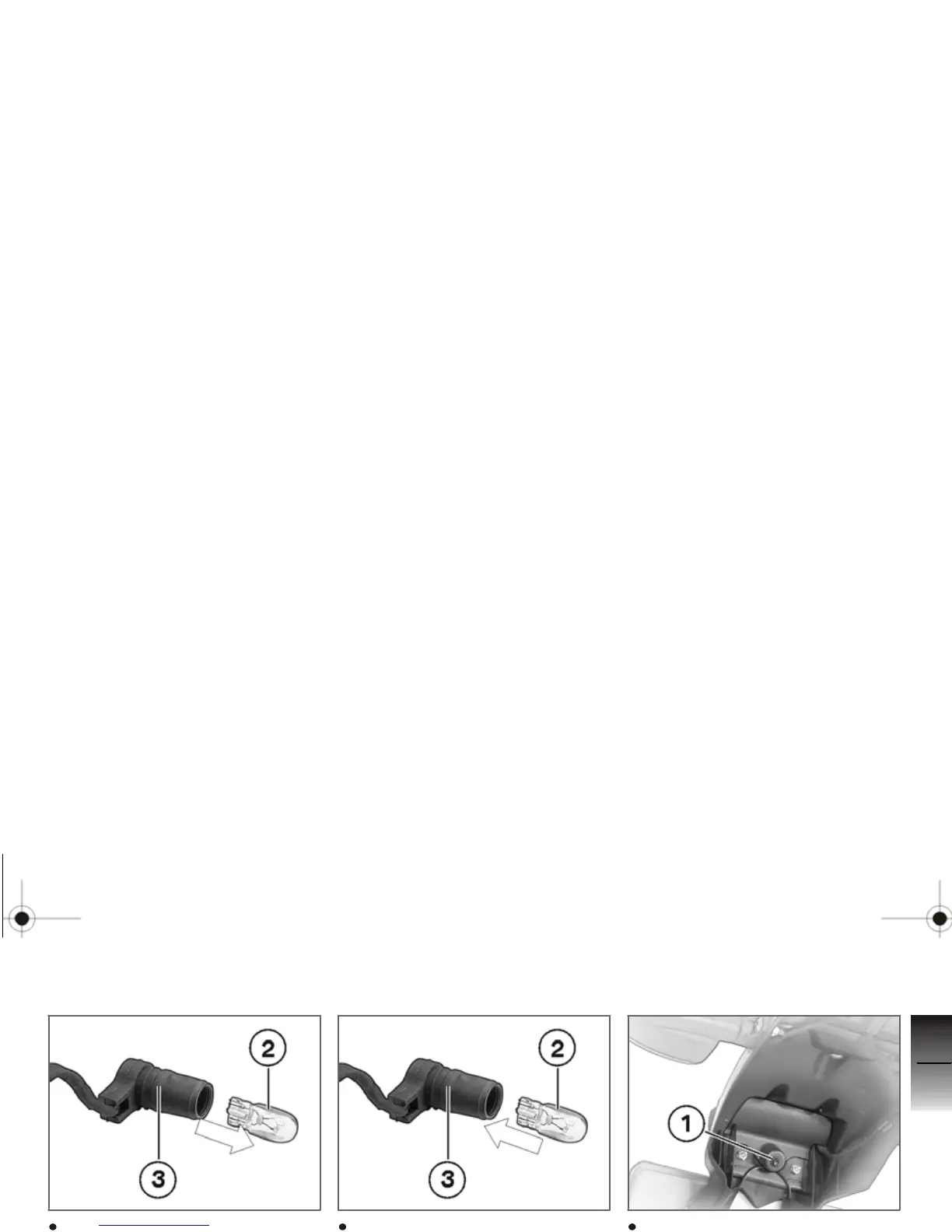

Pull bulb 2 out of socket 3.
Replace the defective bulb.
Bulb of number-plate
light
W5W / 12 V / 5 W
Push bulb 2 into socket 3.
Pull bulb holder 1 into the
light carrier.
Install the cable protector
with screw 1.
Jump starting
The wires leading to the
power socket do not
have a load-capacity rating
adequate for jump-starting
the engine. Excessively high
current can lead to a cable
fire or damage to the vehicle
electronics.
Do not use the on-board
socket to jump-start the
engine of the motorcycle.
7
93
z Maintenance

BMW HP2 ENDURO Specifications

General

Displacement	1170 cc
Dry Weight	175 kg (386 lbs)
Seat Height	920 mm (36.2 inches)
Engine Type	Air-cooled, 4-stroke, flat twin (boxer)
Max Power	105 hp @ 7000 rpm
Max Torque	115 Nm @ 5500 rpm
Transmission	6-speed
Front Brakes	305 mm
Rear Brakes	Single disc, 265 mm, floating caliper
Fuel Capacity	13 liters
