47
R 1200 CL
PDI Procedures - Set Up
R 1200 CL Introduction

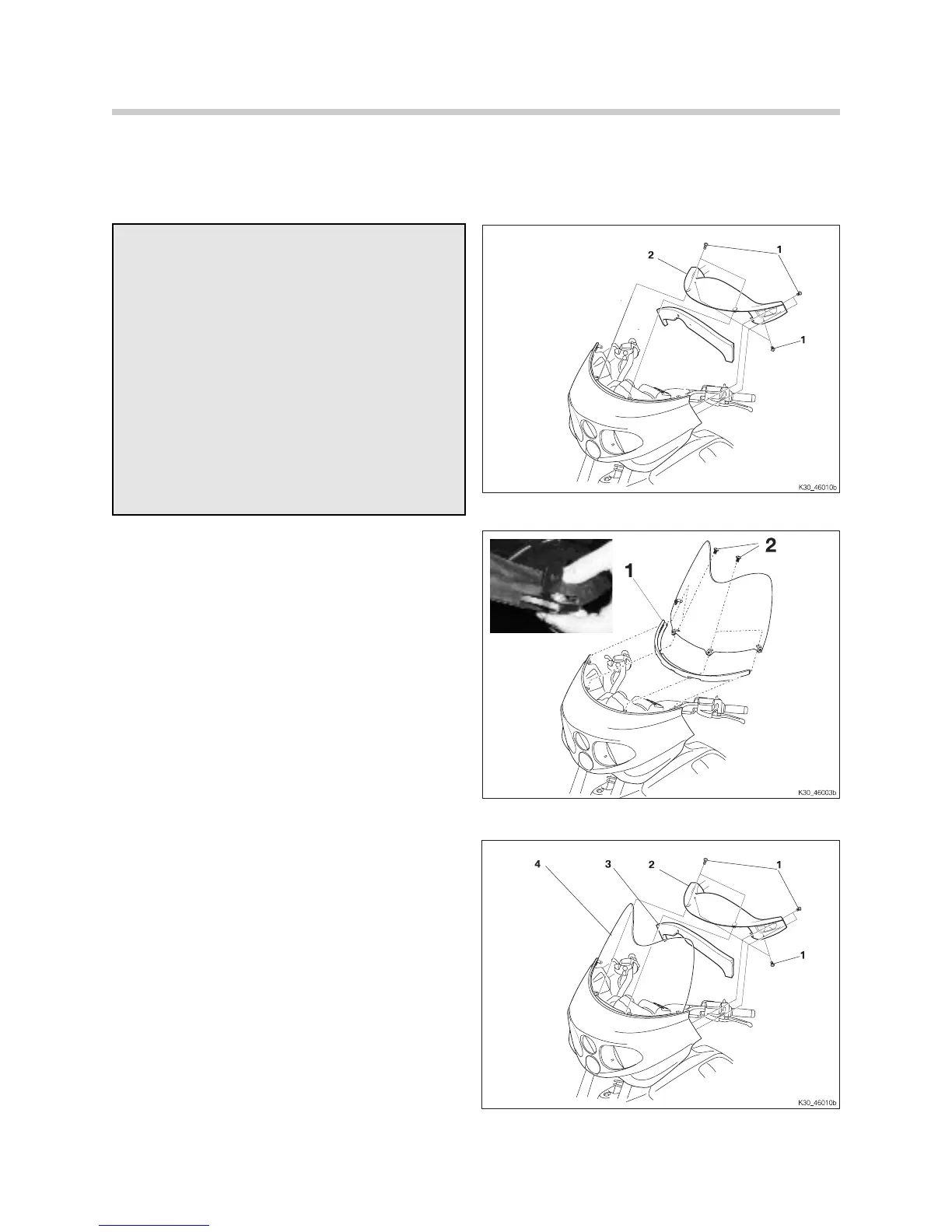

• Top Illustration. Remove the
Instrument panel center trim (2) by
removing securing screws (1).
• Remove foam rubber barrier piece
and place aside.
• Middle Illustration. Assemble the
windshield rubber trim seal (1) at
base of windshield as shown. Use a
soapy water solution to piece the
two parts together ensuring an even
installation.
• Mount windshield/seal assembly
onto fairing area mounting using for
screws (2).
• Make sure seal is evenly spaced on
fairing surface.
• Bottom Illustration. Reinstall rubber
barrier piece (3) and place instru-
ment panel trim (2) into position.
• Inspect all the mating surfaces for
smooth fit. Secure with six screws
(1).
Caution: The R 1200 CL is equipped
with Integral ABS and is in residual brak-
ing mode until the battery has been
installed and the ignition switched on.
Extra braking effort at the lever or pedal
is required to stop the motorcycle when
in residual braking mode.
If the motorcycle is to be moved prior to
battery installation, have someone assist
you moving it through the shop and be
extremely cautious.
Assemble windshield/seal and install
Install Instrument Panel Trim
Remove Instrument Panel Trim
