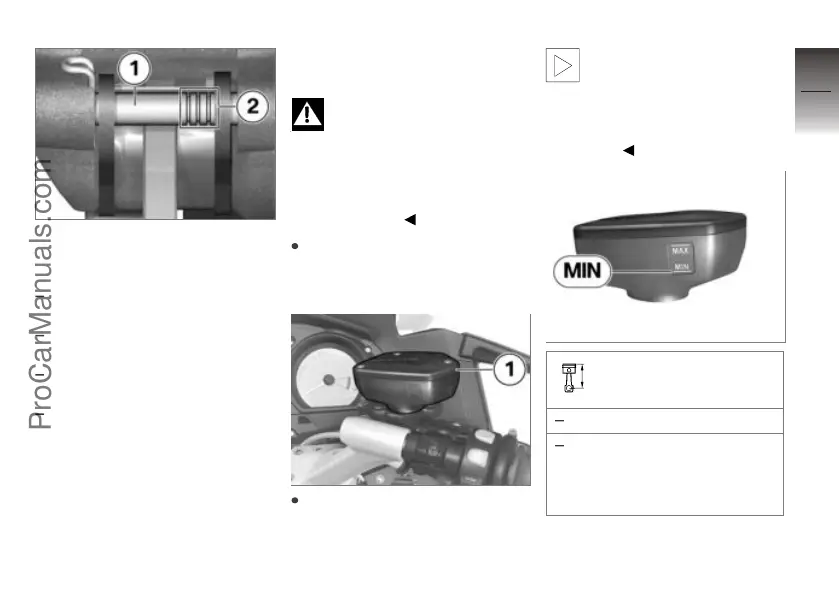

Shaft 1 with three marker rings 2
is between the brake pads.
How to interpret the marks:
Three rings visible: brake-pad
thickness is at least 75 %
Two rings visible: brake-pad
thickness is at least 50 %
One ring visible: brake-pad
thickness is at least 25 %
No rings visible: brake pads
worn to wear limit; check as
described above
Checking brake-fluid
level, front brakes
A low fluid level in the
brake reservoir can allow air
to penetrate the brake system.
This significantly reduces braking
efficiency.
Check the brake-fluid level at
regular intervals.
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.
Check the brake fluid level in
front reservoir 1.
Wear of the brake pads
causes the brake fluid level
in the reservoir to sink. The drop
in fluid level is compensated
by a clearly visible black rubber
diaphragm.
Brake fluid level, front
Brake fluid (DOT4)
Do not permit the brake fluid
level to drop below the MIN
mark. (Brake-fluid reservoir
horizontal)
8
99
z
Maintenance
