BMW Wallbox User Manual

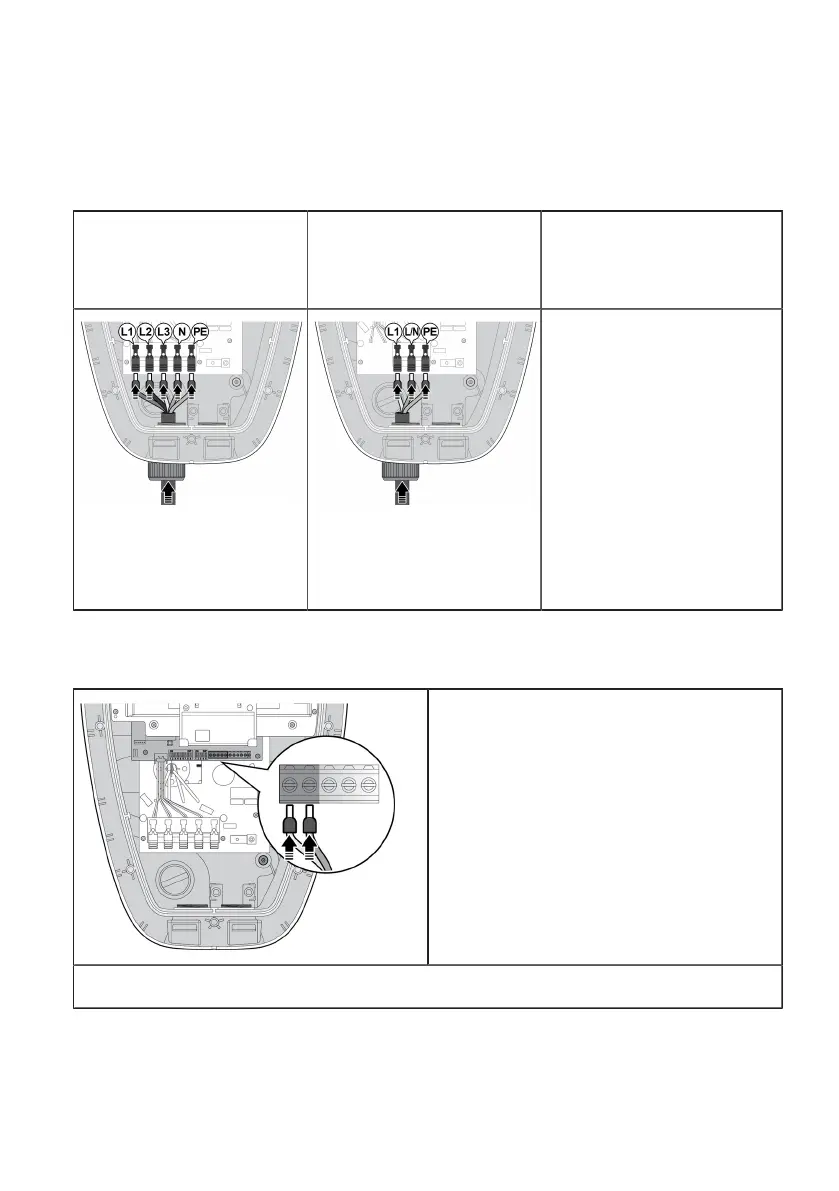

5 Connect the terminals
Use a suitable cable with wire-end ferrules.
■
61 90 5 A1E 1B1
■
61 90 5 A1E 1B2
■
61 90 5 A1E 1B4
■
61 90 5 A1E 1B3
■
61 90 5 A1E 1B5
Note: It is also possible to use
a single-phase connection for
the BMW Wallbox. To do so,
connect terminals L1, N and PE
Connect each terminal to the
correct connection on the input
terminal strip. Then secure
the terminal for the input cable
correctly.
Note: Select a suitable cable
to comply with all current local,
state and national regulations
and standards for electrical
systems. Ensure that the circuit
breaker is switched off before
installation.
5.1 Input X1 (optional)
Connect the cable to connection X1.
The enabling input is designed for use with a
floating contact. The enabling input allows the
Wallbox to be controlled by external components.
Note: The safe isolation of dangerous voltages must be guaranteed.
16

BMW Wallbox Specifications

General

Charging Power	Up to 22 kW
Connector Type	Type 2
Protection Rating	IP54
Connectivity	Wi-Fi, Ethernet
Compatibility	All electric and plug-in hybrid vehicles
Voltage	230 V / 400 V (3-phase)
Amperage	Up to 32 A
Mounting	Wall-mounted
