Bosch AMC2 Series User Manual

AMC2 Modular
Controller
Installing | en 37
Bosch Access Systems GmbH 2018-09 | AMC2-4W_UL |
4.11 Connecting Relay Outputs
To operate locks or alarm systems, the AMC2-4W has eight relay
outputs. The outputs will be connected to the 3-pin pluggable
screw connectors S5, S6, S10, S11, S17, S18, S22, and S23 -
refer to chapter Connecting Diagrams, page 63.

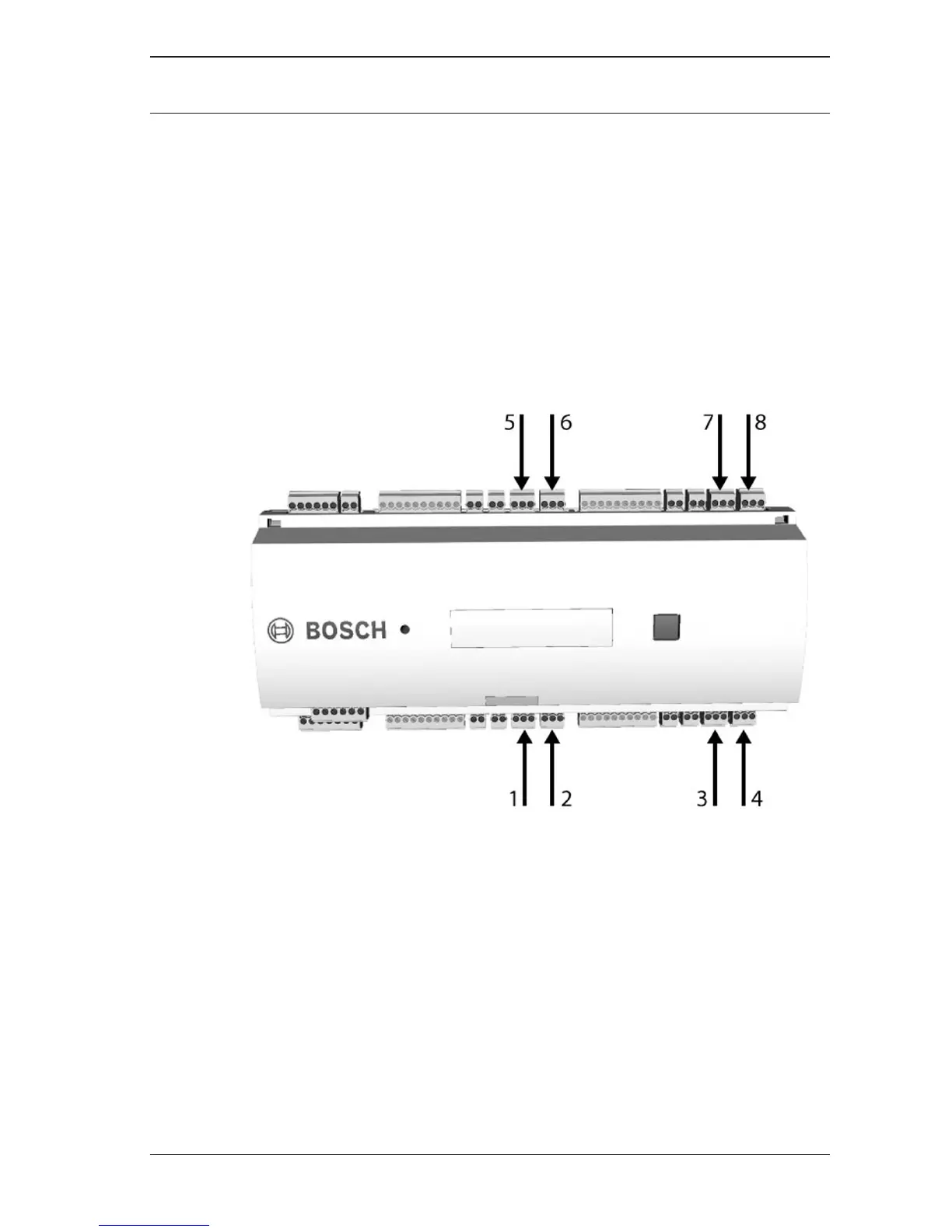

Figure4.11: Location of the relay output connectors
Each relay output can operate in ‘wet’ mode, using the
AMC2-4W 's internal 12/24 Vdc power supply for external
devices or ‘dry’ mode with potential free contacts for externally
powered systems.
