3. Product description
3.1 Application
Maintenance-free batteries and standard batteries, as well
as greatly discharged batteries, can be charged with the
BML 2415. You can charge the batteries both when ins-
talled in the vehicle, or when in the dismantled condition.
The planned areas for using the BML 2415 are the
automotive workshop, testing station, gas station and
battery trade.
i BML 2415 is solely suitable for the charging of
perfect standard and maintenance-free plumbic acid
batteries with nominal capacities of 12 Ah up to a
maximum of 180 Ah and a nominal voltage of 12
Volts and 24 Volts.
3.2 Description of unit
BOSCH
DC AMPERES
0
5
10
15
A
24V
12V
BML 2415
7
6
5
4
3
2
1
9
8
451000/6P

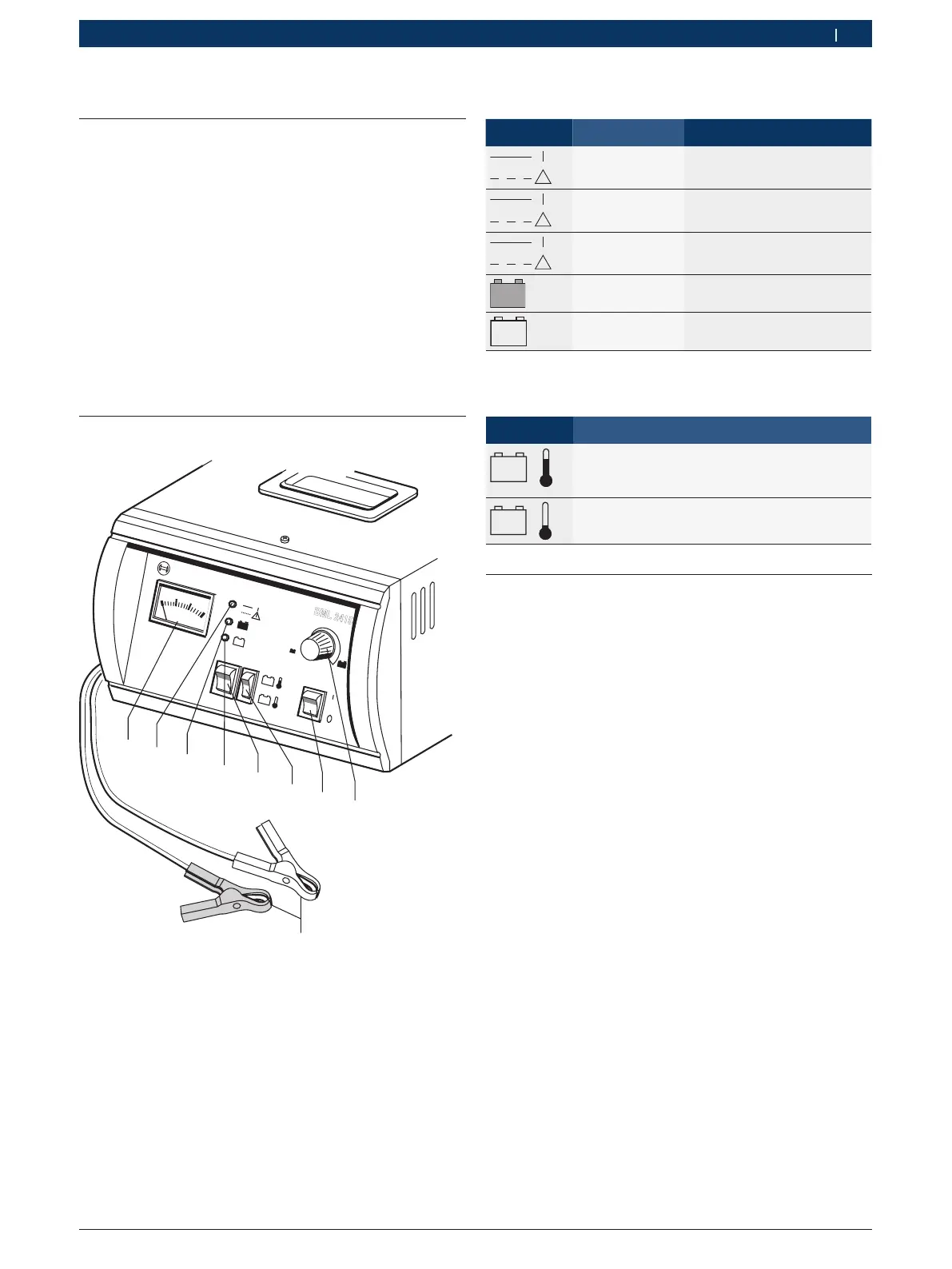

Fig. 1: BML 2415
1. Display instrument for charge current
2. LED On/Off
3. LED Cutoff voltage reached
4. LED Charging
5. Switch for battery nominal voltage 12 V or 24 V
6. Switch for battery temperature (see 3.2.2)
7. Mains switch On/Off
8. Regulator for restricting the charge current
9. Charging cable with fully insulated terminal clips
3.2.1 Function LEDs
Symbol Color Function
!
Lit red BML 2415 switched on
!
Not lit BML 2415 switched off
!
Flashing red Incorrect polarity!
Check connection!
Lit green Cutoff voltage reached
Lit yellow Charging
3.2.2 Battery temperature switch function
Symbol Function
Setting for battery temperatures
above 15°C (warm battery)
Setting for battery temperatures
below 15°C (cold battery)
3.3 Important information about the
charger
¶ The charger must be placed on a level, firm surface.
¶ The location must be sufficiently stable. Bear in
mind the weight of the device and of the battery that
is to be charged.
¶ Safeguard the charger against moisture and wetness.
¶ Do not cover the charger. Ensure that there is at
least 15 cm free space on all sides of the charger to
allow the air to circulate freely.
