Encode
Enter here the relevant settings for each connected channel. In most cases you can encode 2
streams for each connected channel. If required, use the Default button to reset all encode
fields to the factory default. Use the Copy
button to copy identical settings from one channel
to other channel(s); this is described further in Copy, page 41.

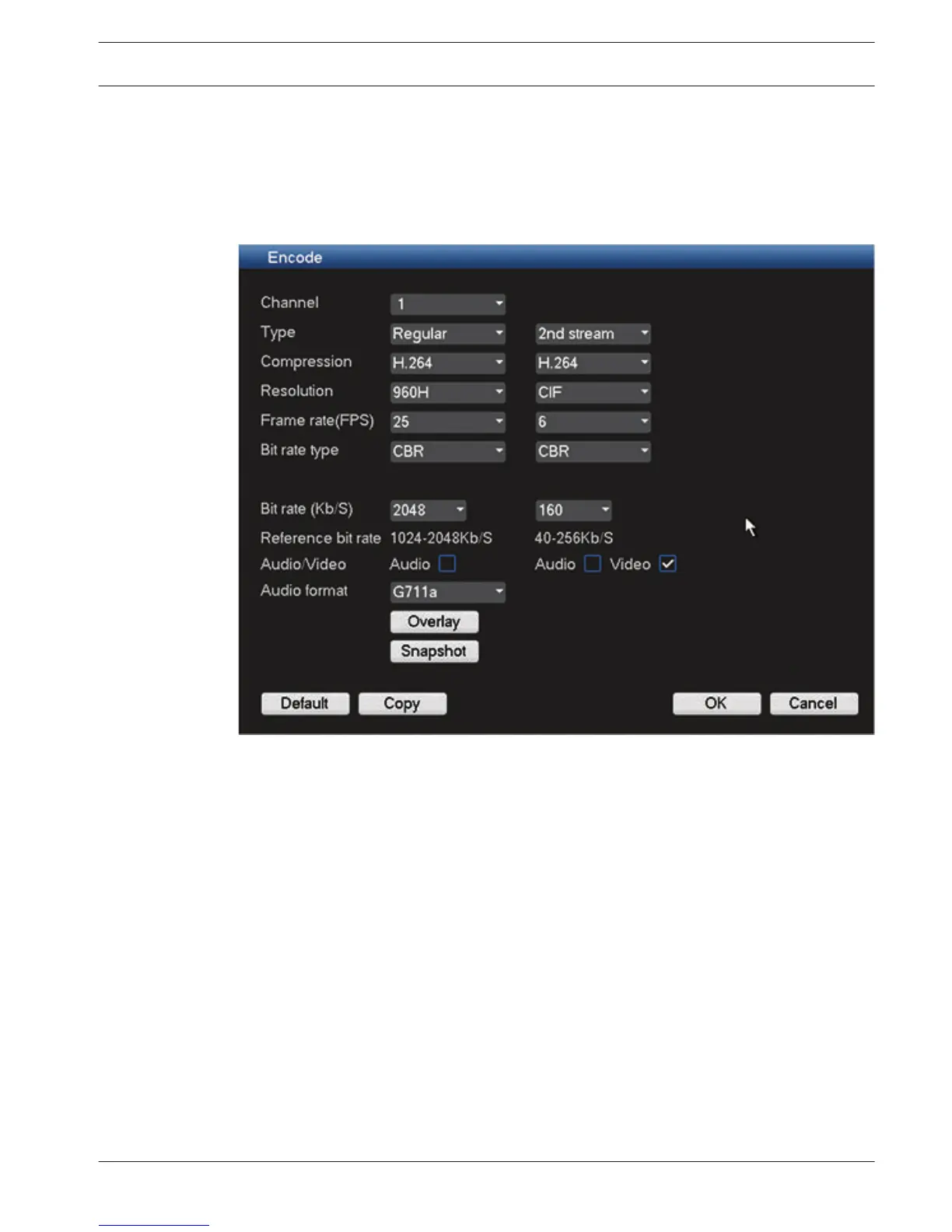

Figure 6.4: Encode
Encode settings are:
–
Channel: Select a connected channel (default is 1)
– Type: Select from Regular/MD/Alarm (default is Regular)
– Compression: Default is H.264
– Resolution: System
– main stream supports 960H/4CIF/2CIF/CIF/QCIF (default is 960H)
– extra stream supports CIF/QCIF (default is CIF)
– Frame rate (per second):
– 1 to 30 in NTSC mode (default = 30; second stream default = 7.5)
– 1 to 25 in PAL mode (default = 25; second stream default = 6)
– Bit rate type: CBR (default) and VBR (video quality)
– Bit rate in Kb/second (this will depend on the setting for Resolution above):
– main stream supports 56 to 2048 (default is 2048 with resolution of 960H)
– extra stream supports 12 to 320 (default is 160 with resolution of CIF)
– Audio/Video: Enable or disable the audio (main stream); video and/or audio (extra
stream)
– Audio format: G711a (default), PCM or G711u
– <Overlay> - see Overlay, page 40
