Bosch Diagnostics |1 689 979 987 2006-09-29
Description of unit | KTS 530 / KTS 540 / KTS 570 | 17
2.3 Deliv ery specification
Description Order N umber
System tester KTS 530
(*)
System tester KTS 540
(*)
System tester KTS 570
(*)
1 687 022 437
1 687 022 436
1 687 022 994
Bluetooth USB adapter (KTS 540/KTS 570) 1 687 023 382
OBD diagnosis cable 3 m (KTS 530) 1 684 465 557
OBD diagnosis cable 1.5 m (KTS 540/KTS 570) 1 684 465 555
UNI connection cable 4 core 1 684 463 539
USB connection cable 3 m 1 684 465 562
Power pack
Power supply cable
1 687 022 889
1 684 461 106
Measuring cable blue (KTS 530/KTS 540) 1 684 430 066
Measuring cable yellow (KTS 530/KTS 540) 1 684 430 067
Measuring cable red/black (KTS 570) 1 684 463 214
Measuring cable blue/yellow (KTS 570) 1 684 463 550
Test tip red (1x, with KTS 570 2x) 1 684 485 035
Ground cable black 1 684 430 068
Terminal clip, black 1 684 480 022
Case 1 685 438 145
Mount
with sheet-metal screw (2x)
and fillister head screw (3x)
1 681 398 030
2 910 611 406
2 910 641 118
DVD1 ESI[tronic] 2006/1
Diagnosis and technology
DVD2 ESI[tronic] 2006/3 U
1 987 729 601
1 987 729 041
Important information and safety instructions 1 689 979 922
Product description
(KTS 530/KTS 540/KTS 570)
1 689 979 987
(*)
depending on order
2.4 Special accessories
Information on special accessories, such as e.g.
vehicle-specific connecting cables, additional measuring
cables and connecting cables can be obtained from your
Bosch representative.
2.5 System tester
2.5.1 Diagnosis terminals/Measurement terminals
CH2
CH1
D IA G
m a x . 6 0 V
459802/12 Ko
1 2
3
4
5

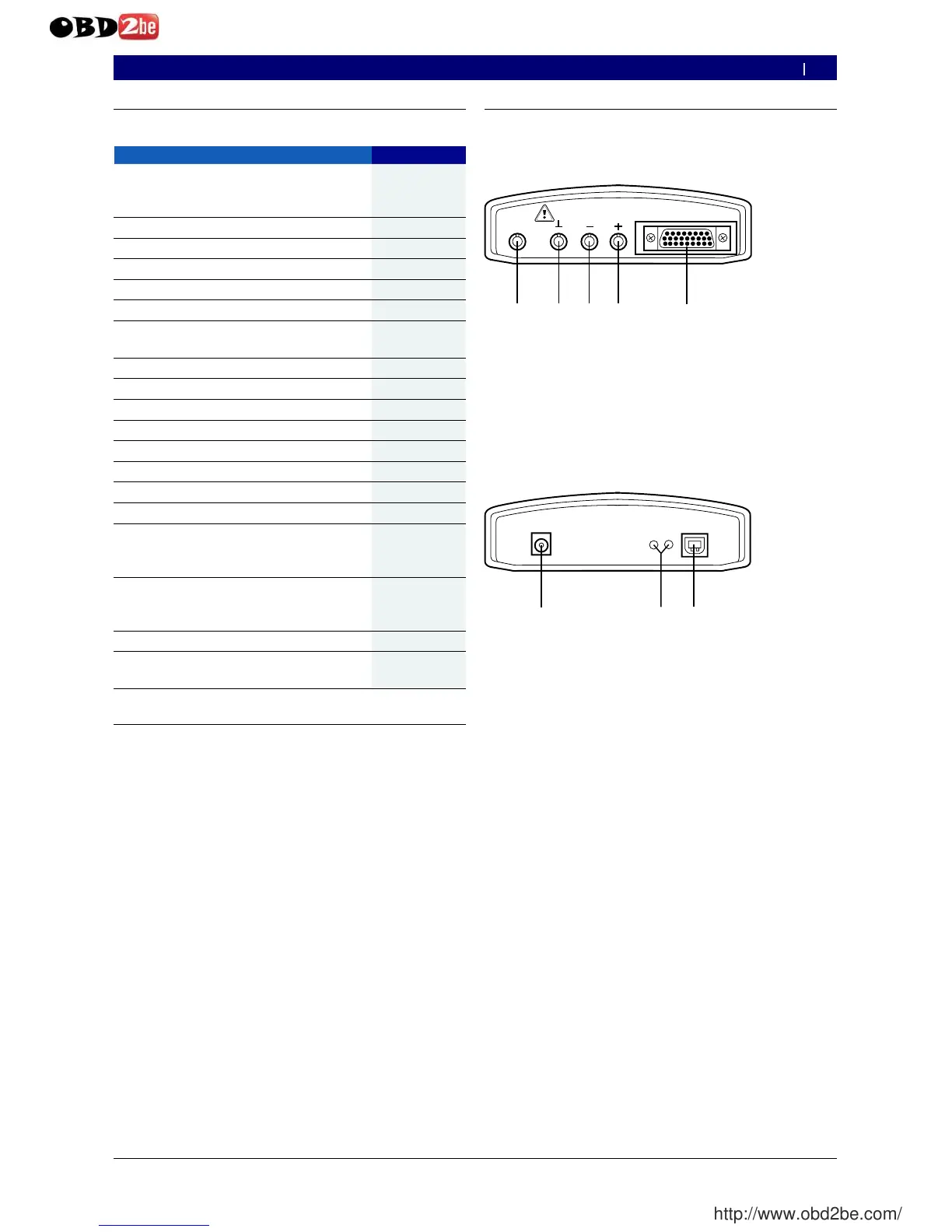

F ig. 1: Diagnosis terminals/Measurement terminals
1 M easu ring inpu t C H 2 (only for K T S 57 0 )
2 G N D soc k et
3 M easu ring inpu t C H 1(– )
4 M easu ring inpu t C H 1(+ )
5 C onnec tion O B D diagnosis c ab le (DIA G )
2.5.2 Terminal strip
15V DC
U S B
459802/11 Ko
1 2 3
A
B
F ig. 2: Terminal strip
1 P ower su pply c onnec tion
2 L E D A and L E D B (see c hap. 2.5.3)
3 U S B c onnec tion
en
