Bosch Tronic 3000T ES 2.5 User Manual

5
Information about the product
Tronic 3000T – 6 720 801 072 (2018/04)
2 Information about the product

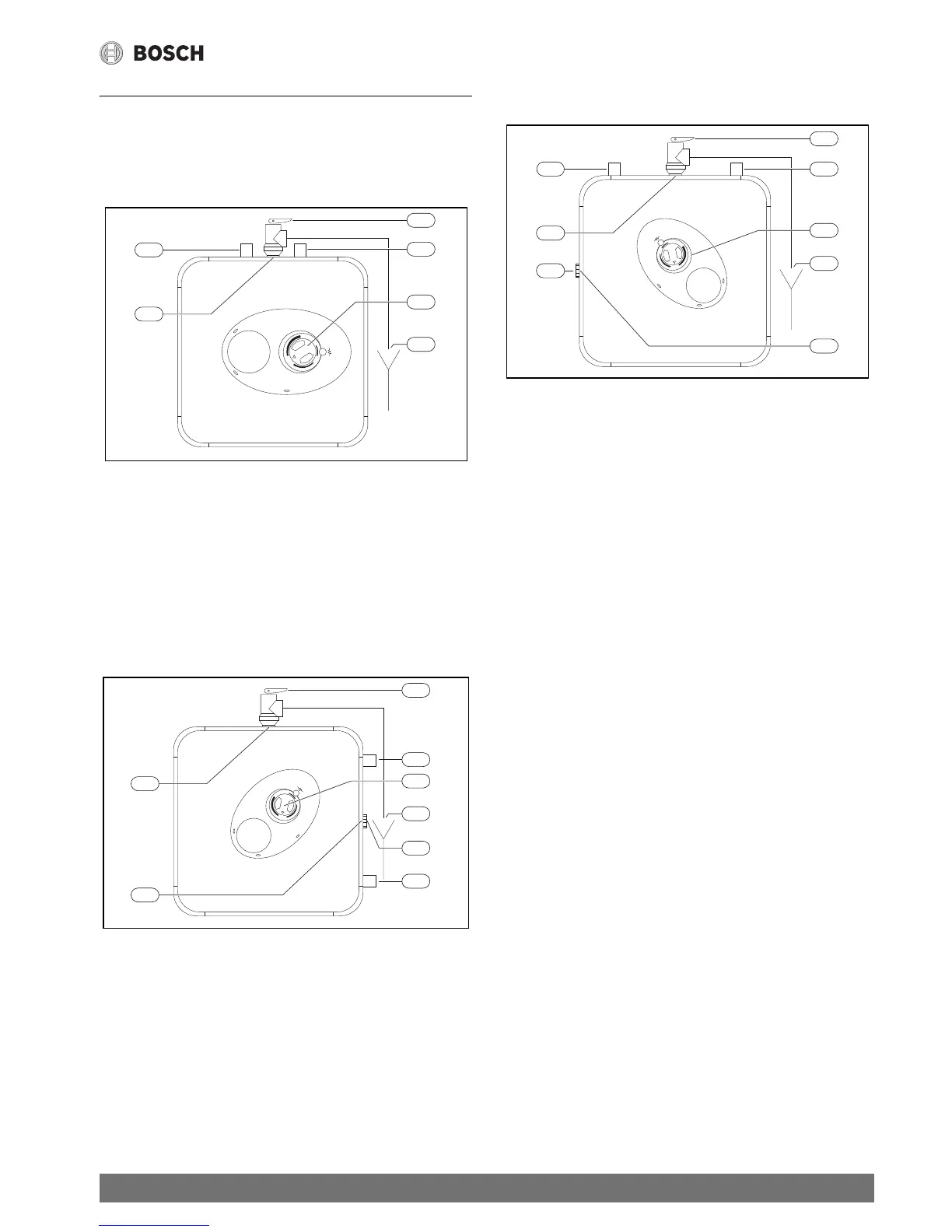

2.1 Models overview
Models ES2.5 and ES4
Fig. 2
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ½ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ½ NPT male
Models ES8 (Horizontal installation)
Fig. 3
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ¾ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ¾ NPT male
[7] ¾ NPT male plug
[8] ¾ NPT female tapping for tap
Models ES8 (Vertical installation)
Fig. 4
[1] Temperature & pressure relief valve, ¾ NPT male
[2] Cold water inlet ½ NPT male
[3] Thermostat
[4] Temperature & pressure relief valve discharge line to
drain
[5] ¾ NPT female tapping for relief valve
[6] Hot water outlet ½ NPT male
[7] Hot water outlet ½ NPT male
[8] Hot water outlet ½ NPT male
1
MAX
MIN
OFF
IDEAL
2
4
5
6
3
6720801072-01.1V
1
MAX
MIN
OFF
IDEAL
2
4
5
3
6720801072-02.1V
6
7
8
1
2
4
5
3
6720801072-03.1V
6
7
8
M
IN
O
F
F
M
AX
I
D
E
A
L

Bosch Tronic 3000T ES 2.5 Specifications

General

Capacity	2.5 gallons
Voltage	120V
Phase	Single
Water Connection	1/2" NPT
Installation	Wall-mounted
Temperature Range	65°F - 145°F (adjustable)
Amperage	12A
Wattage	1440W
