Bose 802-II User Manual

9

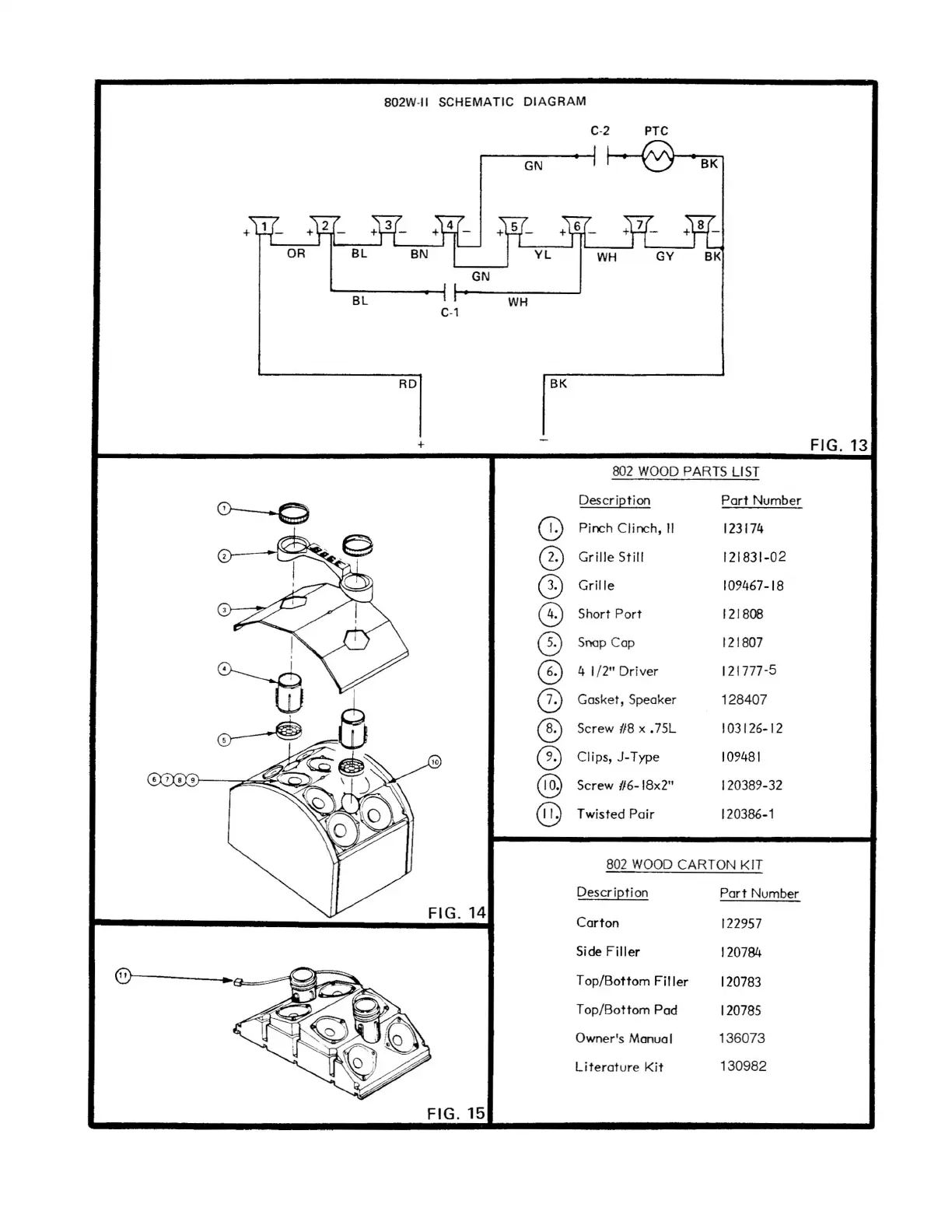

802W-1I SCHEMATIC DIAGRAM
C-2
PTC
GN
BK
BL
WH
C-'
RD
BK
+
FIG. 13
802 WOOD PARTS LIST
Description Part Number
0
Pinch Clinch, II
123174
CD
Grille Still
121831-02
CD
Grille
109467-18
@
Short Port
121808
Q)
Snap Cap
121807
CD
4 1/2" Driver
121777-5
CD
Gasket, Speaker
128407
®
Screw 118 x .75L
103126-12
0
Clips, J-Type
109481
@
Screw 116-18x2" 120389-32
@
Twisted Pair 120386-1
802
WOOD CARTON KIT
Descripti
on
Part Number
FIG. 14
Carton
122957
Side
Filler
120784
Top/Bottom Filler
120783
Top/Bottom Pod
120785
Owner's Manual
136073
Literature Kit
130982
FIG. 15
