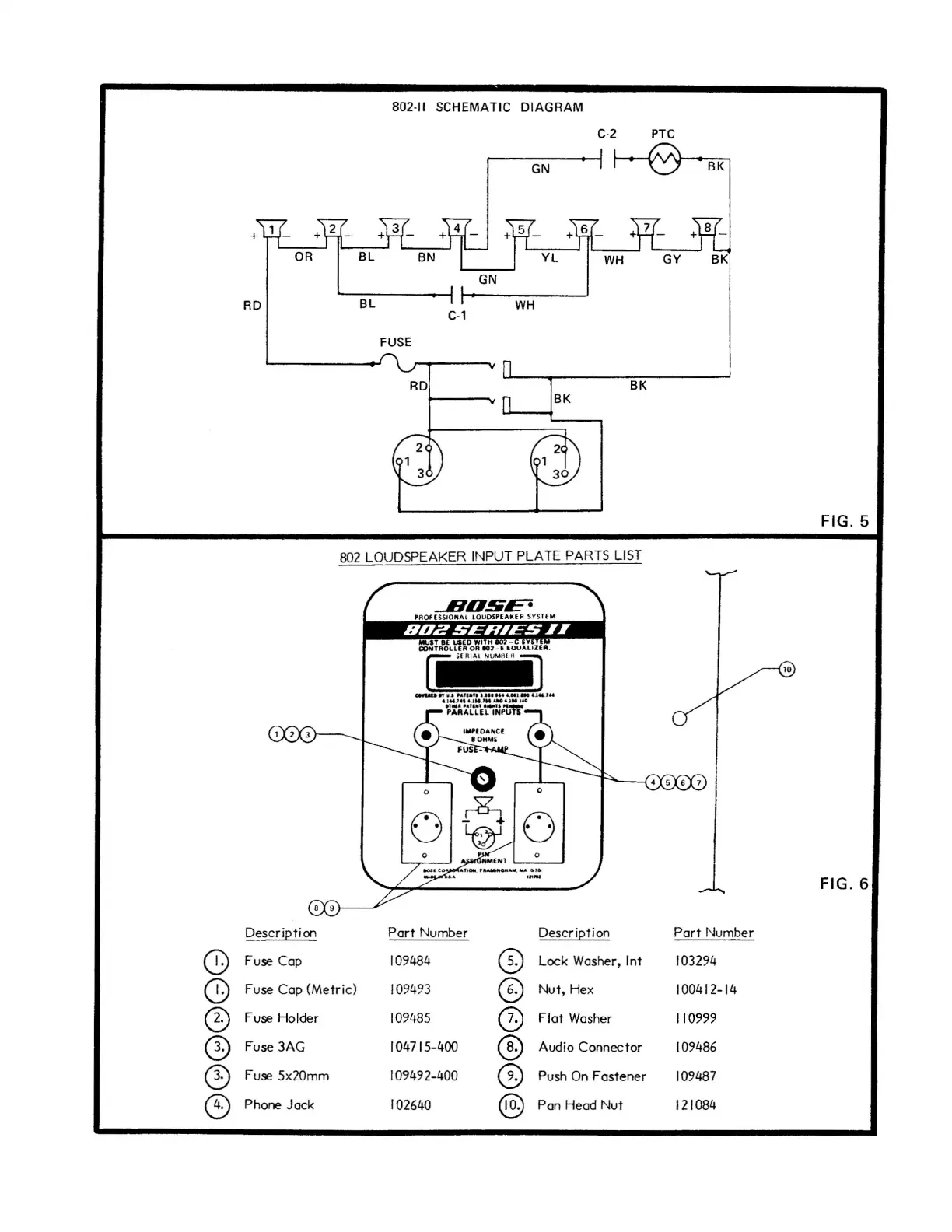

Page #7 background image
6
802-11
SCHEMATIC
DIAGRAM
C-2
PTC
GN
BK
RD
BL
FUSE
RD
C·,
WH
BK
FIG.5
802 LOUDSPEAKER INPUT PLATE PARTS
LIST
10
0
0
FIG.6
Description
Port
Number
Description
Port
Number
C)
Fuse Cap 109484
CD
Lock Washer, Int 103294
C)
Fuse
Cap
(Metric)
109493
@
Nut, Hex 100412-14
0
Fuse Holder 109485
0
Flat
Washer
110999
CD
Fuse 3AG
104715-400
®
Audio
Connector
109486
0
Fuse 5x20mm
109492-400
0
Push On
Fastener
109487
~
Phone
Jock
102640
@
Pan
Head Nut 121084
4A
