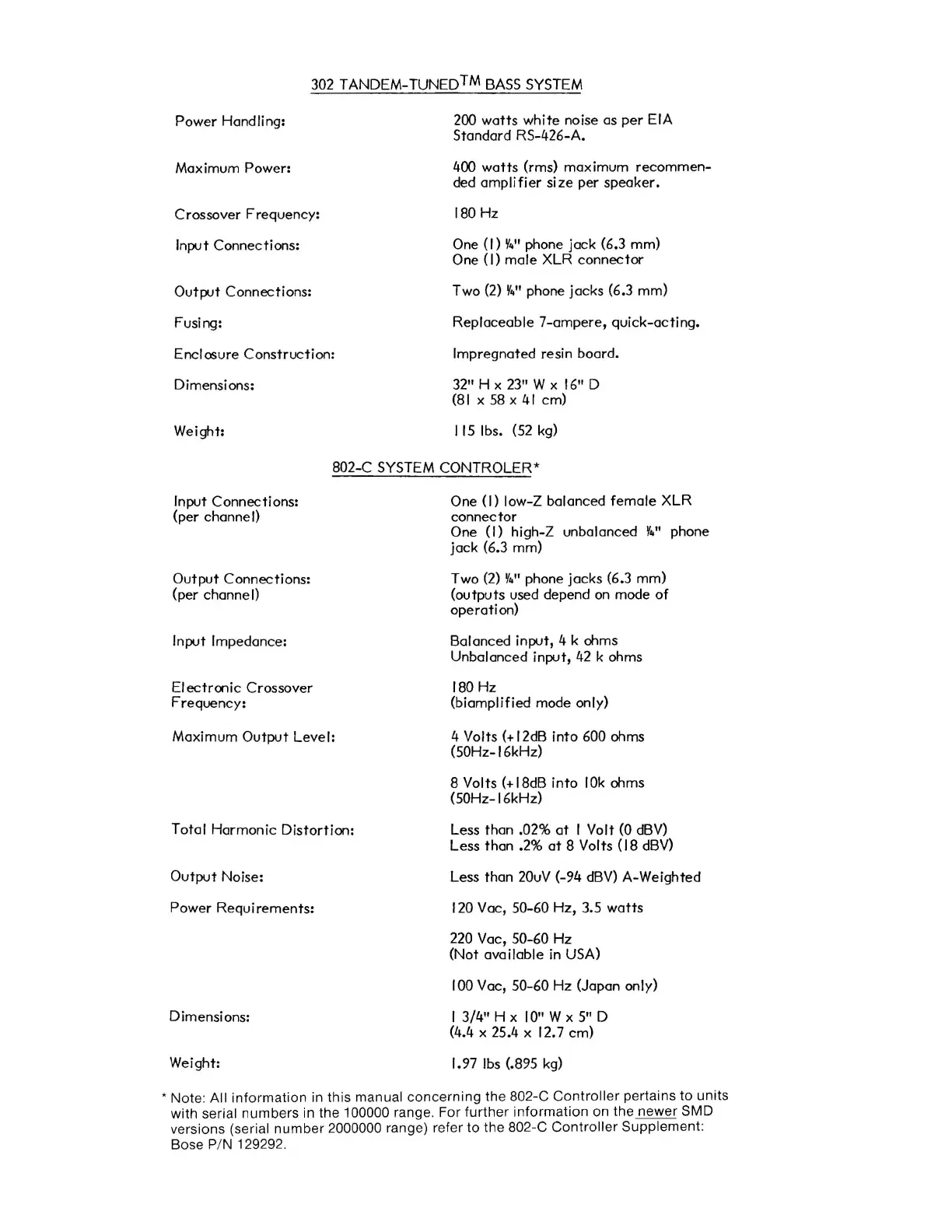

Power Handling:
Maximum Power:
302 TANDEM-TUNED
TM BASS SYSTEM
200 watts white noise as per EIA
Standard RS-426-A.
400
watts (rms) maximum recommen-
ded amplifier
size per speaker.
Crossover Frequency:
Input Connections:
Output Connections:
Fusing:
Enclosure Construction:
Dimensions:
Weight:
180 Hz
One
(I) Y4" phone jack (6.3 mm)
One (I) male XLR
connector
Two (2) Y4" phone jacks (6.3 mm)
Replaceable
7-ampere, quick-acting.
Impregnated resin board.
32" H x
23" W x 16" D
(81 x 58 x 41 cm)
115 Ibs. (52 kg)
Input Connections:
(per channel)
Output Connections:
(per channel)
Input Impedance:
EI ectronic Crossover
Frequency:
802-C SYSTEM CONTROLER*
One (I) low-Z balanced female XLR
connector
One
(I) high-Z unbalanced Y4" phone
jack (6.3 mm)
Two
(2) Y4" phone jacks (6.3 mm)
(outputs used depend
on mode of
operation)
Balanced input, 4 k ohms
Unbalanced input,
42 k ohms
180 Hz
(biamplified mode only)
Maximum Output Level:
Total Harmonic Distortion:
Output Noise:
Power Requi rements:
Dimensions:
Weight:
4 Volts
(+ 12dB into 600 ohms
(50Hz-16kHz)
8 Volts (+18dB into
10k ohms
(50Hz-16kHz)
Less than .02%
at I Volt (0 dBV)
Less than .2% at 8 Volts (18 dBV)
Less than 20uV (-94 dBV) A-Weighted
120 Vac, 50-60 Hz, 3.5 watts
220 Vac, 50-60 Hz
(Not available
in USA)
100 Vac, 50-60 Hz (Japan only)
I 3/4" H x 10" Wx 5" D
(4.4 x 25.4 x 12.7 cm)
1.97
Ibs (.895 kg)
* Note: All information in this manual concerning the 802-C Controller pertains to units
with serial numbers in the 100000 range. For
further information on the newer SMD
versions (serial
number 2000000 range) refer to the 802-C Controller Supplement:
Bose PIN 129292.
