Making connections
Labeled jacks on the rear
of
the Acoustimass® module and the custom cables supplied with
the system permit fast and easy hookup (Figure
5).
A CAUTION: Do not plug the Acoustimass module into an
AC
power (mains) outlet until all the
source components are connected
to
the module.

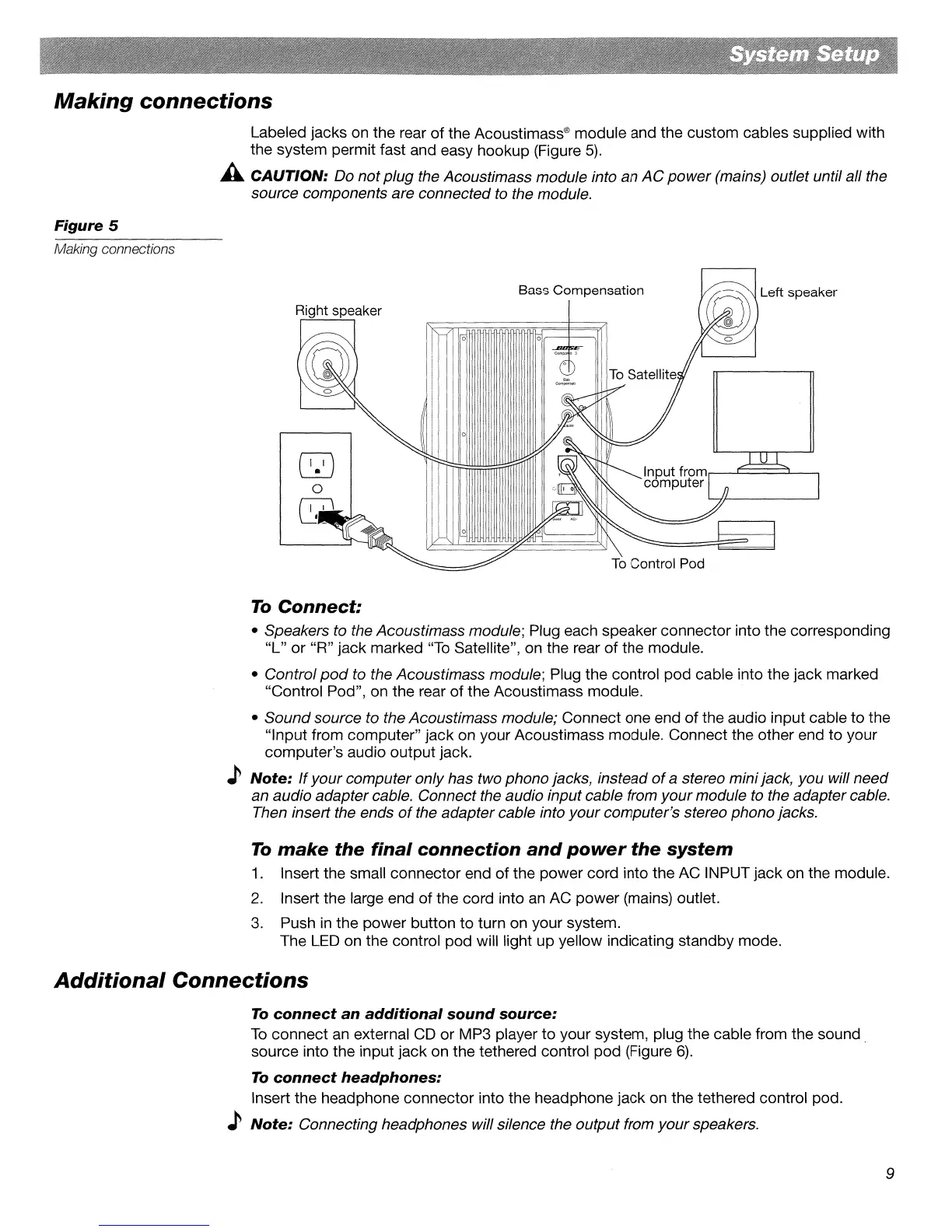

Figure 5
Making connections
Bass Compensation
Right speaker
To
Control Pod
To
Connect:
• Speakers to the Acoustimass module; Plug each speaker connector into the corresponding
"L"
or
"R" jack marked
"To
Satellite", on the rear
of
the module.
• Control
pod
to the Acoustimass module; Plug the control pod cable into the jack marked
"Control Pod", on the rear
of
the Acoustimass module.
• Sound source to the Acoustimass module; Connect one end
of
the audio input cable to the
"Input from computer" jack on your Acoustimass module. Connect the other end to your
computer's audio output jack.
J
Note:
If
your computer only has two phono jacks, instead
of
a stereo minijack, you will need
an audio adapter cable. Connect the audio input cable from your module
to
the adapter cable.
Then insert the ends
of
the adapter cable into your computer's stereo phono jacks.
To
make
the final connection
and
power
the
system
1.
Insert the small connector end
of
the power cord into the AC INPUT jack on the module.
2.
Insert the large end
of
the cord into
an
AC power (mains) outlet.
3.
Push
in
the power button to turn on your system.
The
LED
on the control pod will light up yellow indicating standby mode.
Addiffona/Connecffons
To
connect
an
additional
sound source:
To
connect
an
external CD or MP3 player
to
your system, plug the cable from the sound.
source into the input jack on the tethered control pod (Figure
6).
To
connect
headphones:
Insert the headphone connector into the headphone jack on the tethered control pod.
J
Note:
Connecting headphones will silence the output from your speakers.
