Available Accessories
Accessory Cards
ControlSpace
®
ESP-880/1240/4120 processors offer a rear panel digital expansion slot for adding network audio and control
capabilities beyond what is available using the front panel RJ-45 connector. For systems requiring control network connections
to be located on the rear panel (without streaming audio), the ControlSpace Network Control card is recommended for use.

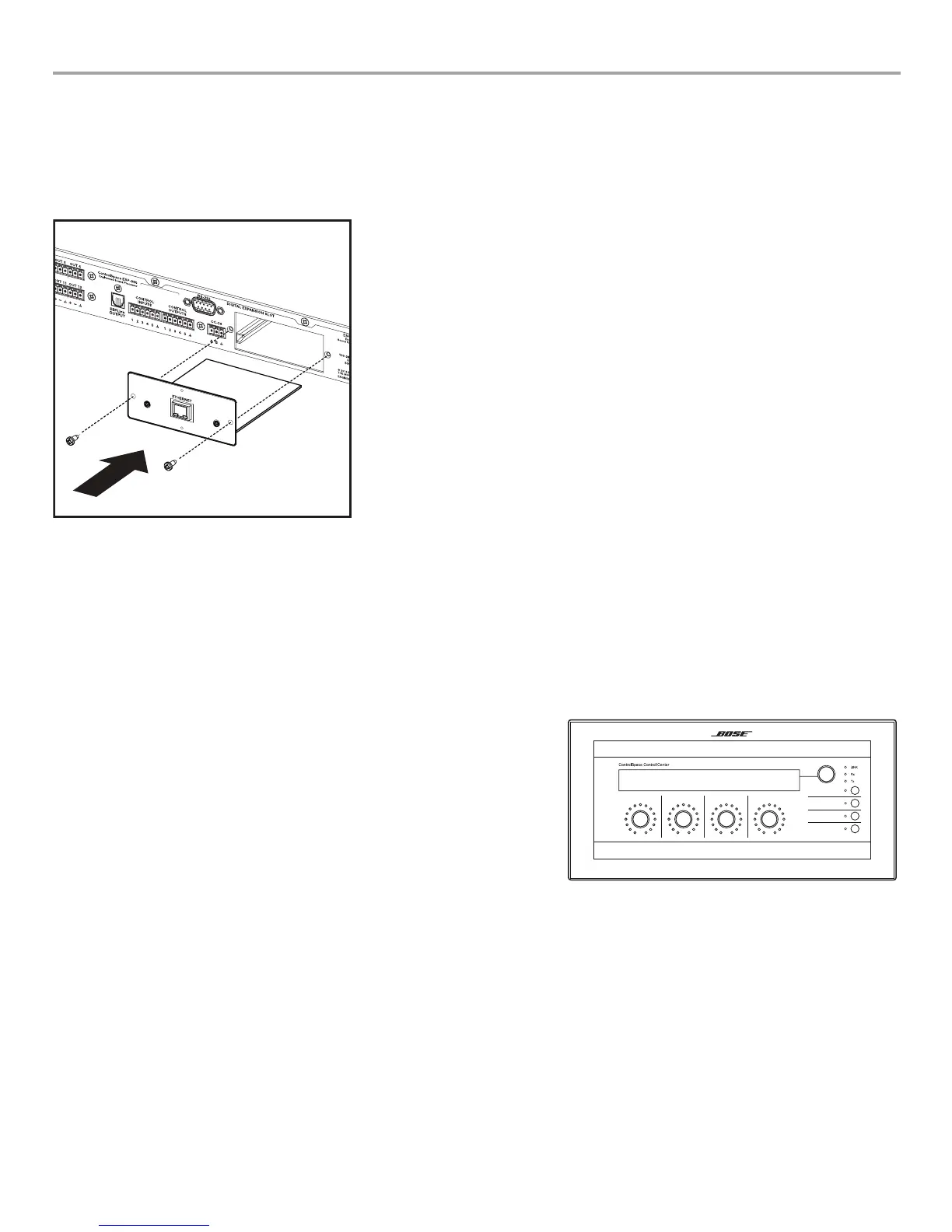

Figure 1. ControlSpace Network Control card
At time of print, the following expansion cards are available. For further information on these cards, and to view new cards that are
available, please visit pro.Bose.com.
•ControlSpaceESP-880/1240/4120NetworkControlcard PC359841-0010
•ControlSpaceESP-880/1240/4120Dante
™
network card PC 359842-0020
User Control Interfaces
ESP-880/1240/4120 processors are compatible with Bose
®
programmable controllers and three types of simplified
volume/zone controls. The following interfaces can be used with the ESP-880/1240/4120 engineered sound processors:
Figure 2. ControlSpace
®
CC-64 control center
•
ControlSpace CC-64 control center (PC 041760) (Figure 2)
Network control of any Bose networkable hardware.
• ControlSpace CC-16 zone controller (PC 041761)
Uses CC-16 port. Up to 15 devices can be used with any ESP
engineered sound processor.
• ControlSpace CC-4 room controller (PC 042023)
Uses GPI port: Requires 5 control inputs and one ground termination.
• Volume Control with A/B switch user interface (PC 041967)
Uses GPI port: Requires 2 control inputs and one ground termination.
• Volume Control user interface (PC 041966)
Uses GPI port: Requires 1 control input and one ground termination.
