pro.Bose.com Installation and Operating Guide
Hardware InstallatIon
Use the following procedure when setting up a ControlSpace
®
ESP-880/1240/4120 engineered sound processor for the first time.
1. Download and install the latest version of ControlSpace
®
Designer
™
software
2. Unbox the ESP processor
3. Install option card
4. Rack-mount the ESP processor
5. Make analog audio I/O connections
6. Make CC-16, RS-232, and ESPLink connections
7. Connect GPIO devices
8. Establish a network connection
9. Connect the power cable
10. Configure the ESP processor using ControlSpace Designer software
1. Download and install the latest version of ControlSpace Designer software
Install ControlSpace Designer software prior to working with the ControlSpace ESP processor. Visit pro.Bose.com to download the
latest software version which includes product firmware, the latest algorithms, and a detailed help system that guides system designers
and installers through configuring the ESP processor for use in high-quality audio systems.
2. Unpacking
The product box includes the following items. Inspect all components for shipping damage and contact your Bose Representative if any
issues are found.

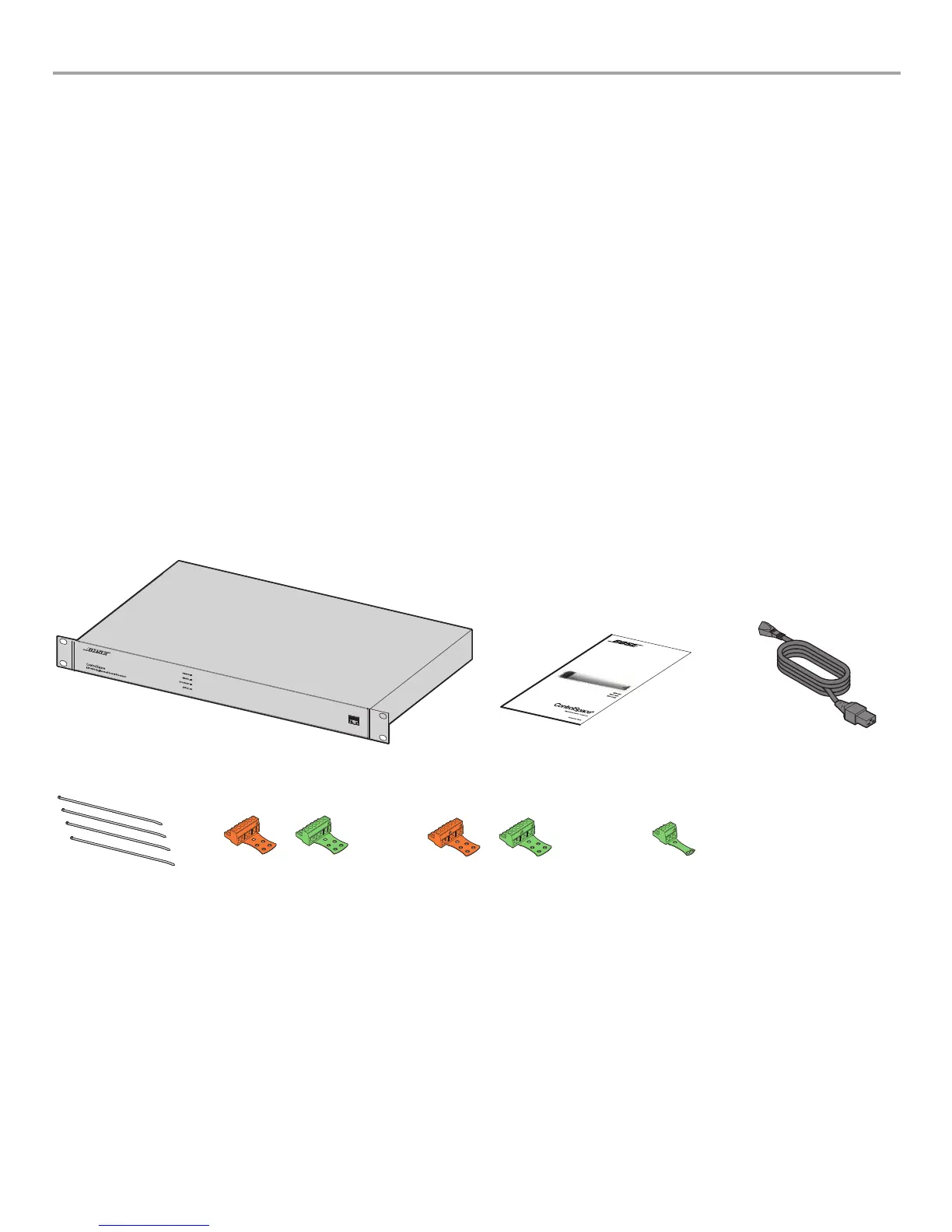

Figure 5. Carton Contents
1 2 3 4 5 1 2 3 4 5
+ – + –
AB
+ – + –
3. Expansion Card Installation
Expansion cards insert into the rear-panel digital expansion slot of the ESP processor. Refer to the documentation included with each
card for specific installation instructions.
4. Rack-Mounting
ESP-880/1240/4120 processors are designed to fit standard 19-inch (48 cm) rack equipment, occupying 1 rack-unit (RU) in height, and
requiring a mounting depth of 8.2 inches (208 mm) from the front rack rail. Use four fasteners with washers (not supplied) to mount
the processor.
The product uses passive (fan-less) side ventilation and can safely operate in ambient conditions from 32°F - 122°F (0°C - 50°C).
Refer to page 21 for power dissipation ratings.
Bose
®
ControlSpace
®
ESP
Installation Guide
Power cord
Cable ties (11) CC-16 connector Control I/O connectors (2) Phoenix Contact
®
dual channel audio
connectors (8)
