Bose FreeSpace FS4SE Installation Guide

The FreeSpace FS4SE loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

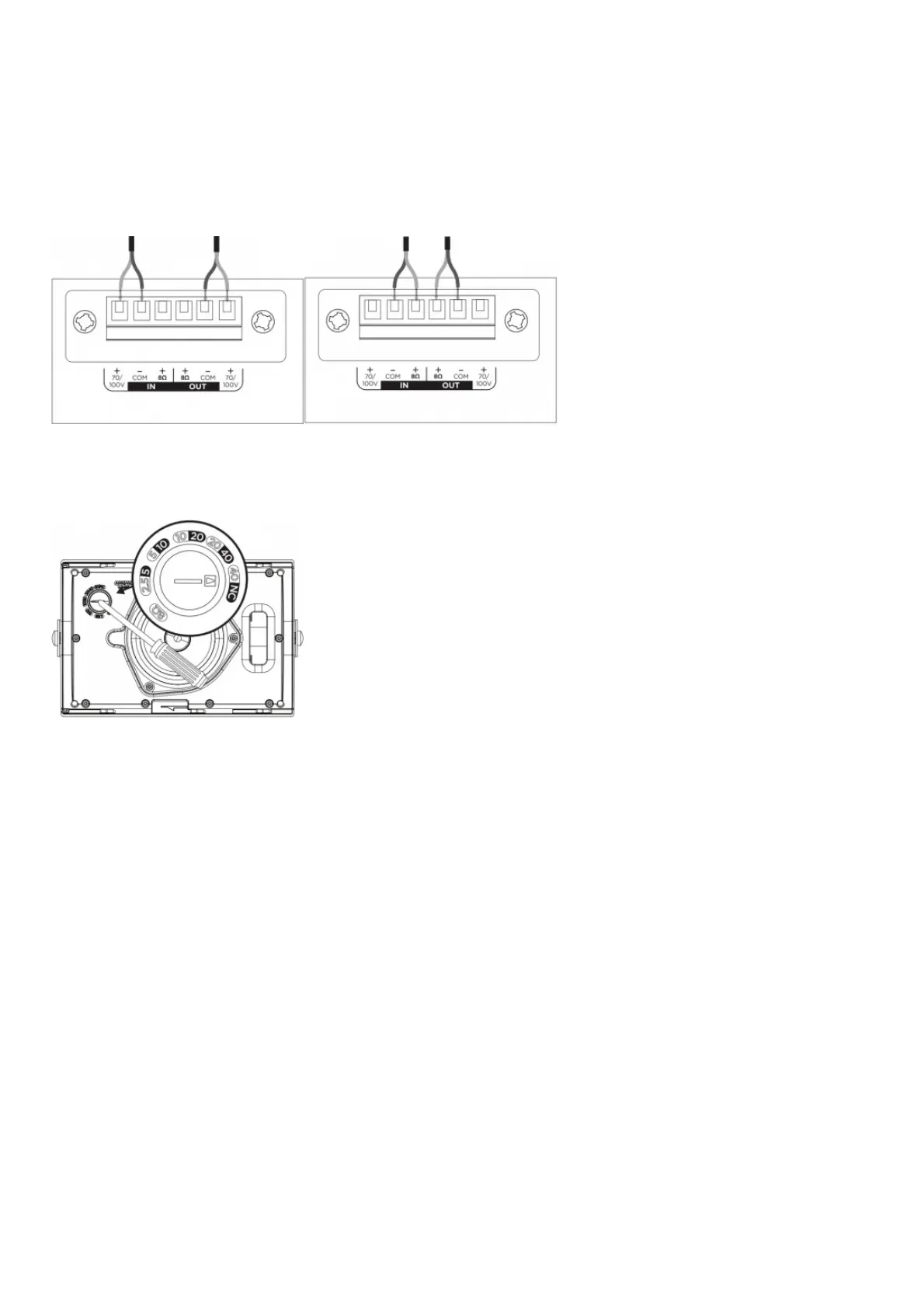

Connection Diagrams
Expose six millimeters (¼ inch) of bare wire to attach to the terminals.
Note: The loudspeaker is not rated for use with a rigid conduit. The loudspeaker is suitable for a flexible conduit or wiring
connection only.
Note: Wiring method must be in accordance with:
In Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;
In the United States, The National Electrical Code, NFPA 70, and the National Fire Alarm and Signaling Code, NFPA 72.
70/100V 8Ω
Loudspeaker Settings
70V
2.5W 5W 10W 20W 40W*
8Ω
5W 10W 20W 40W NC**
100V
* Factory default ** NC: No Connection (do not use)
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.
Using a Safety Cable
Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to
provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and
regulations.

Bose FreeSpace FS4SE Specifications

General

Backlight	No
Certification	IP55 UL 1480, ULC-S541
Product color	White
Housing material	Plastic, Steel
Recommended usage	Universal
Suitable for outdoor use	Yes
Operating temperature (T-T)	-25 - 70 °C
Package weight	8320 g
Connectivity technology	Wired
Impedance	8 Ω
Frequency range	70 - 19000 Hz
RMS rated power	40 W
Peak Music Power Output (PMPO)	160 W
Speaker type	Full range
Driver diameter	114 mm
Speaker placement	Tabletop/bookshelf, Wall-mountable
Audio output channels	- channels
Number of woofer drivers	1
Woofer diameter (imperial)	4.5 \
Transformer taps	2.5, 5, 10, 20, 40 W

Weight and Dimensions

Depth	174 mm
Width	171 mm
Height	277 mm
Weight	3420 g
