4.3 Mounting in standard rack with Rack Mount Kit Accessory
An accessory Rack Mount Kit is available from Bose for installing one or two FreeSpace
®
amplifiers in a standard 19" 1 RU
electronics rack.

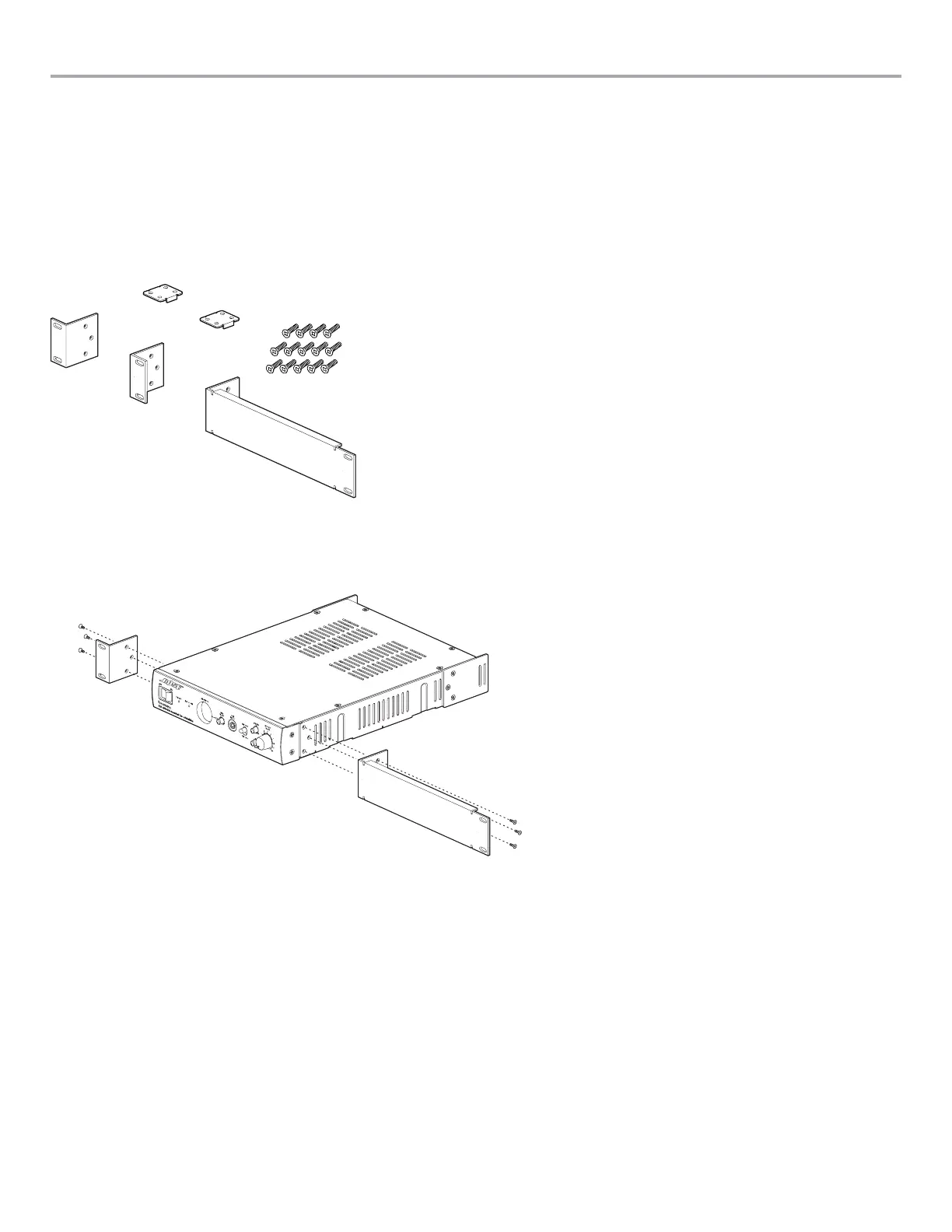

The Rack Mount Kit includes:
(2) link brackets
(2) short rack ears
(1) long rack ear
(14) M3 x 0.5, 6 mm length Phillips flat-head machine screws
4.3.1 Mounting a single amplifier
1. Attach one short rack ear to one side of the amplifier chassis with three (3) of the included screws.
2. Attach the long rack ear to the other side of the amplifier chassis with three (3) of the included screws.
