Page 22 Installation and Operating Guide English
Setup and Operation pro.Bose.com

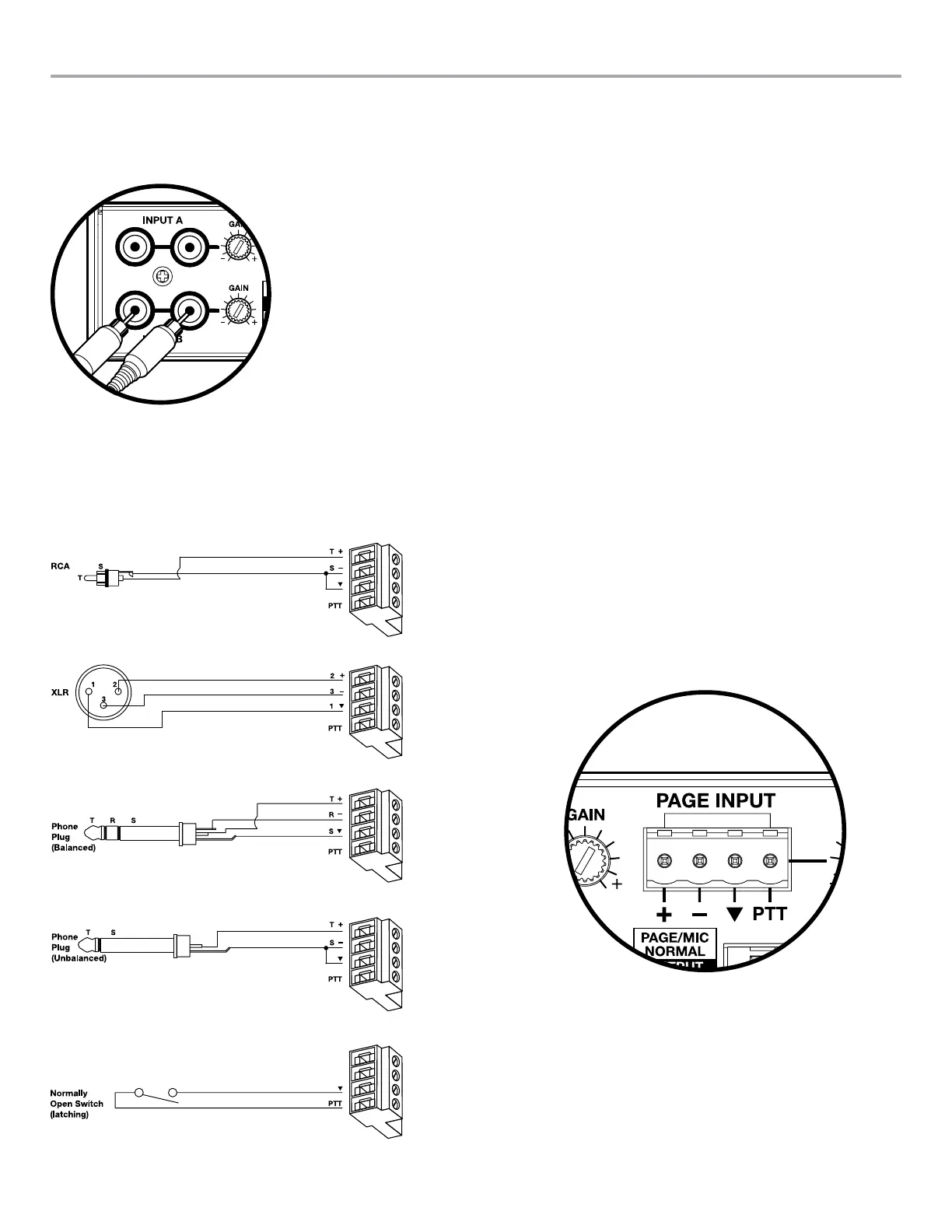

2.5 Input connections
2.5.1 RCA input connections
Insert the RCA plugs into the INPUT A or INPUT B connectors.
2.5.2 Page input connections
The PAGE INPUT is a mic/line input with a trigger contact closure. This input signal is routed to all outputs (including AUX
OUT) when the trigger is detected. This is designed for push-to-talk paging microphones and telephone paging systems.
See the diagrams below for input wiring configurations. Use the included 4-pin Euroblock.
Source connector PAGE INPUT
