2.5.3 Mic/Line input connections (Front-panel)
The MIC/LINE INPUT connector is designed for use with handheld dynamic microphones and XLR, TRS, or TS ¼”

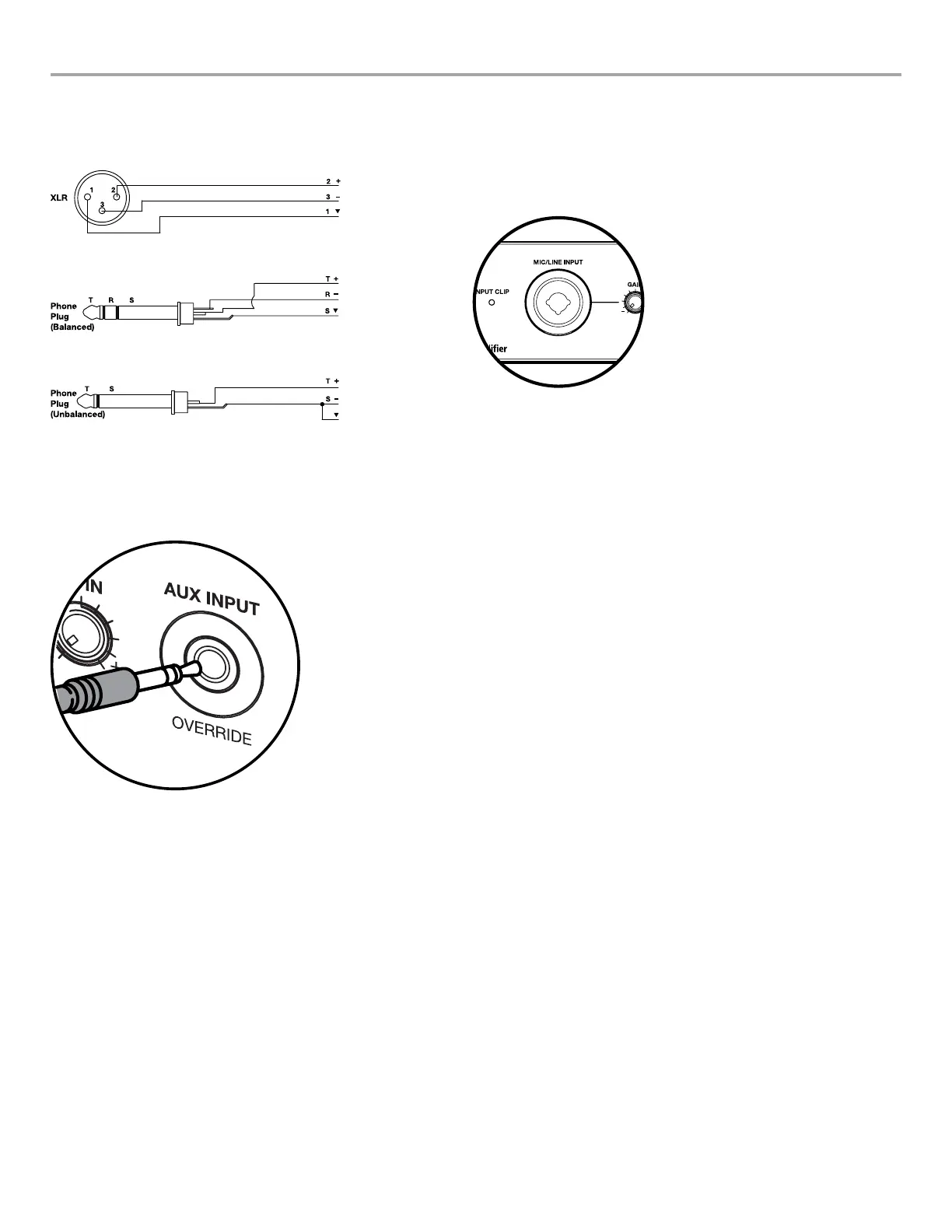

microphone cables. Line-level sources also can be used with this input. See the diagrams below for input wiring
configurations.
2.5.4 Aux input (Front-panel)
The front panel auxiliary stereo line input connector is designed for connecting portable audio devices like MP3 players
and laptops. When a 1/8" (3.5 mm) TRS input jack is connected to the AUX INPUT, the selected INPUT A/B is auto-
matically overridden, even if the audio source connected to AUX INPUT is not playing.
