Page 32 Installation and Operating Guide English
Installation pro.Bose.com

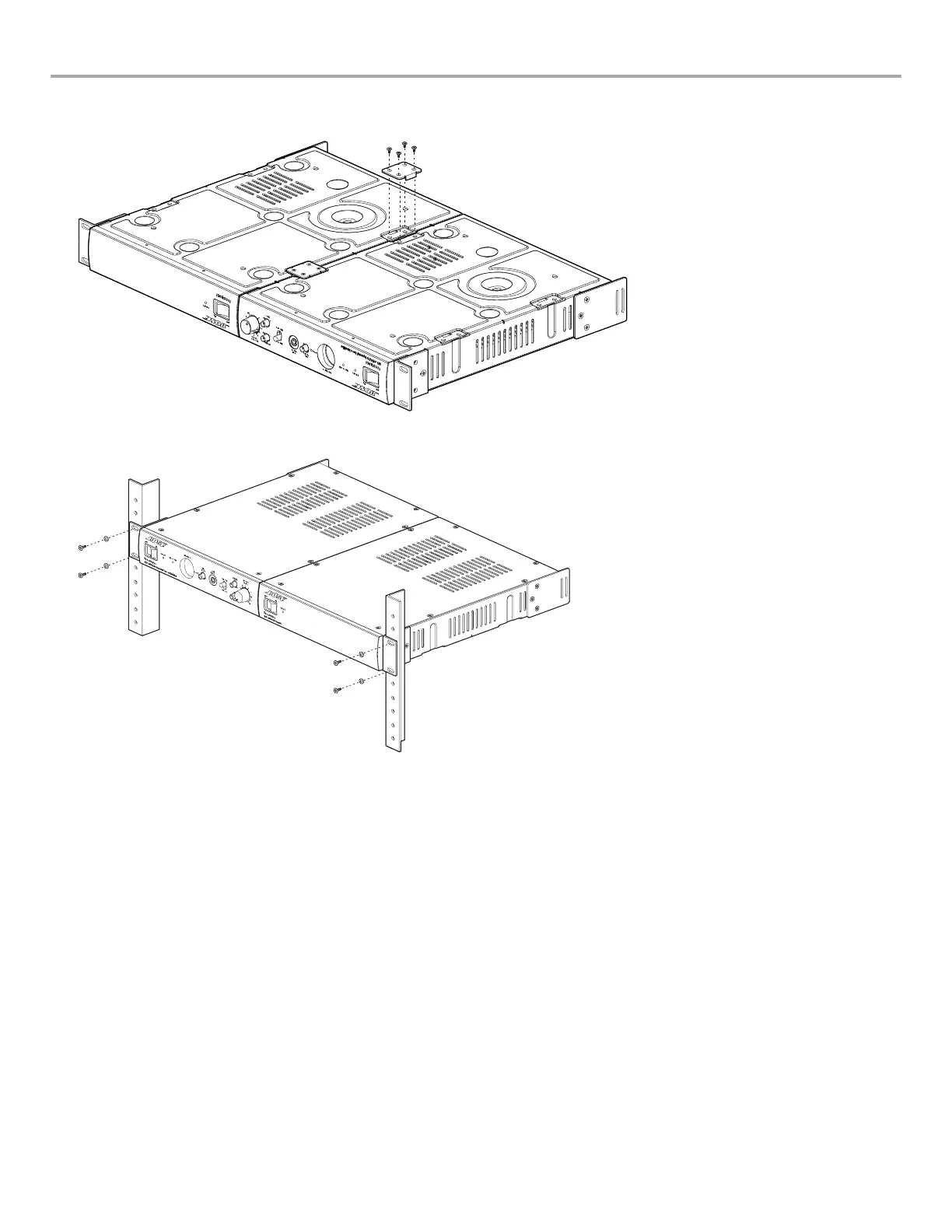

3. Place the amplifiers side by side and attach the two (2) link brackets to the amplifier chassis with four (4) included
screws each.
4. Mount amplifier in rack with four (4) rack screws and washers (not included).
4.3.3 Using the rear rack ears for strain relief
The slots on the rear rack ears can be used to provide strain relief with standard wire ties.
