Adding a second B1 bass module (optional)
The bass module output of the power stand can adequately drive one or two B1 bass
modules. When placed horizontally, the modules are stackable (Figure 9).
One or two additional B1 modules can be added with the use of a PackLite
®
power amplifier.
Refer to
“Adding a PackLite
®
power amplifier model A1 (optional)” on page 14.
CAUTION: Do not connect more than two B1 bass modules to the Bass Module Out
connector on the power stand. Driving more than two B1 bass modules from this output
improperly loads the amplifier in the power stand, resulting in less than full system performance.
1. Connect the first B1 to the Bass Module Out connector on the power stand.
2. Plug one end of the second B1 cable into the unused connector of the first B1. Plug the
other end of the cable into one of the connecetors of the second B1.

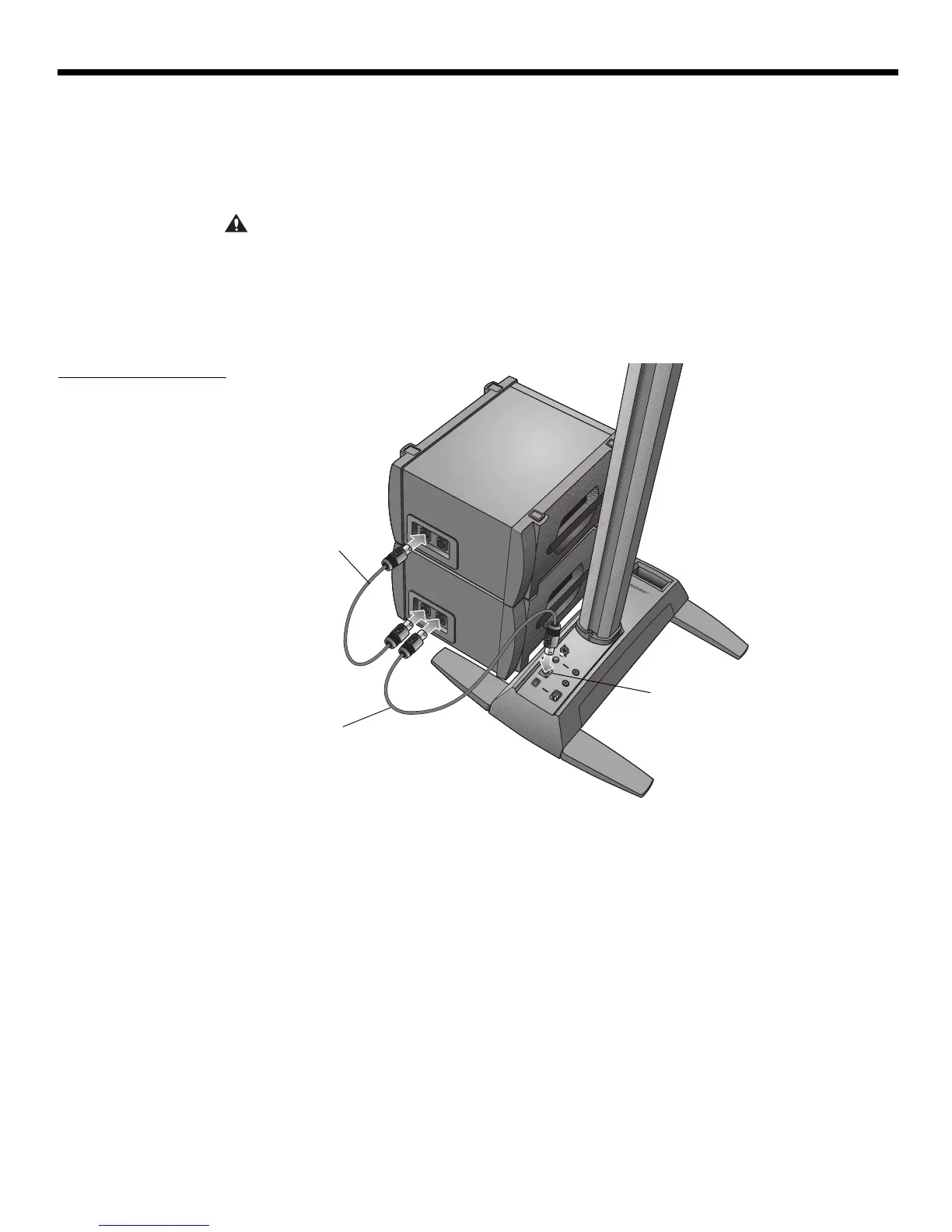

Figure 9
Installation of two B1 bass
modules
Second B1
bass module
cable
First B1 bass
module cable
Bass Module Out
