Bose Wave SoundTouch IV series User Manual

18 - English
Connecting Other Equipment

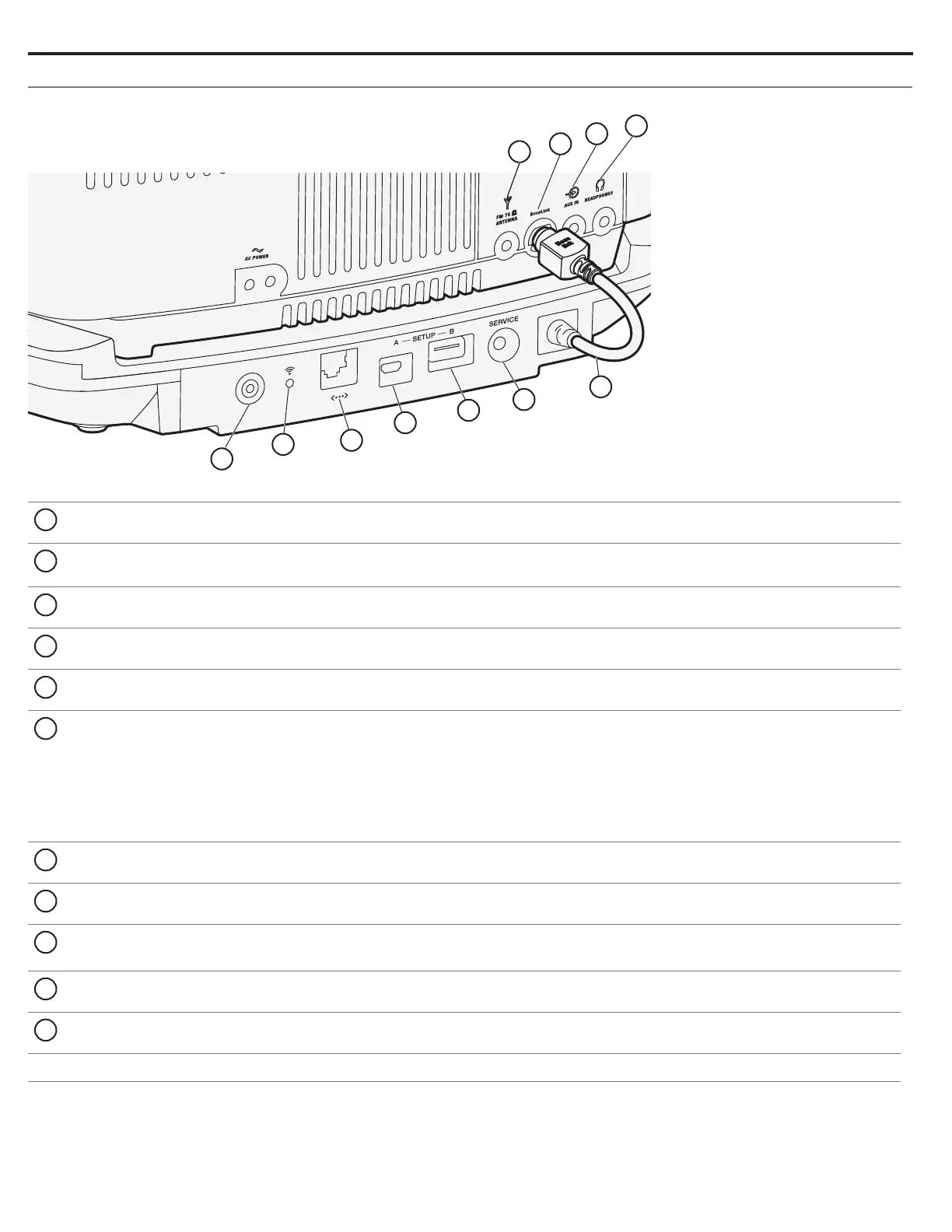

System connections
The connector panel provides connections for external equipment.
5
2
1
3
4
6
7
8
9
10
11
1
ANTENNA
3.5 mm FM antenna (75 ohm) connector (page 20).
2
BoseLink
Input connector for the SoundTouch
™
pedestal.
3
AUX IN
3.5 mm stereo input connector for external sources (page 19).
4
HEADPHONES
A 3.5 mm stereo headphone connector (page 20).
5
Control button
Disables the Wi-Fi
®
capability (page 22), initiates setup mode, or restarts the SoundTouch
™
pedestal (page 22).
6
Wi-Fi
®
indicator:
• Blinking white – Connecting to Wi-Fi network
• Solid white (dim) – System off and connected to Wi-Fi network
• Solid white (bright) – System on and connected to Wi-Fi network
• Blinking amber – Disconnected from Wi-Fi network
• Solid amber – System is in setup mode
• Off – Wi-Fi networking disabled or system is connected to Ethernet
7
Ethernet connector
Used for a wired network connection.
8
SETUP A
USB Micro-B connector for network setup using a computer.
9
SETUP B *
USB Standard A connector reserved for future use.
10
SERVICE
Used for special service functions. Not for customer use.
11
SoundTouch
™
pedestal Bose link cable
Plugs into the Bose link connector. It provides power and control signals to the SoundTouch
™
pedestal.
* The USB connectors are not designed to charge smartphones, tablets, or similar devices.
