Connecting Other Equipment
Rear panel input/outputs
The rear panel of your Wave
®
music system provides connections for external equipment.
Connecting an external FM antenna
The Wave
®
music system power cord includes a built-in FM antenna. If, after adjusting the
position of the power cord, you still experience poor reception, you may connect the system
to an external roof or cable antenna or an FM dipole antenna. An adapter is included for
connecting the system to an external roof or cable antenna, and an external FM dipole
antenna can be ordered through Bose
®
Customer Service. See the phone numbers listed
inside the back cover of this guide.

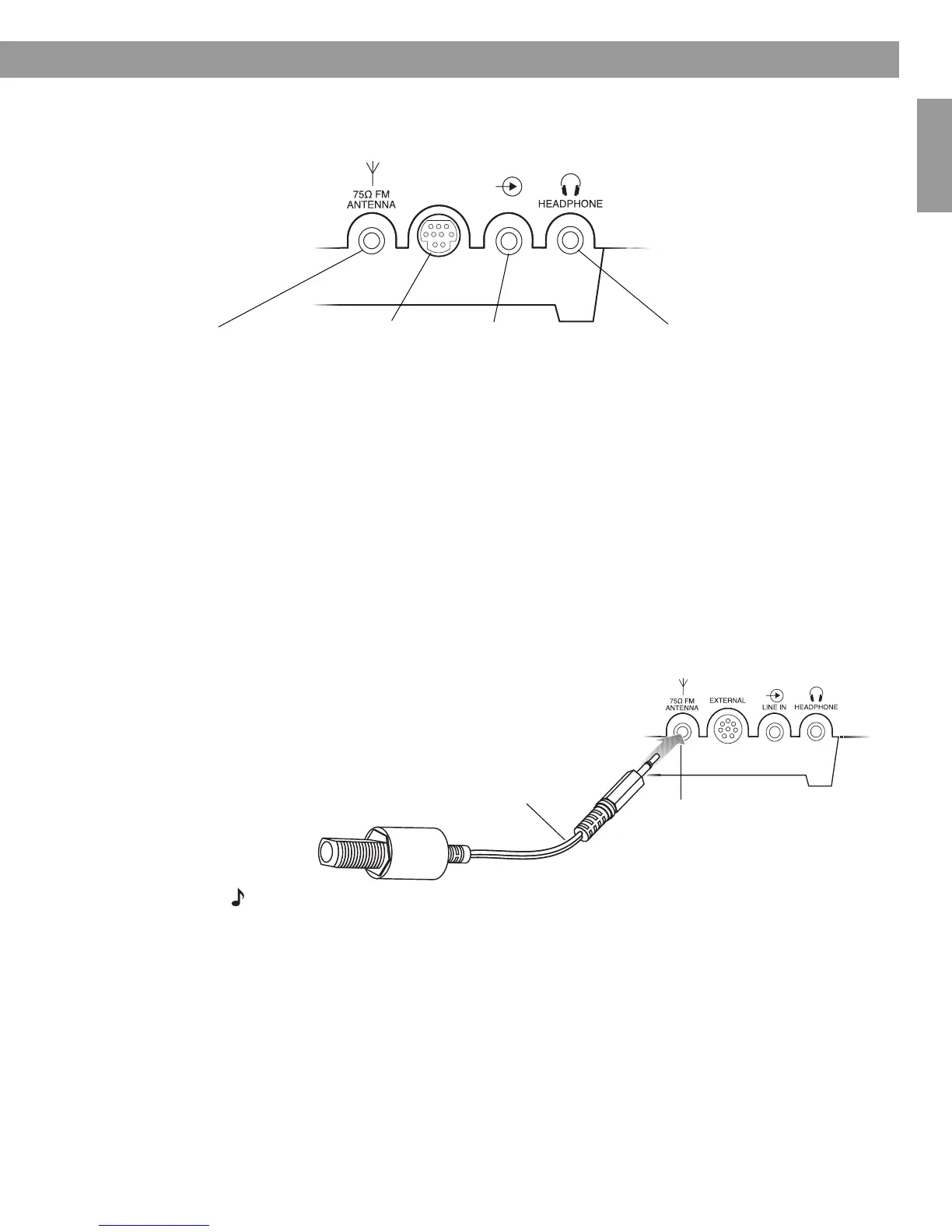

To connect an external roof or cable antenna using the antenna adapter:
• Plug the 3.5 mm (
1
/8") plug of the antenna adapter into the 75Ω FM ANTENNA connector on
the rear panel of your Wave
®
music system.
• Connect the other end of the adapter to your external roof or cable antenna cable.
Note: Connecting the system to an external roof or cable antenna disables the built-in antenna,
and the FM signal will only be received through the external antenna. Disconnecting the external
antenna reactivates the built-in antenna
EXTERNAL
75Ω FM ANTENNA
A 3.5 mm (
1
/8") FM
antenna connector.
Bose
®
link connector
Connects to Bose
®
link-
enabled Lifestyle
®
systems.
AUX IN
A 3.5 mm (
1
/8") stereo input
connector for connecting
external sources.
HEADPHONE
A 3.5 mm (
1
/8") stereo headphone
connector. The Wave
®
music
system speakers are muted when
headphones are connected.
75Ω FM ANTENNA connector
Antenna adapter
