Braun L918IB User Manual

Page 52

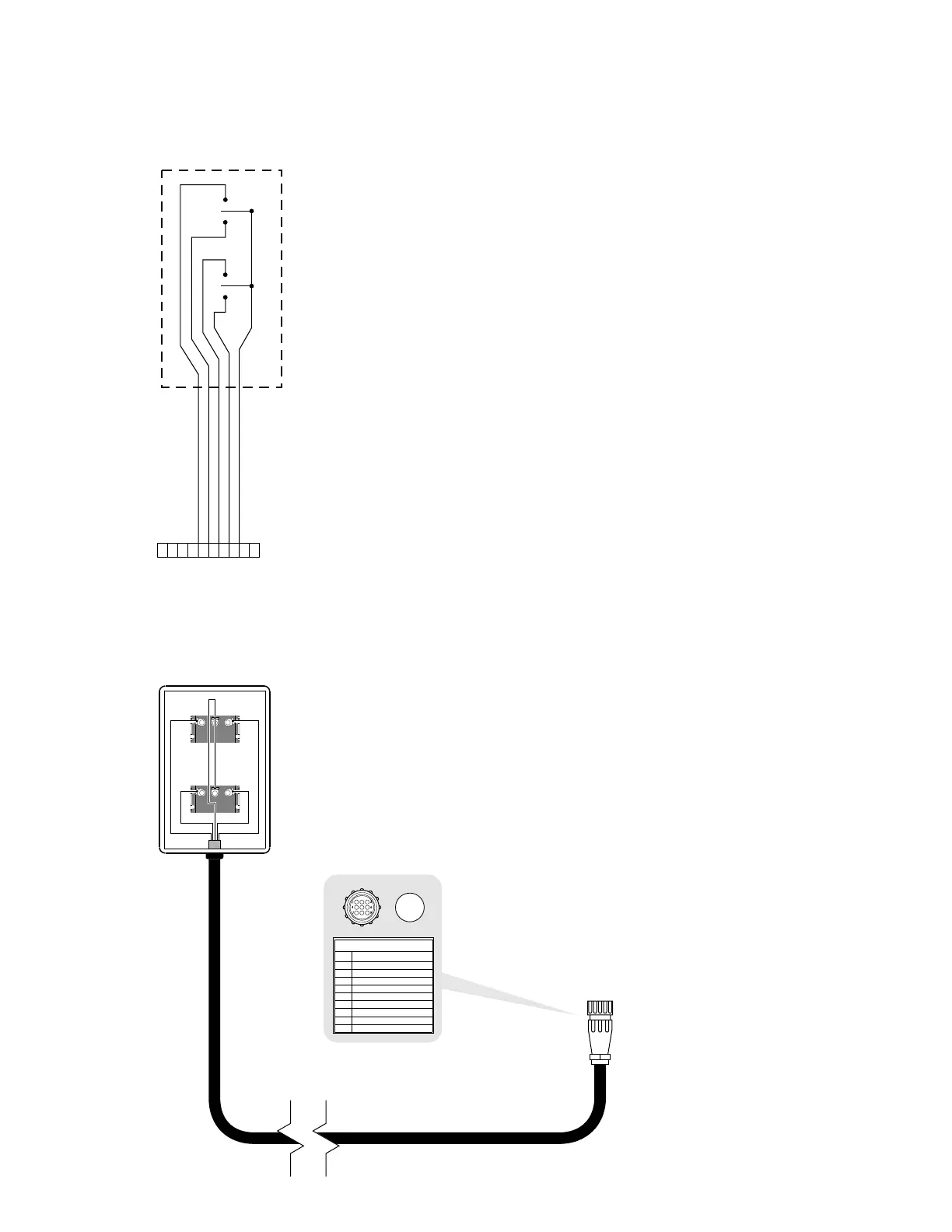

18 Guage Lift Control Box Electrical Schematic
8
7
6 2
1
4 3
5
9
P1
Y (18)
Y (18)
BK (18)
BK (18)
W (18)
W (18)
BU (18) GN (18)
UNFOLD
FOLD
UP
DN
SWITCH BOX
W (18)
BK (18)
BU (18)
OR (18)
GN (18)
GN (18)
LIFT
OR
GN
Fold/Unfold
Switch
GN
BK
W
BU
Up/Down
Switch
NOT USED
GREEN - 6 COND.
WHITE - 6 COND.
BLUE - 6 COND.
ORANGE - 6 COND.
BLACK - 6 COND.
NOT USED
NOT USED
NOT USED
6
5
4
3
2
1
COLORNO.
9-COND WIRE CODE
7
8
9
Switch Box
(As Viewed From Terminal
Side of Switch)
123
456
789
18 Guage Lift Control Box Wiring Diagram
Note: Applicable for 18 guage
wiring harness control box
900-5903AQD. See page 50
for 16 guage harness control
box schematic.
Note: All other elements of
schematic on page 50 are
applicable for all lifts.
Note: Applicable for 18 guage
wiring harness control box
900-5903AQD. See page 51
for 16 guage harness control
box wiring diagram.
Note: All other elements of
wiring diagram on page 51
are applicable for all lifts.
