Features and Controls
Home Generator
Read this Operator’s Manual and Safety Rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.

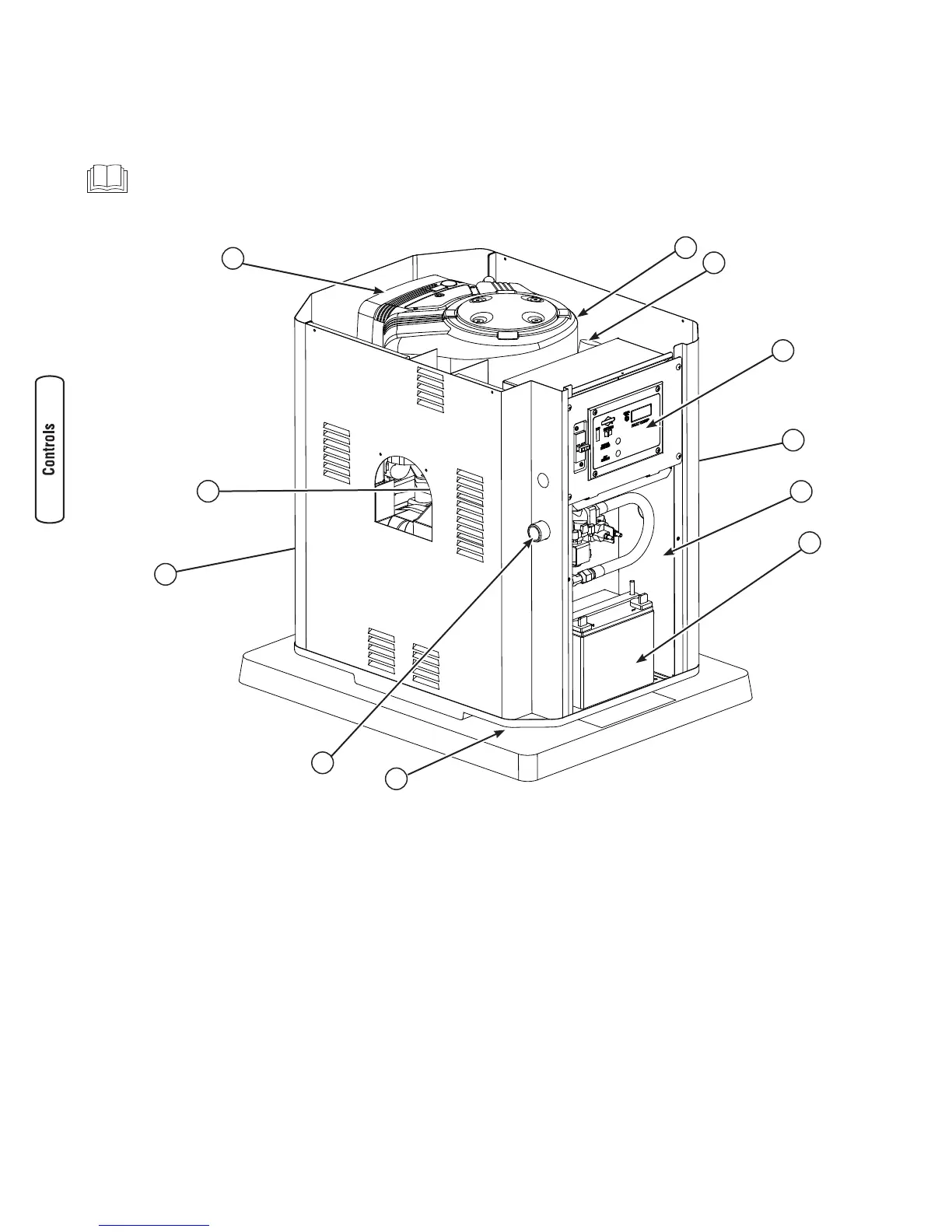

Generator is shown with roof, plastic access cover and
control panel cover removed for clarity.
A - Air Cleaner — Uses a dry type filter element and foam
precleaner to protect engine by filtering dust and debris
out of intake air.
B - Engine Label — Identifies engine model and type.
C - Oil Fill Cap/Dipstick — Check and fill engine with
recommended oil here.
D - Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel on the
next page.
E - Oil Drain Hose — Located inside access cover on side
panel. Provided to facilitate oil changing.
F - Unit Identification Label — Identifies unit by serial
number.
G - Battery (installer supplied) — 12 Volt DC, sealed battery
provides power to start the engine.
H - Lifting Pocket — Provided at each corner for lifting
generator.
J - Fuel Inlet — Attach appropriate fuel supply to generator
here.
K - Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
L - Oil Filter — Filters engine oil to prolong generator life.
D
A
C
E
B
G
K
H
J
L
F
