"J·:
~;
..
?'
··
·
[§]

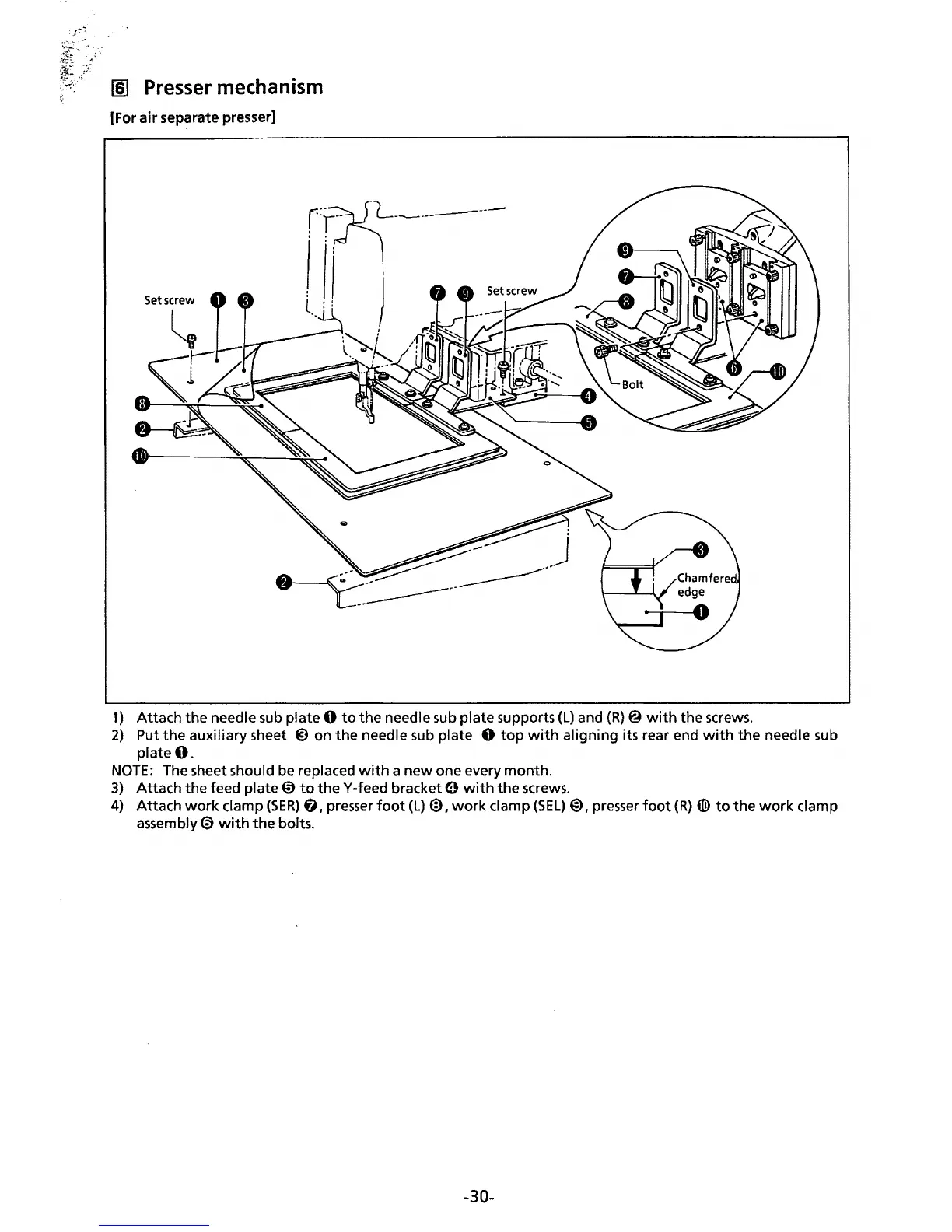

Presser mechanism
[For
air
separate presser]
1)
Attach
the
needle sub
plate
0
to
the
needle sub plate supports
(L)
and (R)@
with
the
screws.
2)
Put
the
auxiliary sheet @ on
the
needle sub plate 0
top
with
aligning
its rear end
with
the
needle sub
plateO.
NOTE:
The sheet should be replaced
with
a
new
one every
month.
3)
Attach
the
feed plate 0
to
theY-feed
bracket 0
with
the
screws.
4)
Attach
work
clamp
(SER)
fj
I presser
foot
(L)@ I
work
clamp (SEL)@ I presser
foot
(R)
4ID
to
the
work
clamp
assembly®
with
the
bolts.
-30-
