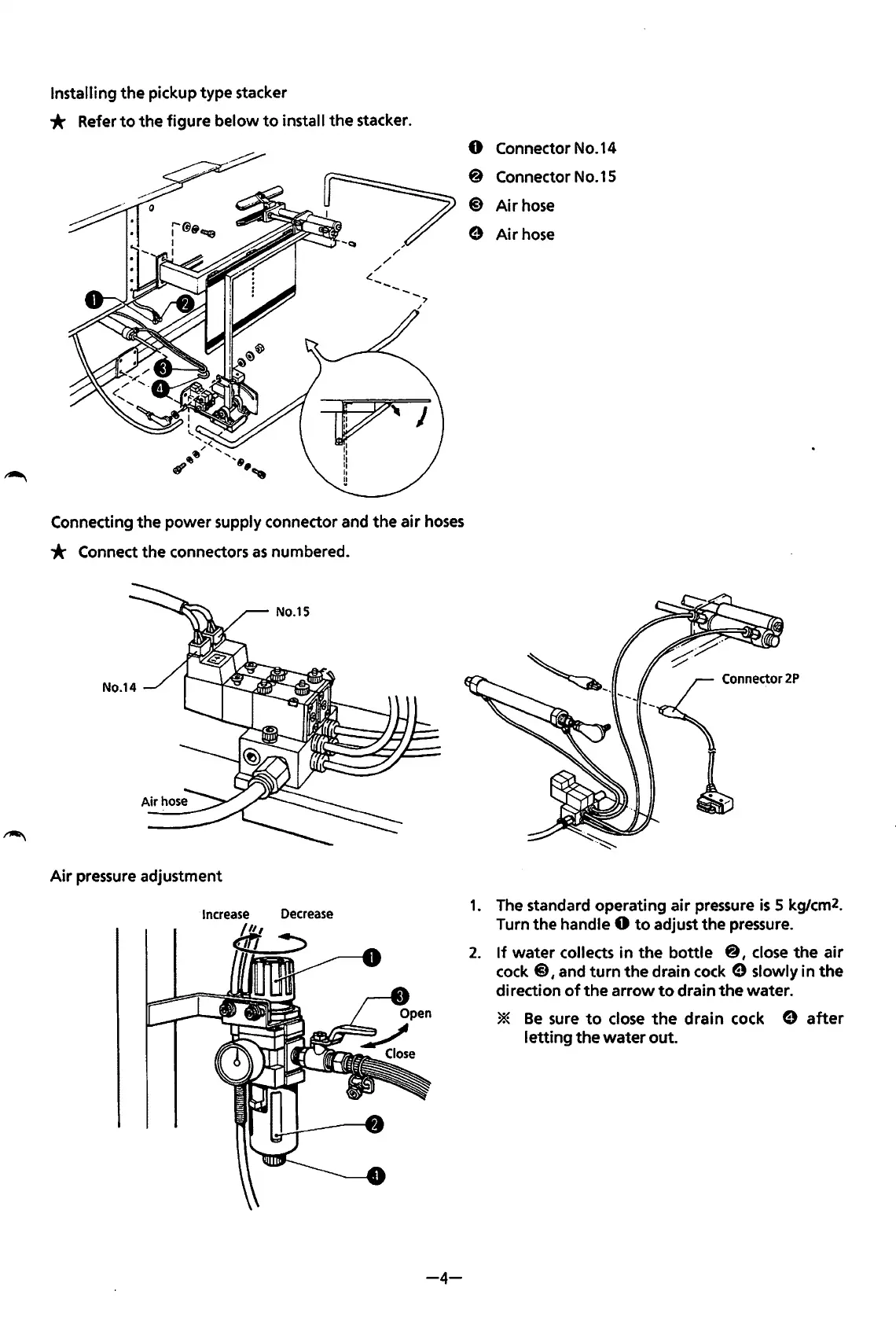

Installing
the
pickup type stacker
* Refer
to
the
figure below
to
install the stacker.
Connecting
the
power supply connector and the
air
hoses
* Connect the connectors
as
numbered.
Air
pressure adjustment
Increase
Decrease
-4-
0 Connector No.
14
@ Connector No.15
@)
Airhose
9 Airhose
1.
The standard operating
air
pressure
is
5 kg/cm2.
Turn
the
handle 0
to
adjust the pressure.
2.
If
water
collects in
the
bottle
@
1
close
the
air
cock @ 1 and
turn
the
drain cock e slowly in
the
direction
of
the
arrow
to
drain
the
water.
*
Be
sure
to
close
the
drain
cock 9
after
letting
the
water
out.
