(2)
Flush

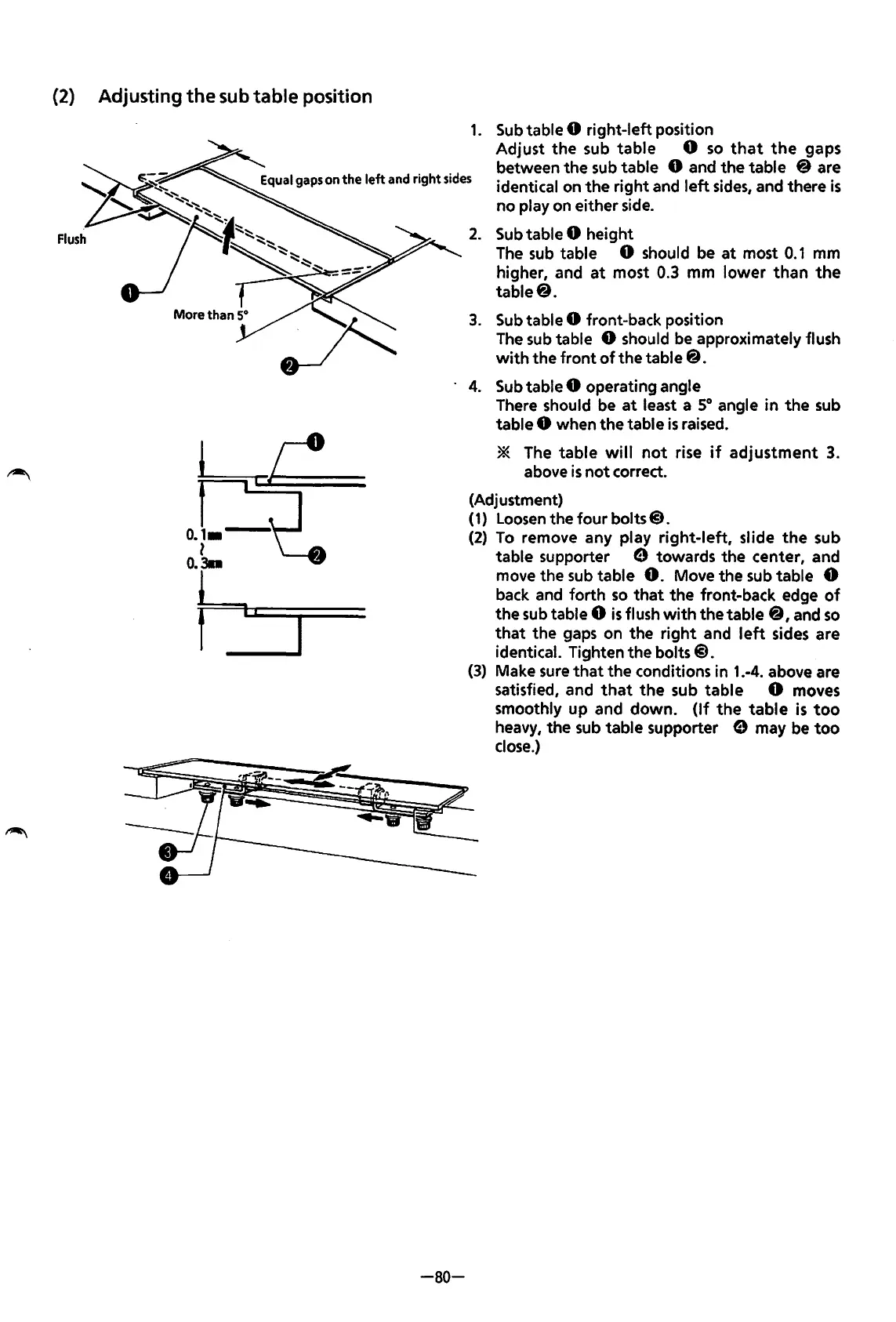

Adjusting
the
sub table position
1.
Sub table 0 right-left position
Adjust
the
sub
table
0 so
that
the
gaps
between
the
sub table 0 and
the
table @ are
Equal
gaps
on
the left
and
right
sides
identical on
the
right and left sides, and there
is
no play on either side.
2.
Sub table 0 height
The sub table
0 should be
at
most
0.1
mm
higher, and
at
most 0.3
mm
lower
than
the
table@.
3.
Sub table 0 front-back position
The sub table
0 should be approximately flush
with
the
front
of
the
table@.
·
4.
Sub table 0 operating angle
-80-
There should be
at
least a
5°
angle
in
the
sub
table
0 when
the
table
is
raised.
* The
table
will
not
rise if
adjustment
3.
above
is
not correct.
(Adjustment)
(1)
Loosen
the
four bolts@.
(2)
To
remove any play right-left, slide
the
sub
table supporter
e towards
the
center, and
move
the
sub table
0.
Move
the
sub table 0
back and forth so
that
the
front-back edge
of
the
sub table 0
is
flush with
the
table@,
and so
that
the
gaps on
the
right and left sides
are
identical. Tighten
the
bolts@.
(3)
Make sure
that
the
conditions
in
1.-4. above are
satisfied, and
that
the
sub
table
0 moves
smoothly up and down.
(If
the
table
is
too
heavy,
the
sub table supporter e may be
too
close.)
