6

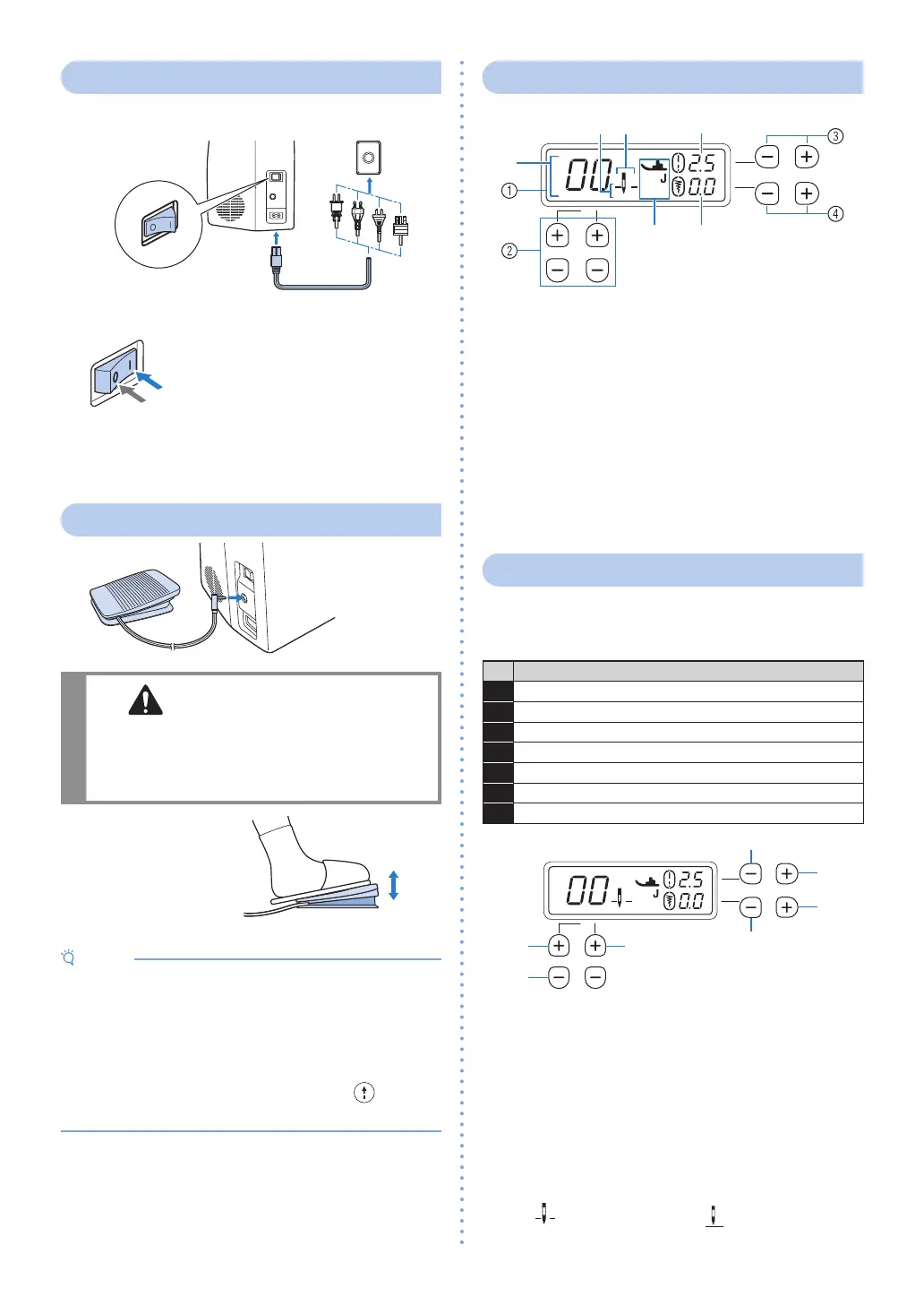

Power supply
1
Insert the plug into a household electrical outlet�
1
2
2
Turn on the machine�
Press the “I” mark on the main
power switch to turn on the main
power, sewing light, and LCD�
To turn off the machine, press
the “O” mark on the main power
switch�
ON
OFF
X
The machine will make a sound� This is not a
malfunction�
Foot controller
Insert�
CAUTION
• When inserting the foot controller plug,
be sure to turn off the machine in order to
prevent the machine from accidentally being
started�
Slowly depress the foot
controller to start sewing,
and adjust the sewing
speed by changing the
pressing force�
Slower
Faster
Note
• (For U�S�A� only)
Foot controller: Model T
This foot controller can be used on the machine
with product code 888-N00/N02/N20/N22/
N40/N42� The product code is mentioned on the
machine rating plate�
• When the foot controller is connected,
(“Start/
Stop” button) is disabled�
★
Operation panel
5 3
42
1
6
1 LCD (Liquid crystal display)
The selected stitch (1), presser foot that should be used
(2), stitch length in millimeters (3), stitch width in
millimeters (4), needle stop position (5), and single/twin
needle mode (6) are displayed�
2 Stitch selection keys (page 15)
Press keys to change the stitch pattern�
3 Stitch length keys (page 15)
Press keys to change the stitch length of the selected stitch
pattern�
4 Stitch width keys (page 15)
Press keys to change the stitch width of the selected stitch
pattern�
Settings/Functions
You can change settings of the following functions�
The settings are stored even when the power switch is
turned off�
No� Function
1 Needle stop position
2 Initial needle position (left / middle (center))
3 Operation beep ★
4 Maximum sewing speed
5 Automatic reverse / reinforcement stitching
6 Needle mode (single needle / twin needle)
7 Stitch adjustment ★
1
2 6
3
4
5
7
1 Changing the needle stop position
You can change the needle stop position to either
the lowered (in the fabric) or raised position�
(Default: Lowered position)
1
Turn off the machine�
2
Holding down 1, turn on the machine�
3
After the machine has turned on, release 1 �
X
The needle stop position is changed�
: Lowered position
: Raised position
★
: Only for some models�
