Brother DCP-8250DN Service Manual

3-31
Confidential
9.9 ADF unit

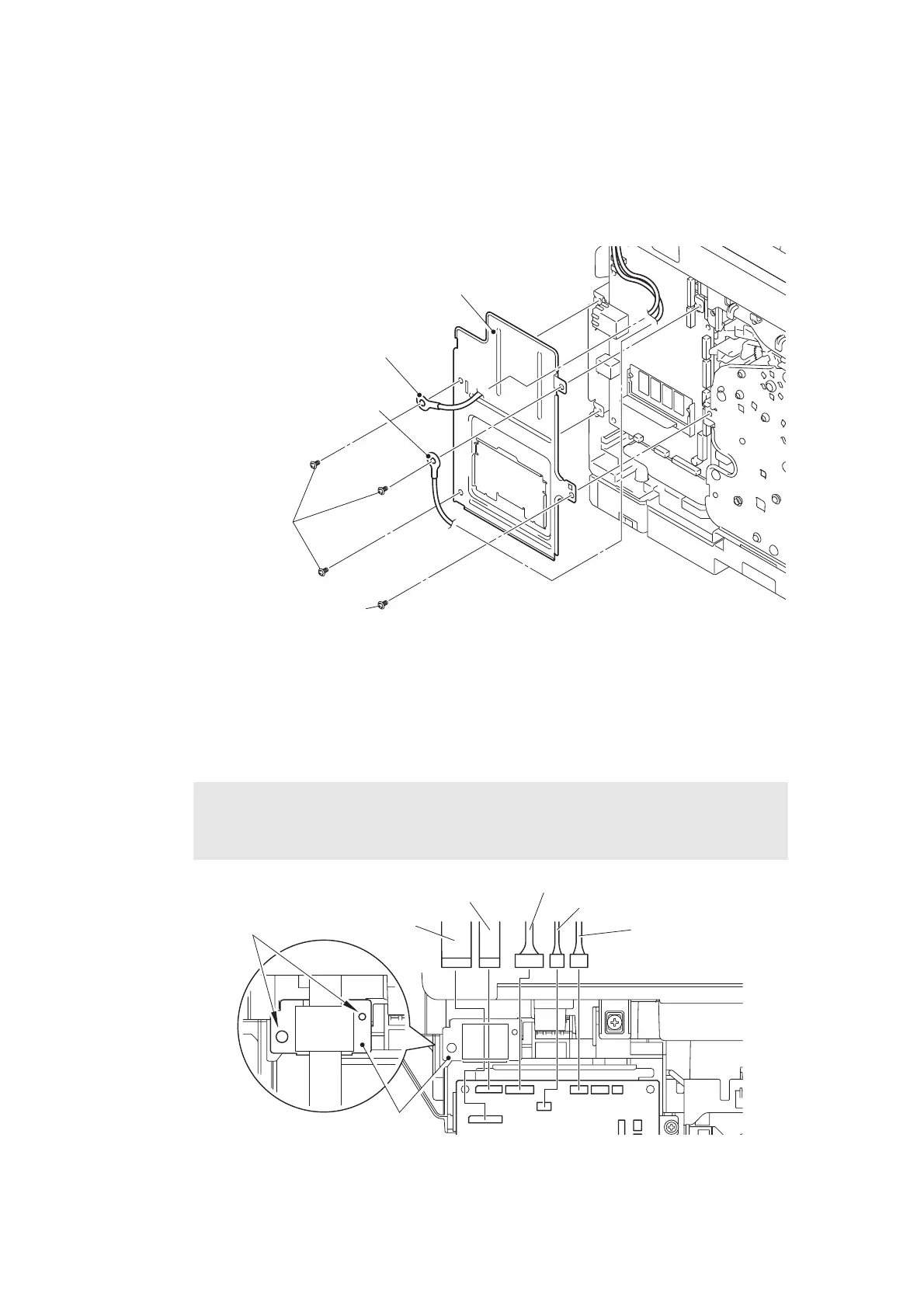

(1) Remove the four taptite cup S M3x8 SR screws to remove the ADF earth harness,
document scanner earth harness, and main shield cover plate from the machine.
The main shield cover plate is not provided for models with a tray capacity of 500 sheets.
Therefore, remove the screw securing the ADF earth harness, the screw securing the
document scanner earth harness, and screw A.
Fig. 3-26
(2) Disconnect the second side CIS flat cable, first side CIS flat cable, ADF cover/document
detection sensor harness, second side document scanning position sensor harness, and
ADF motor harness from the main PCB ASSY, and release these harnesses from the
securing fixtures.
(3) Remove the core holder from the two pins on the machine, and pull out the core holder
from the second side CIS flat cable and first side CIS flat cable .
Fig. 3-27
Harness routing: Refer to “1.Main PCB ASSY”.
Note:
• The second side CIS flat cable and the second side document scanning position
sensor harness are provided for duplex scanning models only.
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR “A”
ADF earth harness
Document scanner earth harness
Main shield cover plate
(The main shield cover plate is not provided
for models with a tray capacity of 500 sheets.)
First side CIS flat cable
Second side CIS flat cable
ADF cover/document detection sensor harness
Second side document scanning position
sensor harness
ADF motor harness
Pins
Core holder

Brother DCP-8250DN Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
PictBridge	No
Scan speed	2.68 sec/page
Dimensions (WxDxH)	491 x 415 x 477 mm
All-in-one functions	Copy, Print, Scan
Networking standards	IEEE 802.11b, IEEE 802.11g
Color all-in-one functions	Scan
Printing colors	Black
Maximum duty cycle	- pages per month
Recommended duty cycle	1000 - 5000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 9, 16, 25
Time to first copy (black, normal)	10.5 s
Copy speed (black, normal quality, A4)	40 cpm
Scan to	E-mail, E-mail Server, File, FTP, Image, OCR, USB
Scan drivers	ISIS, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	Legal (216 x 356) mm
Output color depth	24 bit
Image formats supported	BMP, JPG
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Paper input type	Paper tray
Total input capacity	500 sheets
Total output capacity	150 sheets
Maximum input capacity	1050 sheets
Maximum number of input trays	2
Auto document feeder (ADF) input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed, Recycled paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Business cards, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Display	TFT
Control type	Touch
Display diagonal	4.9 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP, EAP-TLS, EAP-TTLS, MD5, PEAP, SSL/TLS, TKIP, WPA-AES, WPA-PSK, WPA2-PSK
Processor family	Star Sapphire
Maximum internal memory	384 MB
Sound power level (standby)	37 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.45 W
Power consumption (standby)	9.8 W
Power consumption (PowerSave)	350 W
Power consumption (average operating)	694 W
Package weight	21.900 g
Sustainability certificates	ENERGY STAR
